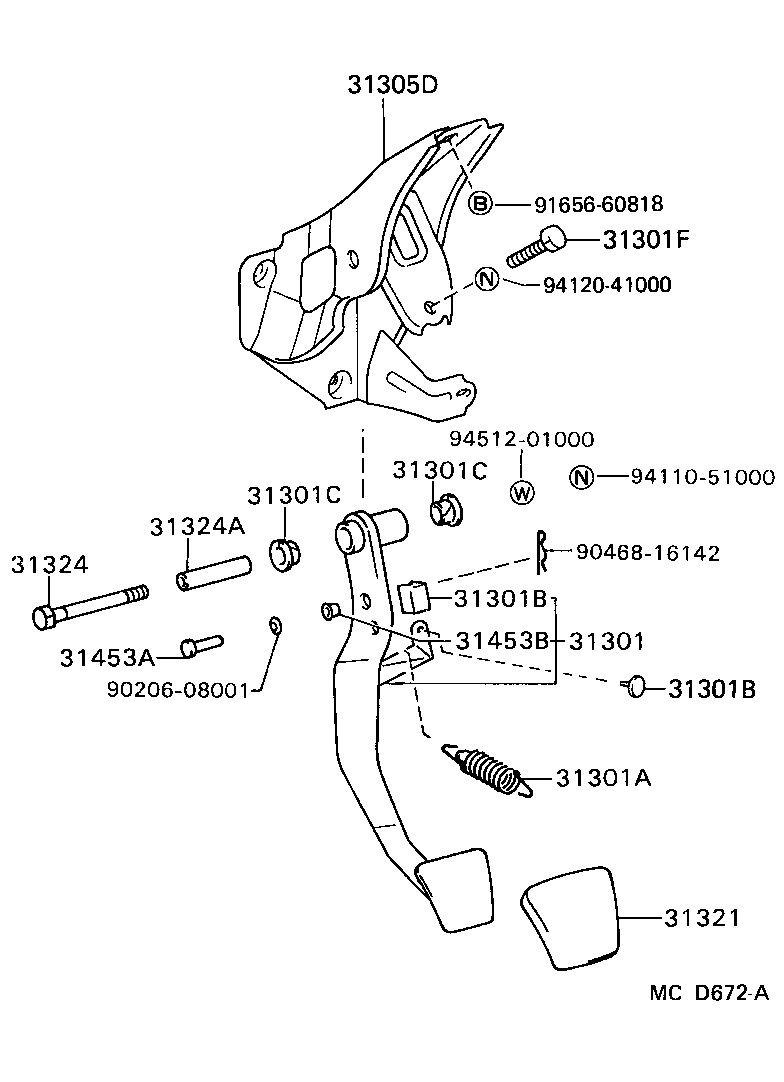

Toyota 31321-14020 PAD, CLUTCH PEDAL
31321-14020
Part overview:
OEM reference 31321-14020 for PAD, CLUTCH PEDAL.
This page currently lists 66 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 31321 |
| Manufacturer Part Number | 31321-14020 |
| Part Description | PAD, CLUTCH PEDAL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 31321-14020 |
| Catalog | 141410 |
| PNC | 31321 |
| PNC Group | PAD, CLUTCH PEDAL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| TUNDRA | 2004.08 - |
GSK30..6F
|
841420 |
| TUNDRA | 2002.08 - 2004.08 |
VCK30,40..5F
|
841420 |
| SOLARA | 2002.07 - 2002.12 |
ACV20..MTM
|
286410 |
| HILUX 2WD | 2001.06 - |
LN200,RZN200
|
672350 |
| LAND CRUISER | 1999.08 - 2008.08 |
FZJ79..GEN..IV;FZJ71,78..LHD..GEN
|
781330 |
| LAND CRUISER | 1999.08 - 2007.01 |
HZJ78..STD;FZJ78..GCC;HZJ79..GCC,GEN;HZJ79..ARL..IV;FZJ71,78..RHD..GEN;FZJ71,HDJ79
..ARL,GCC;FZJ74,79,HDJ78,HZJ71..CBU
|
781330 |
| LAND CRUISER | 1999.08 - 2006.05 |
FZJ78,79..ARL
|
781330 |
| LAND CRUISER | 1999.08 - 2001.08 |
HZJ78..LX;HZJ79..ARL..CBU
|
781330 |
| TUNDRA | 1999.02 - 2002.08 |
VCK30,40..5F
|
841420 |
| CAMRY (JPP) | 1998.08 - |
SXV20..JPP..MTM
|
281460 |
| SOLARA | 1998.06 - 2002.07 |
ACV20,MCV20,SXV20..MTM
|
286410 |
| CAMRY (NAP) | 1996.07 - |
MCV20,SXV20..NAP..MTM
|
283460 |
| 4RUNNER | 1995.11 - 2000.08 |
RZN18#,VZN185..5F
|
671460 |
| RAV4 | 1995.11 - |
SXA1#..MTM
|
662410 |
| PASEO | 1995.08 - |
EL54..MTM
|
144420 |
| HILUX 2WD | 1995.03 - 2001.06 |
YN80,85..ARL,GEN;LN8#,9#,RN8#,90,YN81,86,92..MTM
|
672350 |
| TACOMA | 1995.01 - 2000.09 |
RZN161,171,VZN160,170..5F
|
674460 |
| TACOMA | 1995.01 - 2000.09 |
RZN140,150,VZN150..5F
|
675460 |
| TERCEL | 1994.09 - |
EL53..MTM
|
141450 |
| CELICA | 1993.09 - |
AT200,ST204..MTM
|
252470 |
| LAND CRUISER | 1993.05 - 2004.05 |
FZJ73,75..(PIC,SOT)..GEN..EFI
|
781330 |
| LAND CRUISER | 1993.05 - 2001.06 |
FZJ70,75..GEN..CBU..EFI
|
781330 |
| LAND CRUISER | 1993.05 - 2000.07 |
HZJ70,75..RHD..(PIC,SOT)..GEN..CBU
|
781330 |
| LAND CRUISER | 1993.05 - 1999.11 |
FZJ75,HZJ75..SA
|
781330 |
| LAND CRUISER | 1993.05 - 1999.08 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,G
EN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT
)..(GCC,GEN)..(CBR,DSL)
|
781330 |
| SUPRA | 1993.05 - 1998.08 |
JZA80..MTM
|
291430 |
| LAND CRUISER | 1993.05 - 1996.04 |
KZJ7#,LJ7#,RJ7#..HT
|
781330 |
| LAND CRUISER | 1993.05 - 1995.01 |
FZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F
|
781330 |
| LAND CRUISER | 1993.05 - 1994.01 |
PZJ70,73;PZJ75..4F;RJ70..SOT
|
781330 |
| T100 | 1992.08 - |
RCK10,VCK1#,2#..MTM
|
841410 |
| 4-RUNNER TRUCK (NAP) | 1992.02 - 1995.01 |
RN101,110,VZN100,110..5F
|
674450 |
| LEXUS SC300/400 | 1991.11 - 1997.09 |
JZZ31..5F
|
321440 |
| CAMRY (NAP) | 1991.09 - 1996.07 |
SXV10,VCV10..NAP..MTM
|
283450 |
| 4-RUNNER TRUCK (NAP) | 1991.09 - 1995.01 |
RN80,90..W
|
675450 |
| LEXUS ES300 | 1991.07 - 1993.08 |
VCV10..MTM
|
284450 |
| CAMRY (JPP) | 1991.06 - 1996.08 |
SXV10,VCV10..JPP..MTM
|
281450 |
| PASEO | 1991.04 - 1995.08 |
EL44..MTM
|
144410 |
| TERCEL | 1990.09 - 1994.09 |
EL42..MTM
|
141440 |
| SUPRA | 1990.08 - 1993.05 |
MA70..5F
|
291420 |
| PREVIA | 1990.01 - 1993.08 |
TCR10,20..MTM
|
652440 |
| LAND CRUISER | 1990.01 - 1993.05 |
FJ7#,FZJ7#,HJ75,HZJ7#,LJ7#,PZJ7#,RJ7#..MTM
|
781330 |
| CELICA | 1989.09 - 1993.09 |
AT180,ST18#..MTM
|
252460 |
| SUPRA | 1989.08 - 1990.08 |
MA70..5F..TWC;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA
|
291420 |
| LEXUS ES250 | 1989.06 - 1991.07 |
VZV21..5F
|
284440 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1995.11 |
RN10#,110,13#,VZN10#,110,13#..5F
|
671450 |
| HILUX 2WD | 1988.08 - 1995.03 |
LN8#,90,RN125,8#,90,YN8#,9#..MTM
|
672350 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1995.01 |
RN121,8#,90,VZN85,9#..MTM
|
672450 |
| CAMRY (JPP) | 1988.08 - 1991.06 |
SV2#,VZV21..5F
|
281440 |
| TERCEL | 1988.08 - 1990.09 |
EL31..MTM
|
141430 |
| VAN | 1988.08 - 1990.01 |
YR2#,3#..5F
YR2#,3#
|
651430 |
| SUPRA | 1988.08 - 1989.08 |
MA70..5F
|
291420 |
| CAMRY (NAP) | 1988.07 - 1991.09 |
SV21,VZV21..5F
|
283440 |
| CAMRY | 1987.10 - 1988.08 |
SV2#,VZV21..5F
|
281430 |
| CELICA | 1987.08 - 1989.08 |
ST16#..5F
|
252450 |
| TERCEL | 1986.08 - 1988.08 |
EL31..MTM
|
141410 |
| CAMRY | 1986.08 - 1987.10 |
SV21..5F
|
281430 |
| SUPRA | 1986.01 - 1988.08 |
MA70..5F
|
291410 |
| CELICA | 1985.08 - 1987.08 |
ST16#..5F
|
252440 |
| LAND CRUISER | 1984.11 - 1987.07 |
BJ70
|
781420 |
| CRESSIDA | 1984.08 - 1987.08 |
MX73..MTM
|
311450 |
| CRESSIDA | 1984.04 - 1984.07 |
MX63..MTM
|
311440 |
| 4-RUNNER TRUCK | 1983.08 - 1989.03 |
LN5#,6#,RN5#,6#,7#,VZN6#..MTM
|
671440 |
| VAN | 1983.08 - 1988.08 |
YR2#,3#..5F
YR2#,3#
|
651420 |
| CAMRY | 1983.01 - 1986.07 |
CV10,SV11..5F
|
281420 |
| CELICA | 1982.07 - 1985.12 |
MA61,RA6#..5F
|
252430 |
| CELICA | 1981.08 - 1985.12 |
MA61,RA6#..5F
|
252430 |

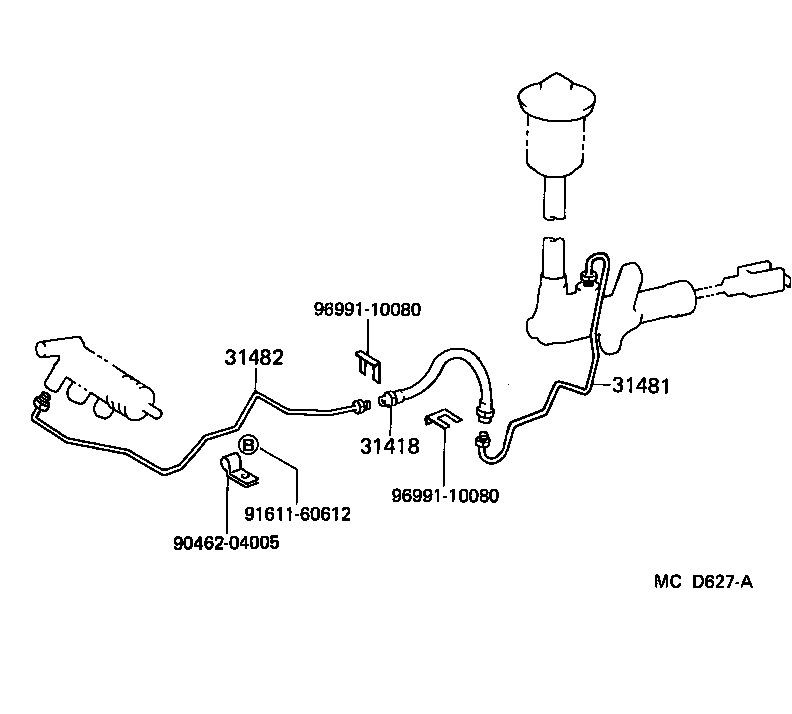

Related Parts
| Part Number | Reference |
|---|---|
| 31301-16070 | PEDAL SUB-ASSY, CLUTCH |
| 31481-16030 | TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE |
| 31482-10010 | TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE |
| 47131-10010 | CUSHION, NO.1(FOR CLUTCH PEDAL) |
| 55107-16050 | SUPPORT SUB-ASSY, CLUTCH PEDAL |
| 90101-10015 | SHAFT, CLUTCH PEDAL |
| 90101-10369 | BOLT(FOR CLUTCH PEDAL STOPPER) |
| 90240-08006 | PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 90386-08002 | BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) |
| 90386-13192 | BUSH(FOR CLUTCH PEDAL) |
| 90387-10003 | COLLAR, CLUTCH PEDAL SHAFT |
| 90507-14023 | SPRING(FOR CLUTCH PEDAL) |
Toyota part number 31321-14020 corresponds to PAD, CLUTCH PEDAL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
