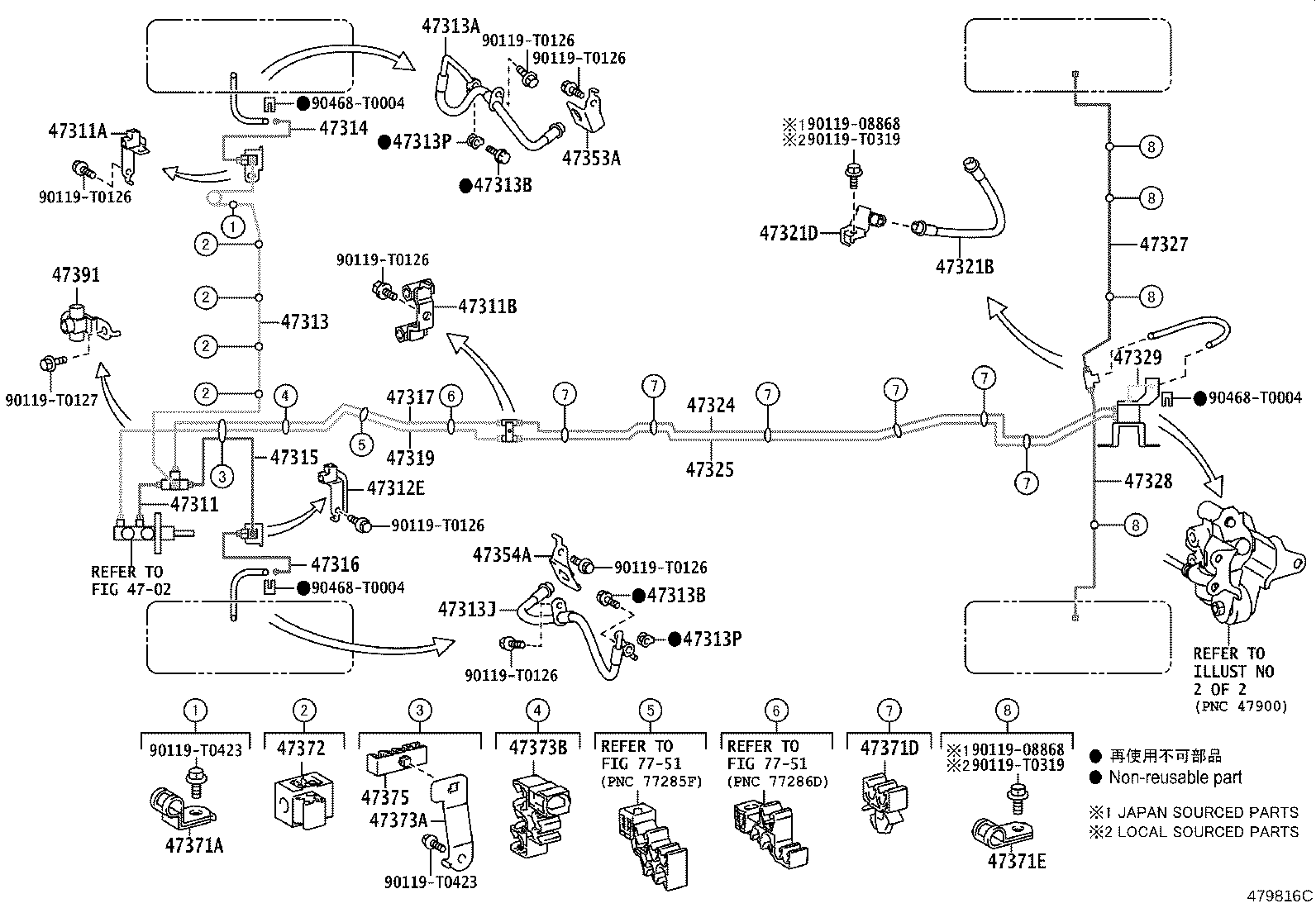

Toyota 90949-T1032 CLAMP, BRAKE TUBE, NO.6
90949-T1032
Part overview:
OEM reference 90949-T1032 for CLAMP, BRAKE TUBE, NO.6.
This page currently lists 49 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47371B |
| Manufacturer Part Number | 90949-T1032 |
| Part Description | CLAMP, BRAKE TUBE, NO.6 |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 90949-T1032 |
| Catalog | 672390 |
| PNC | 47371B |
| PNC Group | CLAMP, BRAKE TUBE, NO.6 |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (DOUBLE CAB) | 2024.08 - 2024.11 |
GUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - |
GUN112,12#,13#,TGN120,121,136..RHD
GUN11#,122,125,126,135,LAN125,TGN11#,12#,136..LHD
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
GUN126..S..IV3;GUN136..6F..SA;GUN136..RHD..6FC;GUN126..H..MHV..IV3;GUN126,TGN121..
GGN125,GUN122,125,126,13#,LAN125,TGN12#,136..LHD
RHD..(6F,6FC)..CBU;GGN125,GUN120,121,122,125,135,TGN136..RHD
|
6733E0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.12 |
GUN125,135..KEN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.12 |
GUN125,126..KEN
GUN125,126..GHA
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.10 |
GUN122,125,126,13#,TGN120,136..RHD..SA
GUN122,125,126,135,LAN125,TGN121,126,136..LHD..(AGTP,SAP)
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.10 |
GGN125,GUN125,126,13#,TGN136..RHD..SA
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..LHD..(AGTP,SAP)
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.09 |
GUN126..IND
GUN126..MMR
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.08 |
GUN125..MA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.08 |
GUN125,126..MA
GUN126..CAMP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
GUN112,12#,13#,TGN110,121,XPN135..RHD..THP
GUN11#,122,125,126,135,TGN11#,12#..LHD..THP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GUN126..MHV..ARL;GUN12#,13#,TGN121..RHD..THP..(DCRL,HTWC)
TGN126..THP..(GCC,GEN,LA);GGN125,GUN122,125,126,13#,TGN120,121,136..LHD..THP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - |
GUN122,126,TGN121..PKN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - |
GUN126..PKN
|
6733D0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.03 |
GUN125,135..KEN
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.03 |
GUN125,126..KEN
GUN125,126..GHA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.01 |
GUN122,125,126,13#,TGN120,136..RHD..SA
GUN122,125,LAN125,TGN121..LHD..SA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.01 |
GGN125,GUN125,126,13#,TGN136..RHD..SA
GUN122,125,126,135,LAN125,TGN121,126,136..LHD..SA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.10 |
GUN125,126,135,TGN126,136..AGTP
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.10 |
GGN125,GUN125,126,13#,TGN126,136..AGTP
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.09 |
GUN126..IND
GUN126..MMR
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.08 |
GUN125..MA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.08 |
GUN125,126..MA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN112,12#,13#,TGN110,121..RHD..THP
GUN11#,122,125,126,135,TGN11#,12#..LHD..THP
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GUN12#,13#,TGN121..RHD..THP
GGN125,GUN122,125,126,13#,TGN12#,136..LHD..THP
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - |
GUN122,126,TGN121..PKN
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - |
GUN126..PKN
|
6733C0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.03 |
GUN122,125,126,13#,TGN120,136..RHD..(KEN,SA)
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.03 |
GGN125,GUN125,126,13#,TGN136..RHD..(KEN,SA)
GUN122,125,126,135,LAN125,TGN121,126,136..LHD..(GHA,MMR,SA)
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.01 |
GUN122,126,TGN121..PKN
GUN122,125,LAN125,TGN121..LHD..SA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.01 |
GUN126..PKN
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.10 |
GUN125,126,135,TGN126,136..AGTP
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.10 |
GGN125,GUN125,126,13#,TGN126,128,13#..AGTP
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.09 |
GUN126..IND
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.08 |
GUN125..MA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.08 |
GUN125,126..MA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN112,12#,13#,TGN110,121..RHD..THP
GUN11#,122,125,126,135,TGN11#,12#..LHD..THP
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GUN12#,13#,TGN121..RHD..THP
GGN125,GUN122,125,126,13#,TGN120,121,126,136..LHD..THP
|
6733B0 |
| HILUX | 2020.06 - 2023.01 |
GGN125,GUN112,122,125,126,13#,LAN125,TGN11#,120,121,126,136..LHD..(MMD,SD,SS,SX,TD
,TS,TX)
|
6723A0 |
| HILUX | 2020.06 - 2022.01 |
GGN125,GUN112,12#,13#,TGN110,120,121,136..RHD
|
6723A0 |
| HILUX | 2020.06 - 2021.11 |
GUN125,126..GHA
|
6723A0 |
| HILUX | 2020.06 - 2021.10 |
GGN125,GUN125,126,13#,TGN126,128,13#..AD,AS
|
6723A0 |
| HILUX | 2019.06 - 2021.05 |
TGN136..SSC
|
672390 |
| HILUX | 2017.02 - 2020.05 |
GUN125..TDC..6FC..L..GEN
EXHAUST EMISSION CONTROL-EURO 6
|
672390 |
| HILUX | 2015.05 - 2021.05 |
GUN135..L..MA;TGN136..RHD..(SDC,TDC,TXT);GUN135..RHD..(ARL,GEN,KEN,SA,TH);GGN12#,1
35,GUN112,12#,136,KUN112,12#,13#,TGN110,120,121,126..RHD
|
672390 |
| HILUX | 2015.05 - 2020.10 |
GGN125,GUN112,122,125,126,13#,KUN112,12#,13#,LAN125,TGN11#,12#,13#..LHD
|
672390 |
| HILUX | 2015.05 - 2018.08 |
KUN122..LHD..SSC
SRS AIR BAG-WITHOUT
|
672390 |
| HILUX | 2015.05 - 2018.07 |
TGN136..SSC
|
672390 |
| HILUX | 2015.05 - 2017.08 |
TGN11#,120,121..L..GCC
SRS AIR BAG-WITHOUT
|
672390 |
Related Parts
| Part Number | Reference |
|---|---|
| 04477-04010 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| 31478-0D040 | CAP, BLEEDER PLUG(FOR LSPV) |
| 44050-0K010 | ACTUATOR ASSY, BRAKE |
| 44050-0K020 | ACTUATOR ASSY, BRAKE |
| 44050-0K030 | ACTUATOR ASSY, BRAKE |
| 44050-0K060 | ACTUATOR ASSY, BRAKE |
| 44050-0K070 | ACTUATOR ASSY, BRAKE |
| 44050-0K080 | ACTUATOR ASSY, BRAKE |
| 44050-0K090 | ACTUATOR ASSY, BRAKE |
| 44050-0K100 | ACTUATOR ASSY, BRAKE |
| 44050-0K110 | ACTUATOR ASSY, BRAKE |
| 44050-0K120 | ACTUATOR ASSY, BRAKE |
Toyota part number 90949-T1032 corresponds to CLAMP, BRAKE TUBE, NO.6. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
