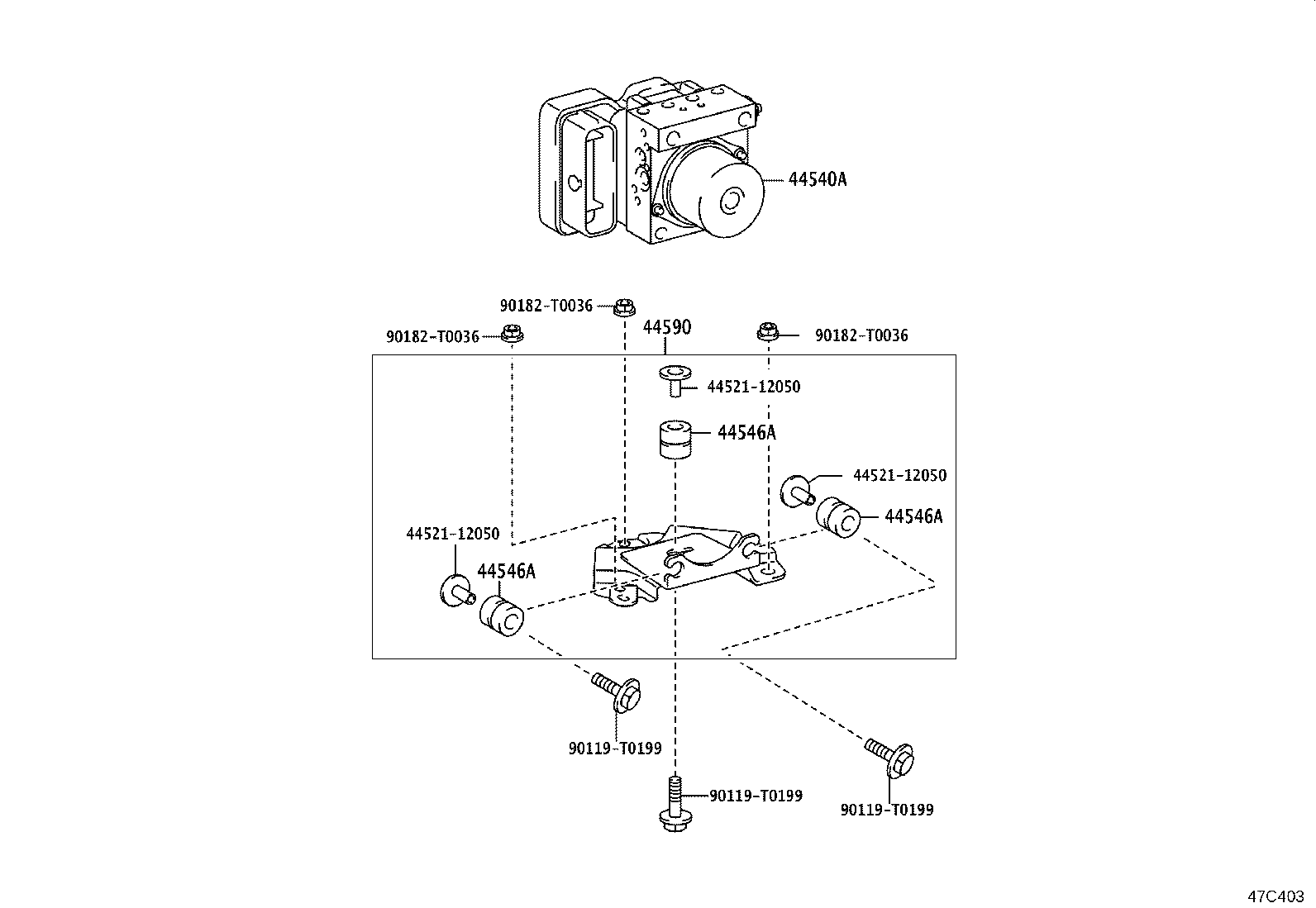

Toyota 44590-0K200 BRACKET ASSY, BRAKE ACTUATOR
44590-0K200
Part overview:
OEM reference 44590-0K200 for BRACKET ASSY, BRAKE ACTUATOR.
This page currently lists 22 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 44590 |
| Manufacturer Part Number | 44590-0K200 |
| Part Description | BRACKET ASSY, BRAKE ACTUATOR |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 44590-0K200 |
| Catalog | 672390 |
| PNC | 44590 |
| PNC Group | BRACKET ASSY, BRAKE ACTUATOR |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (SCB/XTR) | 2024.08 - |
GUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,L
TGN121..GEN
A)
VSC-WITH(*HSAC & *TSC)
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
TGN126..THP..L..(GCC,LA);TGN126..THP..(H,S)..(GCC,GEN,LA);GUN126,135..LHD..(CAMP,M
TGN136..GEN;TGN126..THP..L..SA
MRP,THP);GGN125,GUN122,125,136,TGN120,121..LHD..THP..(GCC,GEN,LA,SA,VN)
VSC-WITH(*HSAC & *TSC)
|
6733E0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.09 |
GUN126..MMR
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.08 |
GUN126..CAMP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
GUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,L
TGN121..GEN
A)
VSC-WITH(*HSAC & *TSC)
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GUN126,135..LHD..THP;TGN126..THP..L..(GCC,LA);TGN126..THP..(H,S)..(GCC,GEN,LA);GGN
TGN136..GEN
125,GUN122,125,136,TGN120,121..LHD..THP..(GCC,GEN,LA,SA,VN)
VSC-WITH(*HSAC & *TSC)
|
6733D0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.09 |
GUN126..MMR
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,L
TGN121..GEN
A)
VSC-WITH(*HSAC & *TSC)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
TGN126..THP..(H,S);GUN126,135..LHD..THP;TGN126..THP..L..(GCC,LA);GGN125,GUN122,125
TGN136..GEN
,136,TGN120,121..LHD..THP..(GCC,GEN,LA,VN)
VSC-WITH(*HSAC & *TSC)
|
6733C0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.10 |
GUN126..MMR
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN125..XTR..GEN;GUN122..LHD..(GCC,GEN);GUN11#,125,126,135,TGN11#,12#..THP..(GCC,L
TGN121..GEN
A)
VSC-W(*HSAC & *TSC)
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
TGN126..THP..(H,S);GUN126,135..LHD..THP;TGN126..THP..L..(GCC,LA);GUN122,125..LHD..
TGN121,136..GEN
THP..(GCC,GEN,LA,VN);GGN125,GUN136,TGN120,121,136..THP..(GCC,LA)
VSC-W(*HSAC & *TSC)
|
6733B0 |
| HILUX | 2020.06 - 2023.01 |
TGN126..(H,S)..GEN;GUN126,135..LHD..(MMD,TD,TS);GUN122,125..LHD..(TD,TS,TX)..(GCC,
GEN,LA,VN);GGN125,GUN112,136,TGN11#,120,121,126,136..(TD,TS)..(GCC,LA)
|
6723A0 |
| HILUX | 2020.06 - 2021.08 |
TGN121,136..GEN
VEHICLE STABILITY CONT-WITH(*HSAC & TRAILER SWAY CONTROL)
|
6723A0 |
| HILUX | 2019.05 - 2020.05 |
GUN125,126,135..TDC..(S,X)..LA;GUN136,TGN126..TDC..MTM..(M,S,X)..(GEN,LA)
|
672390 |
| HILUX | 2017.08 - 2020.05 |
GUN125..TSC..GCC;TGN121..GCC..CBU;TGN126..TSC..(S,X);TGN126..(L,M)..GCC..CBU;GUN12
GUN122..TSC..HDCR;GUN125..LHD..TDC..M..GEN
GUN126..LHD..6FC..GEN
KUN112,122,TGN11#,120,121..L..GCC..CBU
5..TDC..6F..(L,M)..GCC;GUN112,122,125,KUN112,122,TGN11#,120..(5F,6FC)..GCC
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
SRS AIR BAG-WITHOUT
|
672390 |
| HILUX | 2017.08 - 2019.05 |
TGN126..S..GEN
KAZAKHSTAN SPEC(EURO 5 REGULATION)
|
672390 |
| HILUX | 2015.12 - 2017.08 |
TGN126..S..GEN
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
|
672390 |
| HILUX | 2015.05 - 2020.05 |
TGN126..M..GEN;TGN136..TDC..S..LA;TGN126..TDC..S..GCC;TGN121,126..GCC..IV3;GUN126.
KUN125..L..GCC;GUN126..LHD..GEN;GUN125..TXT..GEN;KUN125..TXT..L..GEN;GUN125,126..6
.TDC..6F..M..(GCC,LA);GUN126,KUN126..(H,S)..(GCC,VN);GUN125..LHD..TDC..6F..S..(GCC
F..(PH,VN);GUN135..LHD..(GEN,PH,VN);TGN136..(TDC,TSC)..(M,X);GUN122,125..TDC..X..H
,GEN);GGN125,GUN126..TDC..6FC..M..(GCC,LA,PH,TAIW)
DCR..GEN;KUN112,125,126,13#..LHD..(TDC,TSC,TXT)..MTM..(H,M,S,X);GUN122,KUN122,126,
TGN121..LHD..(TDC,TSC,TXT)..(5F,5FC)..(DCR,HTWC)..(GEN,LA,PH)
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
|
672390 |
| HILUX | 2015.05 - 2019.05 |
GUN136,TGN126..TDC..LA;GUN125,126,135..(TDC,TSC)..(S,X)..LA
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
|
672390 |
| HILUX | 2015.05 - 2017.08 |
GUN125..M..GEN
KUN112..L;TGN126..TSC..LA;GUN112,122,125,KUN122,TGN11#,120,121,126..GCC
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL)
|
672390 |
| HILUX | 2015.05 - 2015.12 |
TGN126..S..GEN
KAZAKHSTAN SPEC(EURO 4 REGULATION)
KAZAKHSTAN SPEC(EURO 5 REGULATION)
|
672390 |
Related Parts
| Part Number | Reference |
|---|---|
| 04477-04010 | BUSH & BOOT KIT, LOAD SENSING SPRING |
| 31478-0D040 | CAP, BLEEDER PLUG(FOR LSPV) |
| 44050-0K010 | ACTUATOR ASSY, BRAKE |
| 44050-0K020 | ACTUATOR ASSY, BRAKE |
| 44050-0K030 | ACTUATOR ASSY, BRAKE |
| 44050-0K060 | ACTUATOR ASSY, BRAKE |
| 44050-0K070 | ACTUATOR ASSY, BRAKE |
| 44050-0K080 | ACTUATOR ASSY, BRAKE |
| 44050-0K090 | ACTUATOR ASSY, BRAKE |
| 44050-0K100 | ACTUATOR ASSY, BRAKE |
| 44050-0K110 | ACTUATOR ASSY, BRAKE |
| 44050-0K120 | ACTUATOR ASSY, BRAKE |
Toyota part number 44590-0K200 corresponds to BRACKET ASSY, BRAKE ACTUATOR. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
