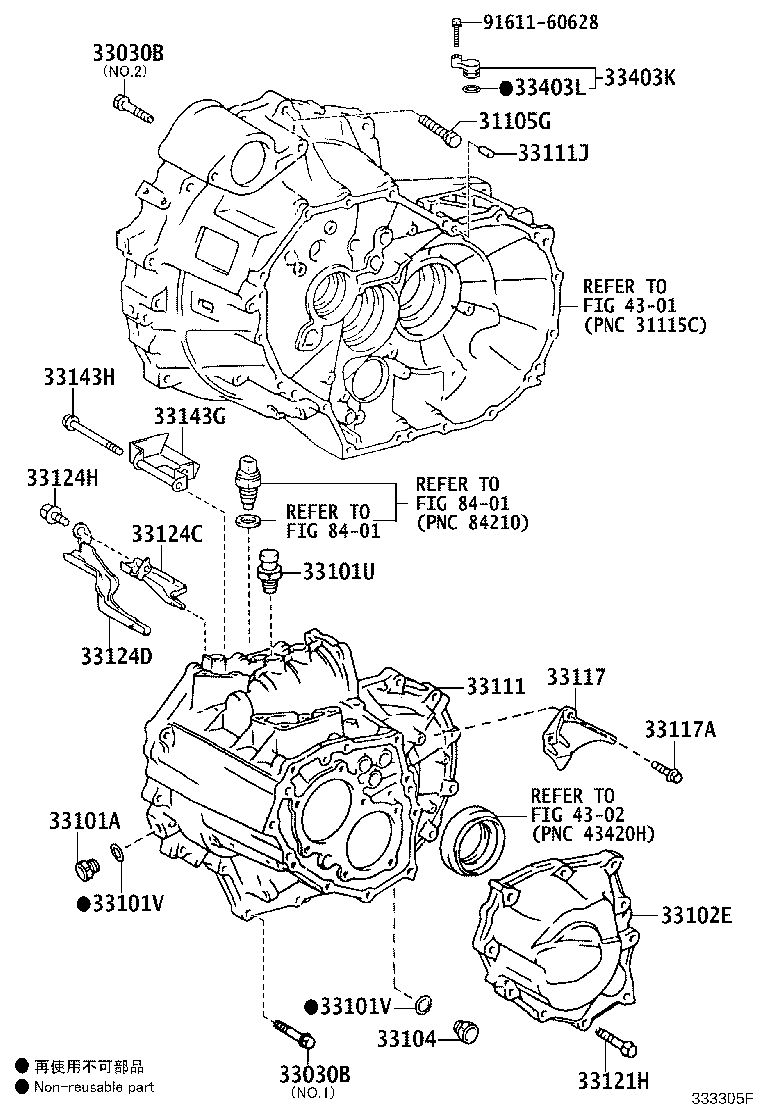

Toyota 90105-12147 BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-12147
Part overview:
OEM reference 90105-12147 for BOLT(FOR TRANSAXLE CASE & ENGINE SETTING).
This page currently lists 17 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 31105G |
| Manufacturer Part Number | 90105-12147 |
| Part Description | BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 90105-12147 |
| Catalog | 154460 |
| PNC | 31105G |
| PNC Group | BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SCION XB | 2010.03 - |
AZE151..MTM
*12-1.25PX74.5-25
|
154460 |
| SCION XB | 2007.03 - 2010.03 |
AZE151..MTM
*12-1.25PX74.5-25
|
154460 |
| CAMRY (JPP) | 2006.01 - |
ACV40..JPP..5F
*12-1.25PX74.5-25
|
284480 |
| CAMRY (JPP) | 2004.06 - |
ACV30..JPP..5F
*12-1.25PX74.5-25
|
284470 |
| SCION TC | 2004.05 - 2010.07 |
ANT10..5F
*12-1.25PX74.5-25
|
277410 |
| SOLARA | 2003.07 - 2006.05 |
ACV30..5F
*12-1.25PX74.5-25,(J)
|
286420 |
| RAV4 | 2003.07 - |
ACA2#..MTM
*12-1.25PX74.5-25
|
662420 |
| SOLARA | 2002.07 - 2002.12 |
ACV20..MTM
*12-1.25PX74.5-25,(J)
|
286410 |
| CAMRY (JPP) | 2001.07 - 2004.06 |
ACV30..JPP..5F
*12-1.25PX74.5-25
|
284470 |
| RAV4 | 2000.08 - 2003.07 |
ACA2#..MTM
*12-1.25PX74.5-25
|
662420 |
| SOLARA | 1999.08 - 2002.07 |
ACV20,MCV20..MTM
*12-1.25PX74.5-25,(J)
|
286410 |
| SOLARA | 1998.06 - 1999.08 |
MCV20..MTM
*12-1.25PX74.5-25
|
286410 |
| CAMRY (NAP) | 1996.07 - 1999.08 |
MCV20..NAP..MTM
*12-1.25PX74.5-25
|
283460 |
| CAMRY | 1987.10 - 1987.12 |
SV21
*12-1.25PX74.5-25
|
281430 |
| CELICA | 1987.08 - 1989.08 |
ST162
*12-1.25PX74.5-25
|
252450 |
| CAMRY | 1986.08 - 1987.10 |
SV21
*12-1.25PX74.5-25,*12-1.25PX7.45-25,ARM NO.1
|
281430 |
| CELICA | 1986.08 - 1987.08 |
ST162
*12-1.25PX74.5-25,BODY SIDE,FR
|
252440 |
Related Parts
| Part Number | Reference |
|---|---|
| 33101-42040 | CASE, MANUAL TRANSMISSION |
| 33102-33012 | COVER SUB-ASSY, MANUAL TRANSMISSION CASE |
| 33107-20010 | PROTECTOR, MANUAL TRANSMISSION CASE |
| 33124-28050 | PIPE, OIL RECEIVER, NO.1(MTM) |
| 33124-28060 | PIPE, OIL RECEIVER, NO.2(MTM) |
| 33143-42010 | BAFFLE, TRANSMISSION OIL |
| 33403-20230 | COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE |
| 90105-08086 | BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 90105-08126 | BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING) |
| 90105-08273 | BOLT, W/WASHER(FOR TRANSMISSION CASE COVER) |
| 90119-08439 | BOLT(FOR TRANSMISSION OIL BAFFLE) |
| 90119-08830 | BOLT(FOR OIL RECEIVER PIPE) |
Toyota part number 90105-12147 corresponds to BOLT(FOR TRANSAXLE CASE & ENGINE SETTING). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
