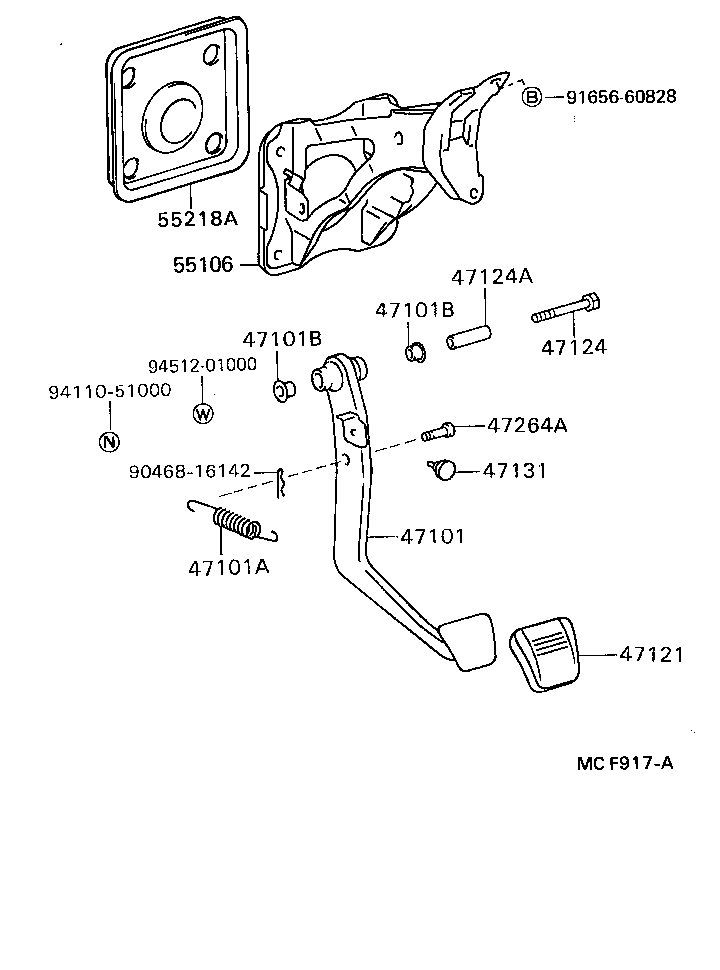

Toyota 90507-12033 SPRING(FOR BRAKE PEDAL RETURN)
90507-12033
Part overview:
OEM reference 90507-12033 for SPRING(FOR BRAKE PEDAL RETURN).
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47101A |
| Manufacturer Part Number | 90507-12033 |
| Part Description | SPRING(FOR BRAKE PEDAL RETURN) |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 90507-12033 |
| Catalog | 311460 |
| PNC | 47101A |
| PNC Group | SPRING(FOR BRAKE PEDAL RETURN) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS GS300 | 1993.01 - 1995.08 |
JZS147
|
332480 |
| LEXUS LS400 | 1989.05 - 1994.10 |
UCF10
|
431410 |
| CRESSIDA | 1988.08 - 1992.07 |
MX83
|
311460 |
Related Parts
| Part Number | Reference |
|---|---|
| 47101-22360 | PEDAL SUB-ASSY, BRAKE |
| 47121-14010 | PAD, BRAKE PEDAL |
| 55106-22200 | SUPPORT SUB-ASSY, BRAKE PEDAL |
| 55218-22010 | SEAL, DASH PANEL INSULATOR |
| 90101-10039 | SHAFT, BRAKE PEDAL |
| 90249-10064 | PIN(FOR PUSH ROD) |
| 90386-13015 | BUSH(FOR BRAKE PEDAL) |
| 90387-10003 | COLLAR(FOR BRAKE PEDAL SHAFT) |
| 90541-06032 | CUSHION(FOR STOP LAMP SWITCH) |
Toyota part number 90507-12033 corresponds to SPRING(FOR BRAKE PEDAL RETURN). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
