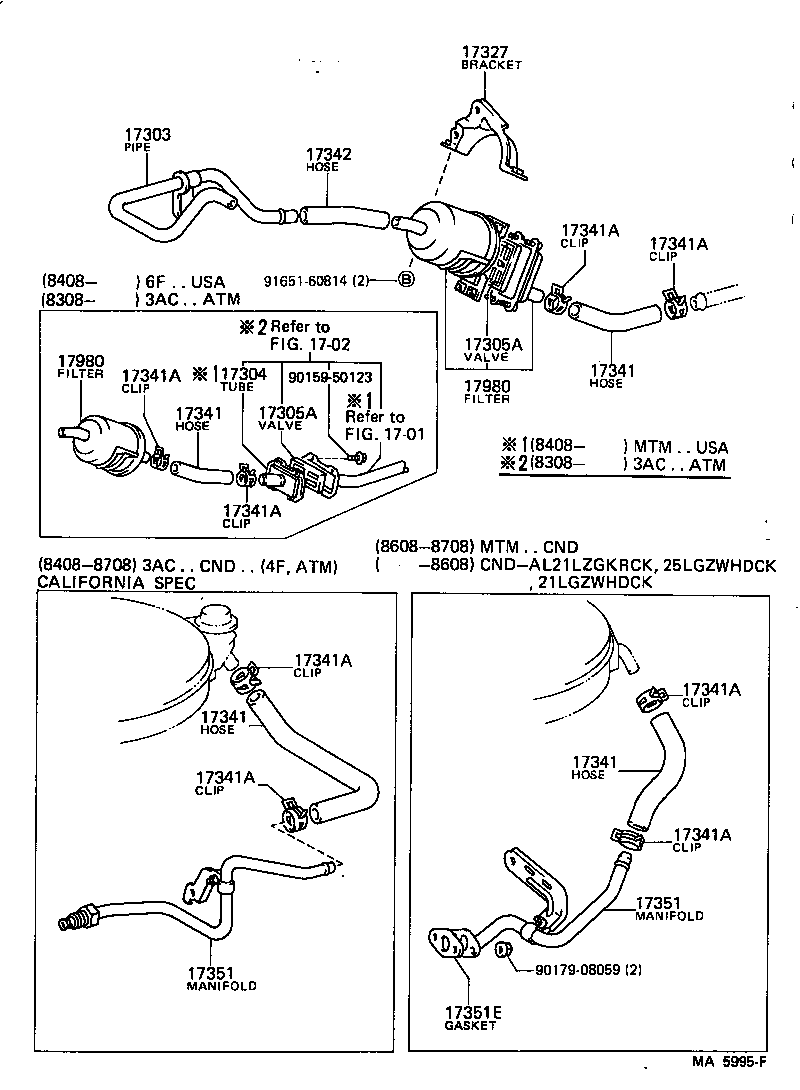

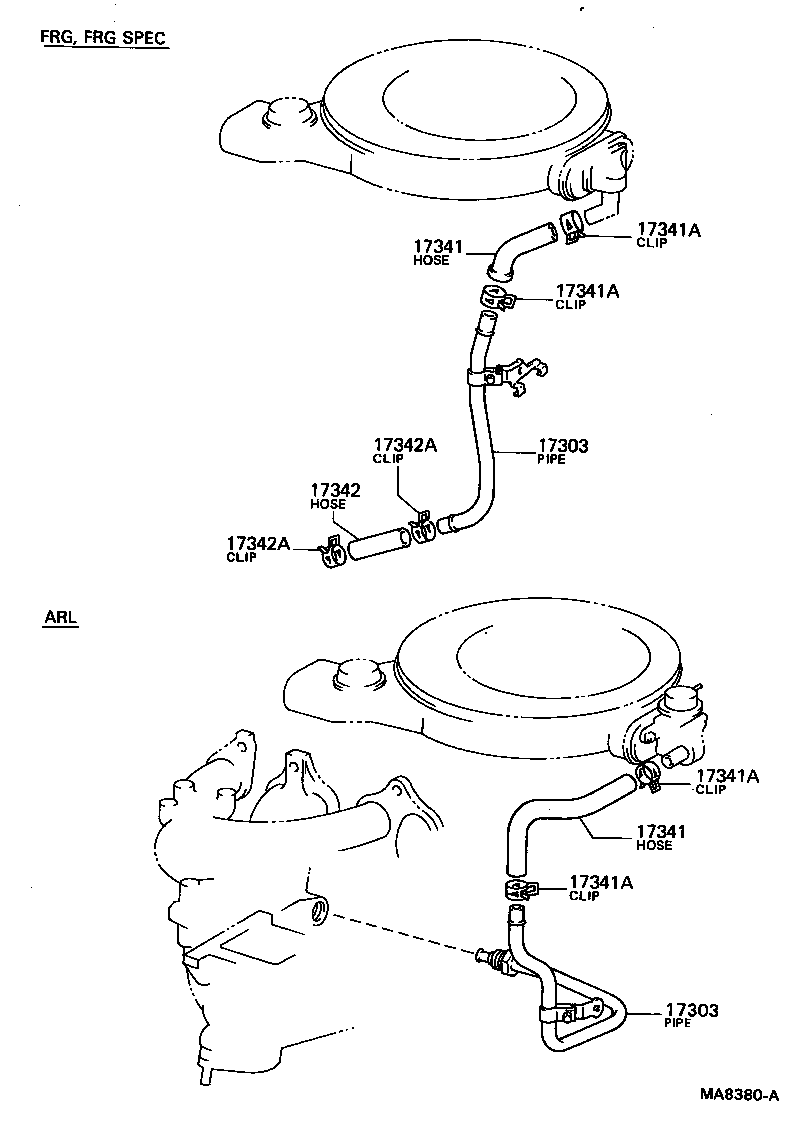

Toyota 90467-23003 CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1)
90467-23003
Part overview:
OEM reference 90467-23003 for CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1).
This page currently lists 28 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 17341A |
| Manufacturer Part Number | 90467-23003 |
| Part Description | CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 90467-23003 |
| Catalog | 131420 |
| PNC | 17341A |
| PNC Group | CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| T100 | 1992.08 - 1994.08 |
3VZE..VCK10,20
|
841410 |
| 4-RUNNER TRUCK (NAP) | 1992.02 - 1995.01 |
3VZE..VZN100,110
|
674450 |
| SUPRA | 1990.08 - 1993.05 |
7MGTE..MA70
|
291420 |
| LAND CRUISER | 1990.01 - 1993.05 |
2LT..LJ70,77..GEN
NO.2
|
781330 |
| CAMRY (NAP) | 1989.09 - 1991.09 |
2VZFE..VZV21
NO.2
|
283440 |
| SUPRA | 1989.08 - 1990.08 |
7MGTE..MA70..4FC;7MGTE..MA70..SPR..5F;7MGTE..MA70..LB..5F..USA
|
291420 |
| LEXUS ES250 | 1989.06 - 1991.07 |
2VZFE..VZV21
|
284440 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1995.11 |
3VZE..VZN10#,110,13#
|
671450 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1995.11 |
3VZE..VZN120,85,9#
|
672450 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1991.08 |
3VZE..VZN10#,110,13#
|
671450 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1991.08 |
3VZE..VZN120,85,9#
|
672450 |
| CAMRY (JPP) | 1988.08 - 1991.06 |
2VZFE..VZV21
|
281440 |
| SUPRA | 1988.08 - 1989.08 |
7MGTE..MA70
|
291420 |
| CAMRY | 1988.02 - 1988.08 |
2VZFE..VZV21
|
281430 |
| 4-RUNNER TRUCK | 1987.11 - 1989.03 |
3VZE..VZN6#
|
671440 |
| COROLLA FX | 1987.02 - 1988.08 |
4ALC..AE82
CALIFORNIA SPEC
|
181410 |
| SUPRA | 1986.08 - 1988.08 |
7MGTE..MA70
|
291410 |
| SUPRA | 1986.01 - 1988.08 |
7MG#..MA70
|
291410 |
| COROLLA CP | 1985.08 - 1987.07 |
4AC..AE86..SR5..USA
CALIFORNIA SPEC
|
161450 |
| CRESSIDA | 1984.08 - 1988.08 |
5MGE..MX7#
|
311450 |
| TERCEL | 1984.08 - 1987.08 |
3AC..AL2#..(3FC,4F)..CND
|
131420 |
| COROLLA SED/LB | 1983.08 - 1987.07 |
4ALC..AE82..CND
4ALC..AE82..USA
CALIFORNIA SPEC
|
151410 |
| COROLLA CP | 1983.08 - 1985.08 |
4AC..AE86..USA
CALIFORNIA SPEC
|
161450 |
| TERCEL | 1982.08 - 1988.01 |
3AC..AL2#..USA
CALIFORNIA SPEC
|
131420 |
| CELICA | 1982.08 - 1985.12 |
5MGE..MA61
AIR HOSE NO.7
|
252430 |
| CRESSIDA | 1982.08 - 1984.07 |
5MGE..MX6#
|
311440 |
| COROLLA | 1982.08 - 1983.07 |
4AC..AE71..USA
CALIFORNIA SPEC
|
191410 |
| CELICA | 1981.08 - 1982.08 |
5MGE..MA61
ID=23
|
252430 |
Related Parts
| Part Number | Reference |
|---|---|
| 17303-15040 | PIPE SUB-ASSY, AIR |
| 17304-15010 | TUBE SUB-ASSY, AIR, RH |
| 17305-15010 | VALVE SUB-ASSY, REED |
| 17306-15030 | MANIFOLD, AIR INJECTION |
| 17306-15040 | MANIFOLD, AIR INJECTION |
| 17327-15030 | BRACKET, REED VALVE |
| 17341-15070 | HOSE, NO.1(FOR AIR INJECTION SYSTEM) |
| 17341-15090 | HOSE, NO.1(FOR AIR INJECTION SYSTEM) |
| 17980-15030 | FILTER ASSY, AIR SUCTION |
| 17980-15040 | FILTER ASSY, AIR SUCTION |
| 89466-30010 | GASKET(FOR AIR INJECTION MANIFOLD) |
| 90445-15007 | HOSE, NO.2(FOR AIR INJECTION SYSTEM) |
Toyota part number 90467-23003 corresponds to CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
