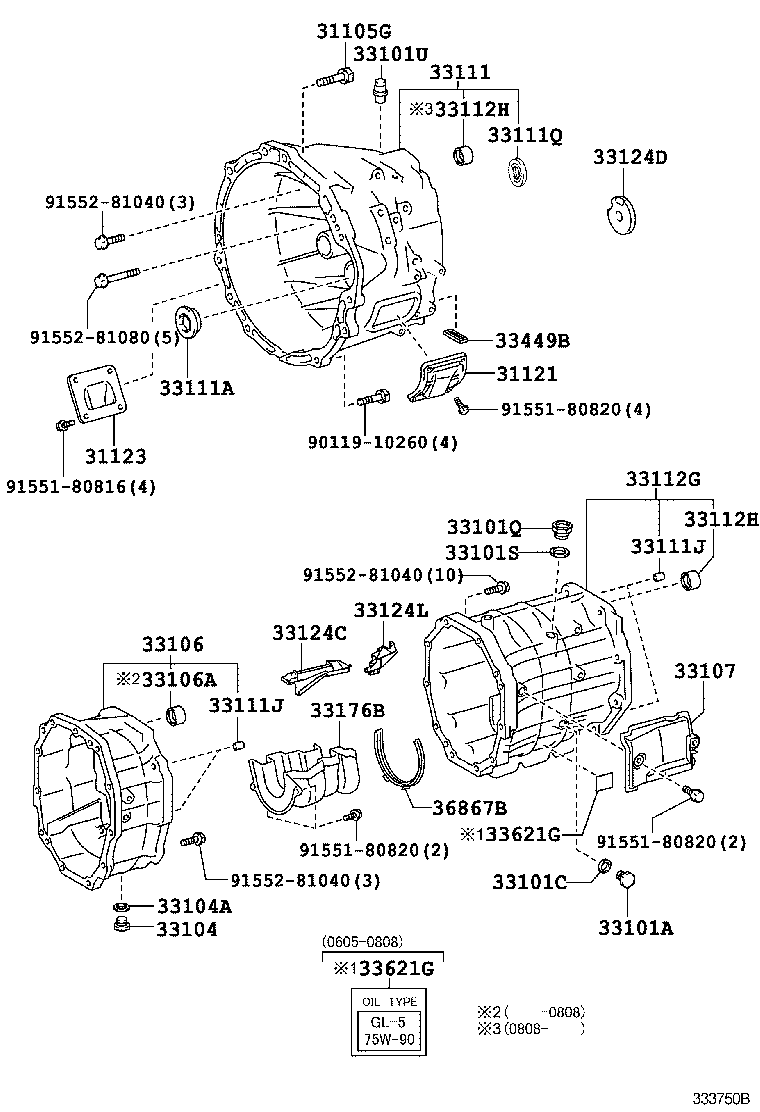

🔍 Click image to enlarge
Toyota 90119-12005 BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90119-12005
Part overview:
OEM reference 90119-12005 for BOLT(FOR TRANSAXLE CASE & ENGINE SETTING).
This page currently lists 17 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 31105G |
| Manufacturer Part Number | 90119-12005 |
| Part Description | BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 90119-12005 |
| Catalog | 242420 |
| PNC | 31105G |
| PNC Group | BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LAND CRUISER | 2023.09 - 2025.08 |
VDJ79..RHD;VDJL79..LX
*12-1.25PX70-30
|
781370 |
| LAND CRUISER | 2023.09 - 2024.09 |
VDJ79..GCC;VDJL79..STD;VDJ76,78,L76,L78
*12-1.25PX70-30
|
781370 |
| LAND CRUISER | 2016.08 - 2023.09 |
VDJ7#,L7#..CBU,IV
*12-1.25PX70-30
|
781370 |
| LEXUS IS250/350 | 2010.08 - 2012.08 |
GSE20..MTM
*12-1.25PX70-30
|
242420 |
| LEXUS IS250C/350C | 2009.04 - 2012.08 |
GSE20..6F
*12-1.25PX70-30
|
246410 |
| LEXUS IS250/350 | 2008.08 - 2010.08 |
GSE20..MTM
*12-1.25PX70-30
|
242420 |
| LAND CRUISER | 2007.01 - 2016.08 |
VDJ7#
*12-1.25PX70-30
|
781370 |
| LEXUS IS250/350 | 2005.09 - 2008.08 |
GSE20..MTM
*12-1.25PX70-30
|
242420 |
| TUNDRA | 2002.08 - 2004.08 |
VCK30,40..5F
*12-1.25PX70-30,(L)
|
841420 |
| TACOMA | 2000.09 - |
VZN170..R
*12-1.25PX70-30,(J)
|
674460 |
| TACOMA | 2000.09 - |
VZN150
*12-1.25PX70-30,(J)
|
675460 |
| TACOMA | 1999.12 - 2000.09 |
VZN170..R
*12-1.25PX70-30,(J)
|
674460 |
| TACOMA | 1999.12 - 2000.09 |
VZN150..R
*12-1.25PX70-30,(J)
|
675460 |
| TUNDRA | 1999.02 - 2002.08 |
VCK30,40..5F
*12-1.25PX70-30,(L)
|
841420 |
| TACOMA | 1997.06 - 1999.12 |
VZN170..R
*12-1.25PX70-30
|
674460 |
| TACOMA | 1995.01 - 1997.06 |
VZN160,170..R
*12-1.25PX70-30
|
674460 |
| TACOMA | 1995.01 - 1997.06 |
VZN150..R
*12-1.25PX70-30
|
675460 |
Related Parts
| Part Number | Reference |
|---|---|
| 31121-53010 | COVER, CLUTCH HOUSING, NO.1 |
| 31123-53010 | COVER, CLUTCH HOUSING, NO.2 |
| 33101-53030 | CASE, MANUAL TRANSMISSION |
| 33101-53050 | CASE, MANUAL TRANSMISSION |
| 33102-53010 | CASE, TRANSMISSION, REAR |
| 33102-53030 | CASE, TRANSMISSION, REAR |
| 33106-53020 | CASE SUB-ASSY, TRANSMISSION CENTER |
| 33106-53030 | CASE SUB-ASSY, TRANSMISSION CENTER |
| 33107-53010 | COVER SUB-ASSY, TRANSMISSION, UPPER |
| 33124-35121 | PIPE, OIL RECEIVER, NO.1(MTM) |
| 33124-35130 | PIPE, OIL RECEIVER, NO.2(MTM) |
| 33124-35140 | PIPE, OIL RECEIVER, N0.3(MTM) |
Toyota part number 90119-12005 corresponds to BOLT(FOR TRANSAXLE CASE & ENGINE SETTING). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
