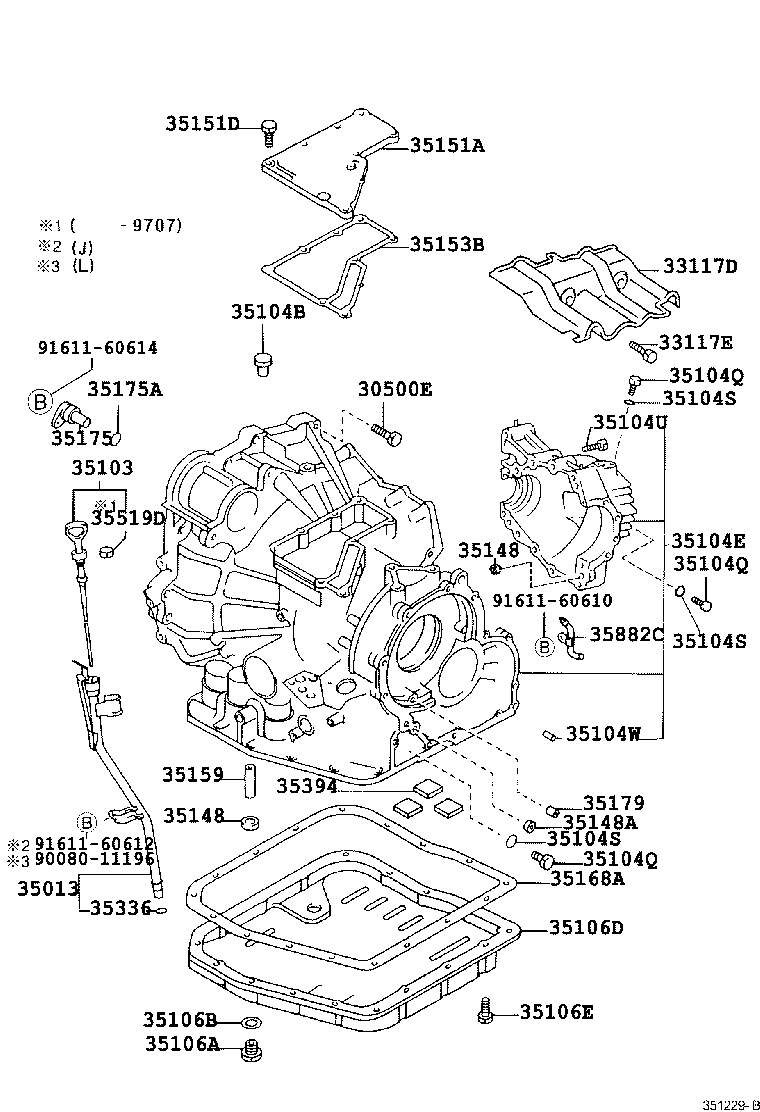

Toyota 90080-11424 BOLT(FOR TRANSAXLE & ENGINE SETTING)
90080-11424
Part overview:
OEM reference 90080-11424 for BOLT(FOR TRANSAXLE & ENGINE SETTING).
This page currently lists 26 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 30500E |
| Manufacturer Part Number | 90080-11424 |
| Part Description | BOLT(FOR TRANSAXLE & ENGINE SETTING) |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 90080-11424 |
| Catalog | 283460 |
| PNC | 30500E |
| PNC Group | BOLT(FOR TRANSAXLE & ENGINE SETTING) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS RX450H/350(NAP | 2019.09 - |
GYL25
*12-1.25PX65-30,(L)
|
523430 |
| HIGHLANDER (NAP) | 2016.11 - |
GVU58
*12-1.25PX65-30,(L)
|
526420 |
| LEXUS RX450H/350(NAP | 2016.10 - 2019.09 |
GYL25
*12-1.25PX65-30,(L)
|
523430 |
| HIGHLANDER (NAP) | 2016.10 - 2016.11 |
GVU58
*12-1.25PX65-30,(L)
|
526420 |
| HIGHLANDER (NAP) | 2010.08 - |
GSU4#
*12-1.25PX65-30,NO.4
|
526410 |
| HIGHLANDER (NAP) | 2009.10 - 2010.08 |
GSU4#
*12-1.25PX65-30,NO.4
|
526410 |
| SIENNA | 2006.12 - |
GSL2#
*12-1.25PX65-30
|
622420 |
| SOLARA | 2006.05 - 2008.08 |
MCV31..CP
*12-1.25PX65-30
|
286420 |
| SOLARA | 2006.05 - |
MCV31..CVT
*12-1.25PX65-30
|
286420 |
| LEXUS RX330/350(NAP) | 2006.02 - |
GSU3#..NAP
*12-1.25PX65-30
|
523410 |
| SIENNA | 2005.09 - 2006.12 |
MCL2#
*12-1.25PX65-30
|
622420 |
| AVALON | 2005.01 - 2007.07 |
GSX30
*12-1.25PX65-30
|
361430 |
| CAMRY (NAP) | 2004.06 - |
MCV3#..NAP
*12-1.25PX65-30
|
283470 |
| LEXUS RX330/350(NAP) | 2003.09 - 2006.02 |
MCU3#..NAP
*12-1.25PX65-30
|
523410 |
| CAMRY (NAP) | 2003.09 - 2004.06 |
MCV31..NAP
*12-1.25PX65-30
|
283470 |
| SOLARA | 2003.07 - 2006.05 |
MCV31
*12-1.25PX65-30
|
286420 |
| SIENNA | 2003.01 - 2005.09 |
MCL2#
*12-1.25PX65-30
|
622420 |
| AVALON | 2002.06 - |
MCX20
*12-1.25PX65-30,NO.2,(L)
|
361420 |
| CAMRY (NAP) | 2001.07 - 2004.06 |
MCV30..NAP..(LE,XLE)..5FC
MCV30..NAP..4FC;MCV30..NAP..SE..5FC
*12-1.25PX65-30,(L)
|
283470 |
| CAMRY (NAP) | 1999.12 - |
MCV20..NAP..MTM
*12-1.25PX65-30,(L)
|
283460 |
| SOLARA | 1999.08 - 2002.07 |
MCV20..MTM
*12-1.25PX65-30,(L)
|
286410 |
| AVALON | 1999.08 - 2002.06 |
MCX20
*12-1.25PX65-30,NO.2,(L)
|
361420 |
| CAMRY (NAP) | 1999.08 - |
MCV20..NAP..ATM
*12-1.25PX65-30,(L)
|
283460 |
| SOLARA | 1999.04 - 2002.12 |
MCV20..ATM
*12-1.25PX65-30,(L)
|
286410 |
| AVALON | 1999.04 - |
MCX10
*12-1.25PX65-30,(L)
|
361410 |
| SIENNA | 1999.04 - |
MCL10
*12-1.25PX65-30,(L)
|
622410 |
Related Parts
| Part Number | Reference |
|---|---|
| 33117-07010 | PROTECTOR, AUTOMATIC TRANSMISSION CASE |
| 33117-32040 | PROTECTOR, AUTOMATIC TRANSMISSION CASE |
| 33117-32060 | PROTECTOR, AUTOMATIC TRANSMISSION CASE |
| 33119-33010 | PLATE, STIFFENER, LH(ATM) |
| 35013-06040 | TUBE SUB-ASSY, TRANSMISSION OIL FILLER |
| 35013-06050 | TUBE SUB-ASSY, TRANSMISSION OIL FILLER |
| 35103-33100 | GAGE SUB-ASSY, TRANSMISSION OIL LEVEL |
| 35103-33120 | GAGE SUB-ASSY, TRANSMISSION OIL LEVEL |
| 35103-33160 | GAGE SUB-ASSY, TRANSMISSION OIL LEVEL |
| 35104-32170 | CASE SUB-ASSY, AUTOMATIC TRANSAXLE |
| 35104-33900 | CASE SUB-ASSY, AUTOMATIC TRANSAXLE |
| 35104-33903 | CASE SUB-ASSY, AUTOMATIC TRANSAXLE |
Toyota part number 90080-11424 corresponds to BOLT(FOR TRANSAXLE & ENGINE SETTING). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
