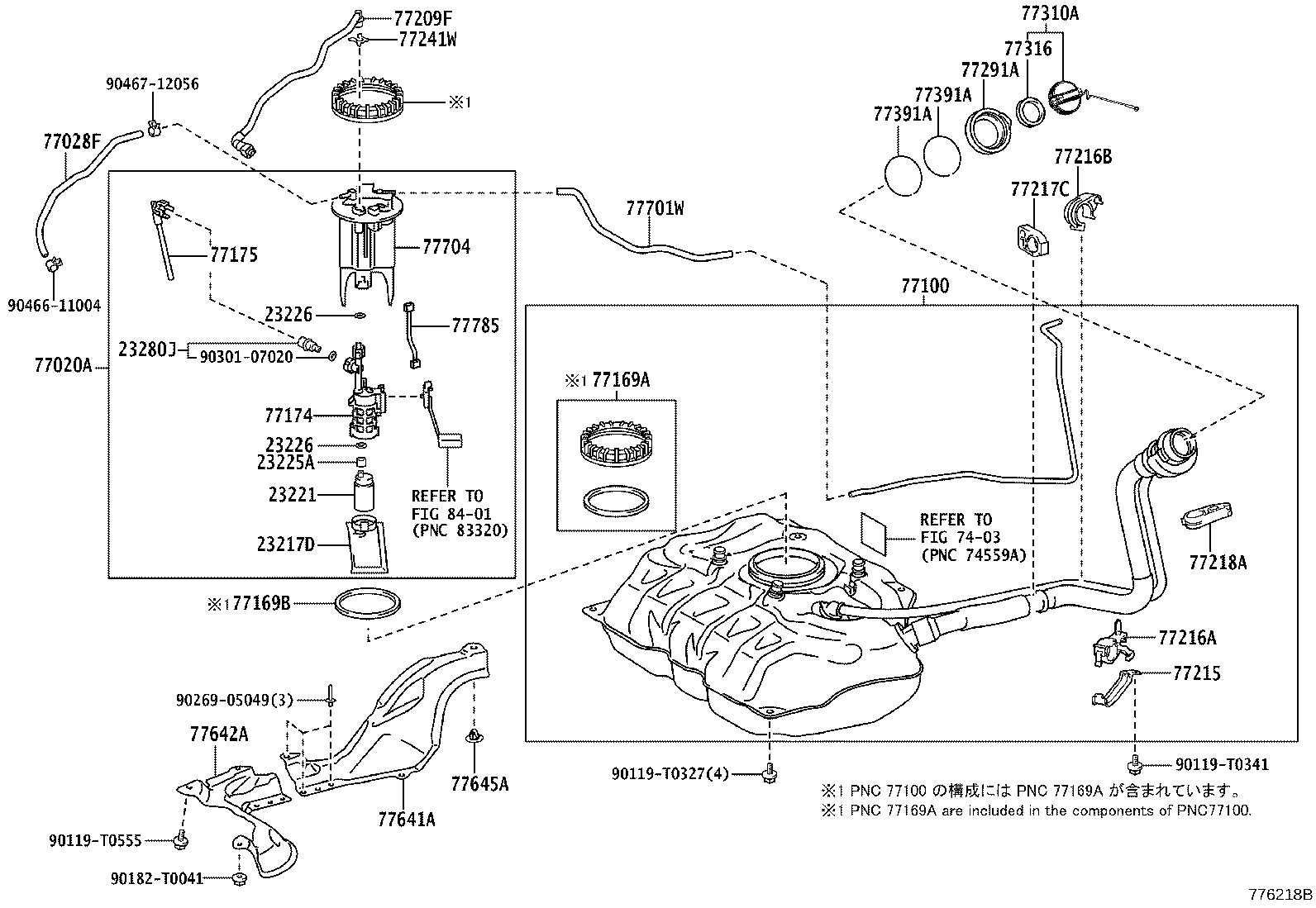

Toyota 77241-0K010 CLIP, TUBE JOINT
77241-0K010
Part overview:
OEM reference 77241-0K010 for CLIP, TUBE JOINT.
This page currently lists 48 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77241W |
| Manufacturer Part Number | 77241-0K010 |
| Part Description | CLIP, TUBE JOINT |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77241-0K010 |
| Catalog | 149340 |
| PNC | 77241W |
| PNC Group | CLIP, TUBE JOINT |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| VIOS/YARIS | 2024.09 - |
NSP15#..GCC,GEN,PKN,TH,VN
|
149340 |
| HILUX (DOUBLE CAB) | 2024.08 - 2024.11 |
GUN136..6F..ARL;GUN126..H..DCRL..IV3
TGN121..5F..ARL
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - |
GUN11#,12#,13#,LAN125
TGN11#,12#,136..AGTP,SAP,THP
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
GUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN120,12
TGN121..6FC..ARL;GGN125,TGN12#,136..BZAG,GCC,GEN,LA,SA
1,122,125,135,LAN125
|
6733E0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.12 |
GUN125,135..KEN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.12 |
GUN125,126..GHA,KEN
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.10 |
GUN122,125,126,13#,LAN125..AGTP,SAP
TGN12#,136..AGTP,SAP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.10 |
GUN122,125,126,13#,LAN125..AGTP,SAP
GGN125,TGN121,126,136..AGTP,SAP
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.09 |
GUN126..IND,MMR
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.08 |
GUN125..MA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.08 |
GUN125,126..CAMP,MAP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
GUN11#,12#,13#..THP
TGN11#,12#..THP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GUN12#,13#..THP..DCRL;GUN126..MHV..(ARL,GCC,LA)
GGN125,TGN12#,136..THP..(ARL,GCC,GEN,LA)
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - |
GUN122,126..PKN
TGN121..PKN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - |
GUN126..PKN
|
6733D0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.03 |
GUN125,135..KEN
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.03 |
GUN125,126..GHA,KEN
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.01 |
GUN122,125,126,13#,LAN125..SA
TGN120,121,136..SA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.01 |
GUN122,125,126,13#,LAN125..SA
GGN125,TGN121,126,136..SA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.10 |
GUN125,126,135..AGTP
TGN126,136..AGTP
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.10 |
GUN125,126,13#..AGTP
GGN125,TGN126,136..AGTP
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.09 |
GUN126..IND,MMR
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.08 |
GUN125..MA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.08 |
GUN125,126..MA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN11#,12#,13#..THP
TGN11#,12#..THP
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GUN12#,13#..THP
GGN125,TGN12#,136..THP
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - |
GUN122,126..PKN
TGN121..PKN
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - |
GUN126..PKN
|
6733C0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.03 |
GUN122..SA..CBU;GUN120,122..(SA,TH)..IV3;GUN125,126,13#,LAN125..KEN,SA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.03 |
GUN122,125,126,13#,LAN125..GHA,KEN,MMR,SA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.01 |
GUN122,126..PKN
TGN120,121,136..PKN,SA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.01 |
GUN126..PKN
GGN125,TGN121,126,136..SA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.10 |
GUN125,126,135..AGTP
TGN126,136..AGTP
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.10 |
GUN125,126,13#..AGTP
GGN125,TGN126,128,13#..AGTP
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.09 |
GUN126..IND
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.08 |
GUN125..MA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.08 |
GUN125,126..MA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN125,126,13#..THP;GUN122..THP..5F..IV3;GUN11#,120,121,122..THP..CBU
TGN11#,12#..THP
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GUN12#,13#..THP
GGN125,TGN120,121,126,136..THP
|
6733B0 |
| HILUX | 2020.06 - 2023.01 |
GUN112,12#,13#,LAN125..KD,KS,MD,MMD,MS,SD,SS,SX,TD,TS,TX
|
6723A0 |
| HILUX | 2020.06 - 2022.01 |
GUN122,126..PKN
GGN125,TGN11#,120,121,126,136..PS,SD,SS,TD,TS
|
6723A0 |
| HILUX | 2020.06 - 2021.11 |
GUN125,126..GHA
|
6723A0 |
| HILUX | 2020.06 - 2021.10 |
GUN125,126,13#..AD,AS
GGN125,TGN126,128,13#..AD,AS
|
6723A0 |
| HILUX | 2019.06 - 2020.10 |
TGN136..SSC
|
672390 |
| HILUX | 2018.10 - 2020.10 |
GGN125..BZAGT
|
672390 |
| HILUX | 2015.05 - 2021.05 |
GUN112,12#,13#,KUN112,12#,13#,LAN125
|
672390 |
| HILUX | 2015.05 - 2020.10 |
TGN126,128,13#..ADC,ASC,SDC,TDC,TSC,TXT;GGN12#,135,TGN11#,120,121..ARL,GCC,GEN,IDN
,LA,SA,TH
|
672390 |
| HILUX | 2015.05 - 2018.07 |
TGN136..SSC
|
672390 |
Related Parts
| Part Number | Reference |
|---|---|
| 23217-0Y030 | FILTER, FUEL PUMP |
| 23221-0Y040 | PUMP, FUEL |
| 23225-0V030 | SPACER, FUEL PUMP |
| 23280-22010 | REGULATOR ASSY, FUEL PRESSURE |
| 64606-0D130 | LEVER SUB-ASSY, FUEL LID LOCK OPEN |
| 64606-0D140 | LEVER SUB-ASSY, FUEL LID LOCK OPEN |
| 64648-0D020 | GROMMET, LUGGAGE DOOR LOCK OPENER |
| 77001-0D271 | TANK ASSY, FUEL |
| 77001-0D280 | TANK ASSY, FUEL |
| 77001-0D430 | TANK ASSY, FUEL |
| 77020-0D190 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
| 77028-0D140 | TUBE SUB-ASSY, FUEL EMISSION, NO.2 |
Toyota part number 77241-0K010 corresponds to CLIP, TUBE JOINT. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
