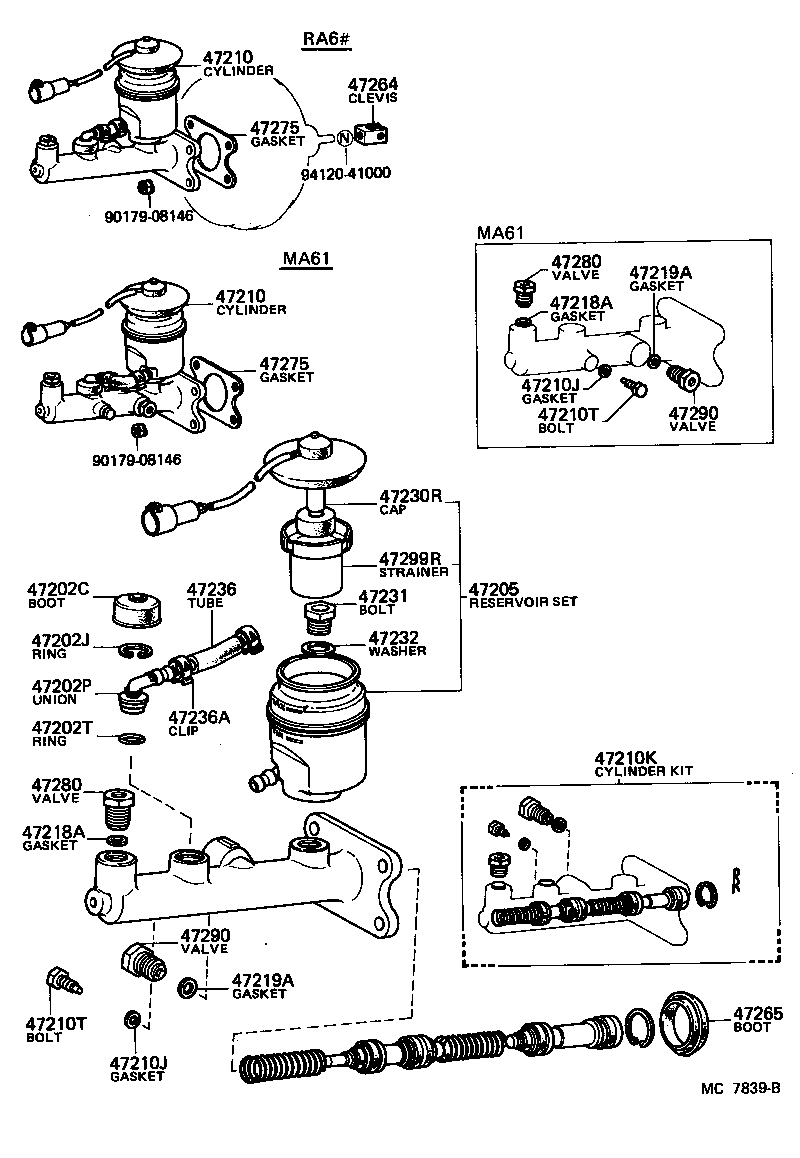

Toyota 47275-24010 GASKET, BRAKE MASTER CYLINDER
47275-24010
Part overview:
OEM reference 47275-24010 for GASKET, BRAKE MASTER CYLINDER.
This page currently lists 33 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47275 |
| Manufacturer Part Number | 47275-24010 |
| Part Description | GASKET, BRAKE MASTER CYLINDER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 47275-24010 |
| Catalog | 252430 |
| PNC | 47275 |
| PNC Group | GASKET, BRAKE MASTER CYLINDER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LAND CRUISER | 2003.09 - 2004.05 |
FZJ73,75
|
781330 |
| HILUX 2WD | 2001.06 - |
LN200..SRV
|
672350 |
| HILUX 2WD | 1999.05 - 1999.09 |
LN85,RN85,YN85
|
672350 |
| LEXUS LX450 | 1995.11 - 1998.01 |
FZJ80
|
792440 |
| TACOMA | 1995.01 - 2000.09 |
RZN161,171,VZN160,170
|
674460 |
| TACOMA | 1995.01 - 2000.09 |
RZN140,150,19#,VZN150,195
|
675460 |
| LAND CRUISER | 1993.05 - 2003.09 |
FZJ73,75..(PIC,SOT)..GEN..EFI
|
781330 |
| LAND CRUISER | 1993.05 - 2001.06 |
FZJ70,75..GEN..CBU..EFI
|
781330 |
| LAND CRUISER | 1993.05 - 2000.07 |
HZJ70,75..RHD..(PIC,SOT)..GEN..CBU
|
781330 |
| LAND CRUISER | 1993.05 - 1999.11 |
FZJ75,HZJ75..SA
|
781330 |
| LAND CRUISER | 1993.05 - 1999.08 |
FZJ75..ARL..IV;HZJ75..ARL,GCC;HZJ75..GEN..IV;FZJ75..LHD..IV..CBR;FZJ75..(ARL,GCC,G
EN)..CBU;HZJ75..LHD..PIC..GEN..CBU;FZJ70,HZJ70..HT..(GCC,GEN);FZJ73,HZJ75..(HT,SOT
)..(GCC,GEN)..(CBR,DSL)
|
781330 |
| LAND CRUISER | 1993.05 - 1996.04 |
KZJ7#,LJ7#,RJ7#..HT
|
781330 |
| LAND CRUISER | 1993.05 - 1995.01 |
FZJ70,HZJ70..ARL;FZJ75..RHD..IV..CBR;FZJ70,PZJ75..(PIC,SOT)..5F
|
781330 |
| LAND CRUISER | 1993.05 - 1994.01 |
PZJ70,73;PZJ75..4F;RJ70..SOT
|
781330 |
| 4-RUNNER TRUCK (NAP) | 1993.04 - 1995.01 |
RN80..STD
|
675450 |
| T100 | 1992.08 - |
RCK10,VCK1#,2#
|
841410 |
| 4-RUNNER TRUCK (NAP) | 1992.02 - 1995.01 |
RN101,110,VZN100,110
|
674450 |
| LAND CRUISER | 1992.01 - 2003.09 |
FZJ70,75..CBR;FZJ70,75..ARL;HZJ78..ARL,GEN;FZJ73,RJ77..LHD..CBR;FJ7#,FZJ71,74,78,7
9,HDJ7#,HZJ71,79,LJ77,79
|
781330 |
| 4-RUNNER TRUCK (NAP) | 1991.09 - 1993.04 |
RN80,90
|
675450 |
| LAND CRUISER | 1990.01 - 1998.01 |
FJ80,FZJ80
|
791440 |
| PREVIA | 1990.01 - 1996.08 |
TCR10,20
|
652440 |
| LAND CRUISER | 1990.01 - 1992.01 |
RJ77..LHD;LJ72,RJ70..STD;FJ7#,HJ75,HZJ7#,LJ77,79,PZJ7#
|
781330 |
| HILUX 2WD | 1988.08 - 1999.05 |
LN8#,9#,RN125,8#,90,YN8#,9#
|
672350 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1995.11 |
RN10#,110,13#,VZN10#,110,13#
|
671450 |
| 4-RUNNER TRUCK (JPP) | 1988.08 - 1995.11 |
RN12#,8#,90,VZN120,85,9#
|
672450 |
| SUPRA | 1988.08 - 1993.05 |
MA70
|
291420 |
| CRESSIDA | 1988.08 - 1992.07 |
MX83
|
311460 |
| SUPRA | 1986.01 - 1988.08 |
MA70
|
291410 |
| 4-RUNNER TRUCK | 1985.08 - 1989.03 |
LN66,RN5#,6#,7#,VZN6#
|
671440 |
| CRESSIDA | 1984.08 - 1988.08 |
MX7#
|
311450 |
| 4-RUNNER TRUCK | 1984.08 - 1985.08 |
RN55..(DLX,SRT,STD)..(EFI,TBO)
|
671440 |
| 4-RUNNER TRUCK | 1983.08 - 1985.08 |
LN65,RN6#
|
671440 |
| CELICA | 1981.08 - 1985.12 |
MA61,RA6#
|
252430 |
Related Parts
| Part Number | Reference |
|---|---|
| 04493-24010 | CYLINDER KIT, BRAKE MASTER |
| 47201-14360 | CYLINDER ASSY, MASTER, W/O BOOSTER |
| 47201-14400 | CYLINDER ASSY, MASTER, W/O BOOSTER |
| 47201-14470 | CYLINDER ASSY, MASTER, W/O BOOSTER |
| 47202-14210 | RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) |
| 47202-14240 | RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) |
| 47218-12040 | VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK |
| 47218-12040 | VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) |
| 47231-30010 | BOLT, BRAKE MASTER CYLINDER RESERVOIR SET |
| 47232-30010 | WASHER, BRAKE RESERVOIR SET BOLT |
| 47234-14010 | TUBE, RESERVOIR BRAKE |
| 47264-22010 | CLEVIS, MASTER CYLINDER PUSH ROD |
Toyota part number 47275-24010 corresponds to GASKET, BRAKE MASTER CYLINDER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
