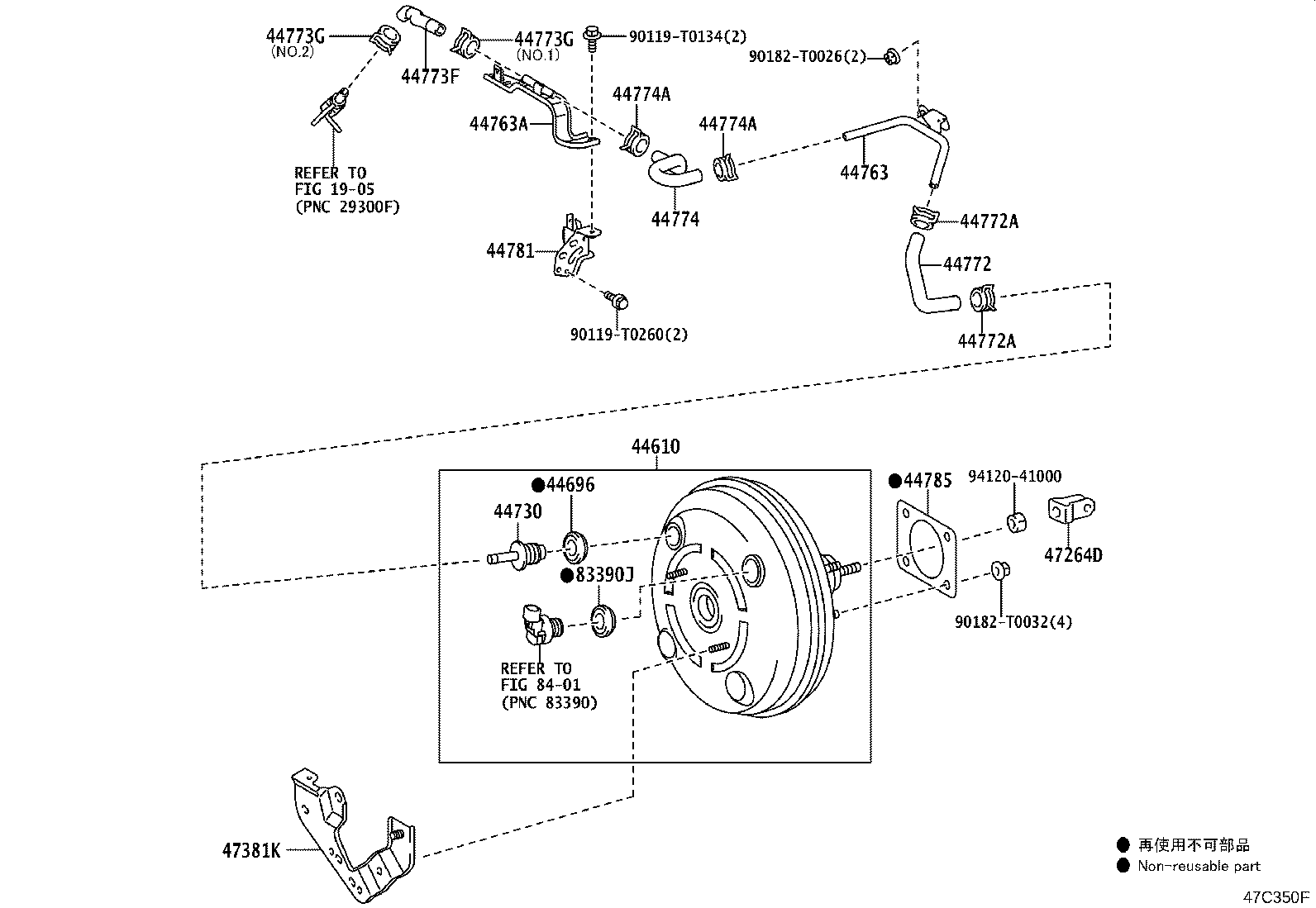

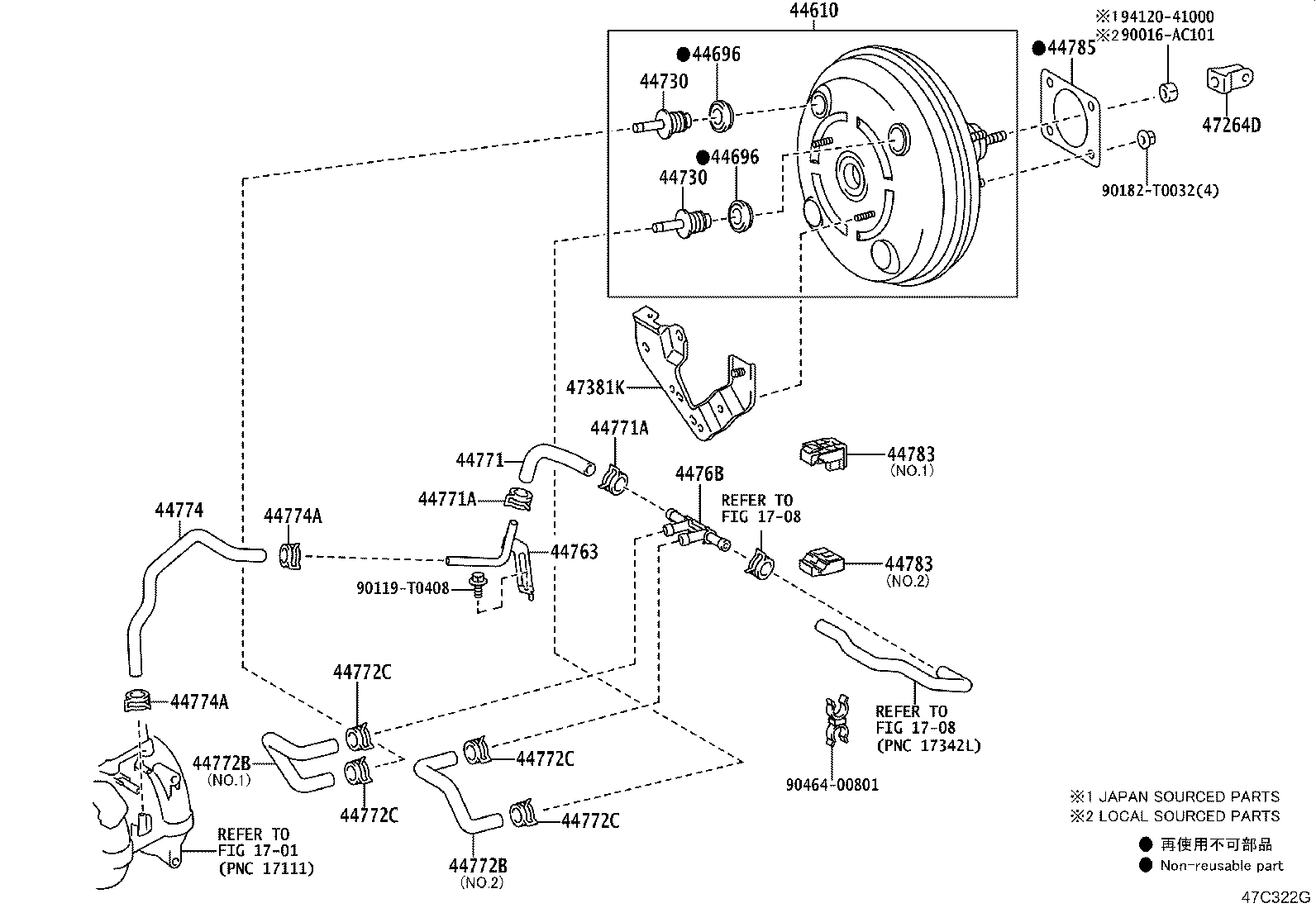

Toyota 47264-04010 CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-04010
Part overview:
OEM reference 47264-04010 for CLEVIS, BRAKE MASTER CYLINDER PUSH ROD.
This page currently lists 37 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47264D |
| Manufacturer Part Number | 47264-04010 |
| Part Description | CLEVIS, BRAKE MASTER CYLINDER PUSH ROD |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 47264-04010 |
| Catalog | 672390 |
| PNC | 47264D |
| PNC Group | CLEVIS, BRAKE MASTER CYLINDER PUSH ROD |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (DOUBLE CAB) | 2024.08 - 2024.11 |
GUN126..H..DCRL..IV3;GUN136,TGN121..MTM..ARL
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - |
GUN11#,12#,13#,LAN125,TGN11#,12#,136..KENP,MAP,SAP,THP
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
TGN121..LHD;GUN126..S..IV3;GUN126..H..MHV..IV3;GUN136,TGN121..RHD..6FC;GUN136..(SA
P,THP)..6F..H;GUN126..(CAMP,GHAP,KENP,MAP,MMRP,SAP,THP)..CBU;GGN125,GUN120,121,122
,125,135,LAN125,TGN120,126,136..GHAP,KENP,MAP,SAP,THP
|
6733E0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.12 |
GUN125,135..KEN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.12 |
GUN125,126..GHA,KEN
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.10 |
GUN122,125,126,13#,LAN125,TGN120,121,136..SA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.10 |
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SAP
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.09 |
GUN126..MMR
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.08 |
GUN125..MA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.08 |
GUN125,126..CAMP,MAP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
GUN11#,12#,13#,TGN11#,12#..THP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN12#,13#,TGN120,121,1
36..THP..(DCRL,HTWC)
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - |
GUN122,126,TGN121..PKN
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - |
GUN126..PKN
|
6733D0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.03 |
GUN125,135..KEN
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.03 |
GUN125,126..GHA,KEN
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.01 |
GUN122,125,126,13#,LAN125,TGN120,121,136..SA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.01 |
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..SA
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.09 |
GUN126..MMR
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.08 |
GUN125..MA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.08 |
GUN125,126..MA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN11#,12#,13#,TGN11#,12#..THP
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GGN125,GUN12#,13#,TGN12#,136..THP
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - |
GUN122,126,TGN121..PKN
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - |
GUN126..PKN
|
6733C0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.03 |
GUN122,125,126,13#,LAN125,TGN120,121,136..KEN,SA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.03 |
GGN125,GUN122,125,126,13#,LAN125,TGN121,126,136..GHA,KEN,MMR,SA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.01 |
GUN122,126,TGN121..PKN
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.01 |
GUN126..PKN
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.08 |
GUN125..MA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.08 |
GUN125,126..MA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN11#,12#,13#,TGN11#,12#..THP
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GGN125,GUN12#,13#,TGN120,121,126,136..THP
|
6733B0 |
| HILUX | 2020.06 - 2023.01 |
GGN125,GUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD,KS,MD,MMD,MS,SD,SS,SX,TD,T
S,TX
|
6723A0 |
| HILUX | 2020.06 - 2022.01 |
GUN122,126,TGN121..PKN
|
6723A0 |
| HILUX | 2020.06 - 2021.11 |
GUN125,126..GHA
|
6723A0 |
| HILUX | 2015.05 - 2021.05 |
GGN12#..M,S;GGN135,GUN112,12#,13#,KUN112,12#,13#,LAN125,TGN11#,120,121,126,136..KD
C,KSC,MDC,MSC,PDC,PSC,SDC,SSC,SXT,TDC,TSC,TXT
|
672390 |
Related Parts
| Part Number | Reference |
|---|---|
| 44610-0K560 | BOOSTER ASSY, BRAKE |
| 44610-0K570 | BOOSTER ASSY, BRAKE |
| 44610-0K580 | BOOSTER ASSY, BRAKE |
| 44610-0K590 | BOOSTER ASSY, BRAKE |
| 44610-0K600 | BOOSTER ASSY, BRAKE |
| 44610-0K620 | BOOSTER ASSY, BRAKE |
| 44610-0K630 | BOOSTER ASSY, BRAKE |
| 44610-0K640 | BOOSTER ASSY, BRAKE |
| 44610-0K650 | BOOSTER ASSY, BRAKE |
| 44610-0K810 | BOOSTER ASSY, BRAKE |
| 44610-71010 | BOOSTER ASSY, BRAKE |
| 44610-71020 | BOOSTER ASSY, BRAKE |
Toyota part number 47264-04010 corresponds to CLEVIS, BRAKE MASTER CYLINDER PUSH ROD. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
