Toyota 47234-45010 TUBE, RESERVOIR, NO.1
🔍 Click image to enlarge
Thumbnail 1 for 47234-45010
Thumbnail 2 for 47234-45010

Toyota 47234-45010 TUBE, RESERVOIR, NO.1

47234-45010

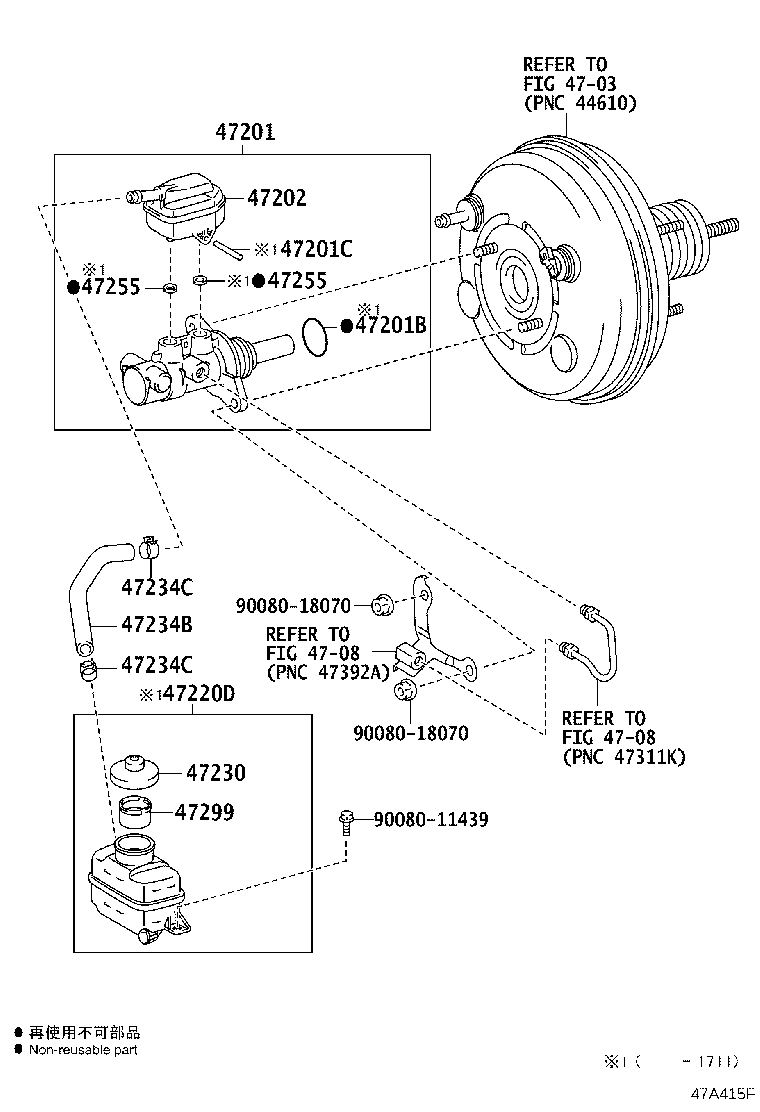

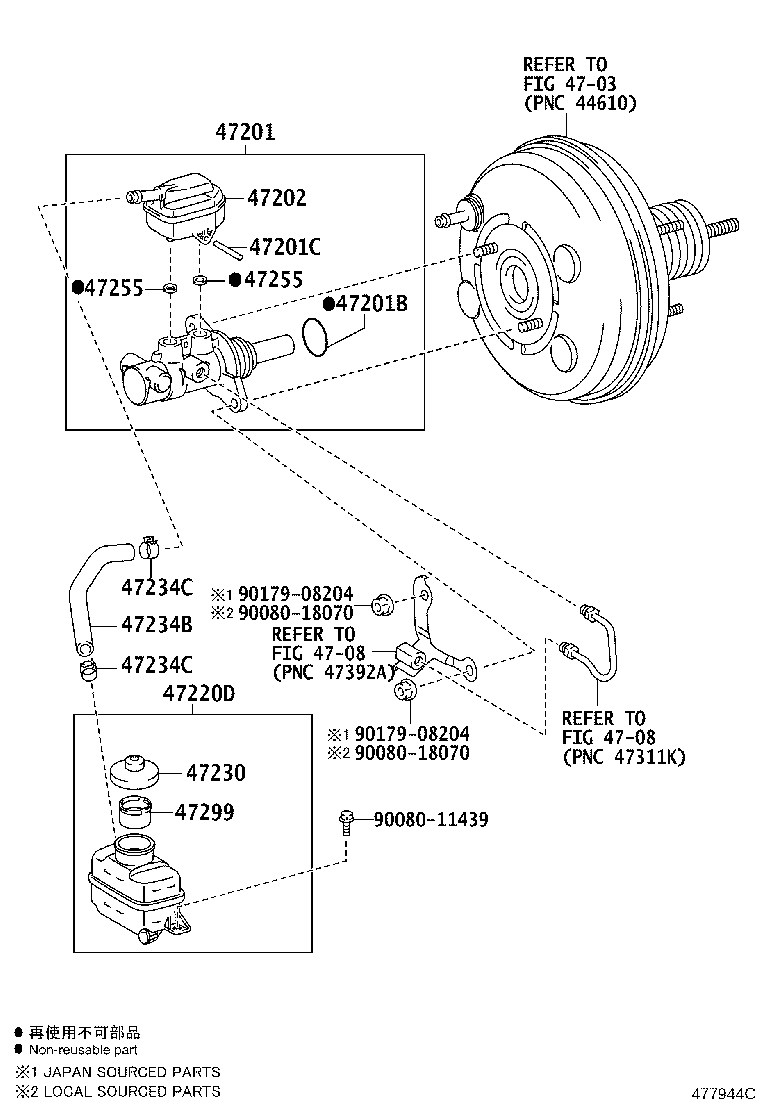

Catalog: 622430 🔗 PNC: 47234B - TUBE, RESERVOIR, NO.1
Part overview: OEM reference 47234-45010 for TUBE, RESERVOIR, NO.1. This page currently lists 5 fitment groups. Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B

NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.

  • OEM-quality replacement parts
  • Wholesale supply for distributors
  • Worldwide shipping support

Send the part number and quantity to receive a quotation.

Contact Us for Quote
Request a Quote Chat on WhatsApp
Email: [email protected]

Specifications

Brand NeoZeroAuto
Part Name Code 47234B
Manufacturer Part Number 47234-45010
Part Description TUBE, RESERVOIR, NO.1
Condition New
Quantity Per Vehicle 1
SKU 47234-45010
Catalog 622430
PNC 47234B
PNC Group TUBE, RESERVOIR, NO.1

Vehicle Fitment

Model Name Fr-To Model Description Catalog
SIENNA 2017.11 - 2020.09
GSL3#
622430
SIENNA 2016.08 - 2017.11
GSL3#
622430
SIENNA 2014.09 - 2016.08
GSL3#
622430
SIENNA 2010.01 - 2014.09
GSL30,33;GSL35..LE,XLE
622430
SIENNA 2010.01 - 2013.08
ASL30;GSL35..STD
622430

Related Parts

Part Number Reference
47201-08080 CYLINDER SUB-ASSY, BRAKE MASTER
47201-0E060 CYLINDER SUB-ASSY, BRAKE MASTER
47201-48200 CYLINDER SUB-ASSY, BRAKE MASTER
47201-48202 CYLINDER SUB-ASSY, BRAKE MASTER
47220-0E060 RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-48200 RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47230-01030 CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-01031 CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47299-20060 STRAINER, BRAKE MASTER CYLINDER RESERVOIR
90015-AH002 RING, O(FOR BRAKE MASTER CYLINDER)
90029-15803 RING PIN, BRAKE MASTER CYLINDER
90029-48001 GROMMET, MASTER CYLINDER RESERVOIR

Toyota part number 47234-45010 corresponds to TUBE, RESERVOIR, NO.1. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.

For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
