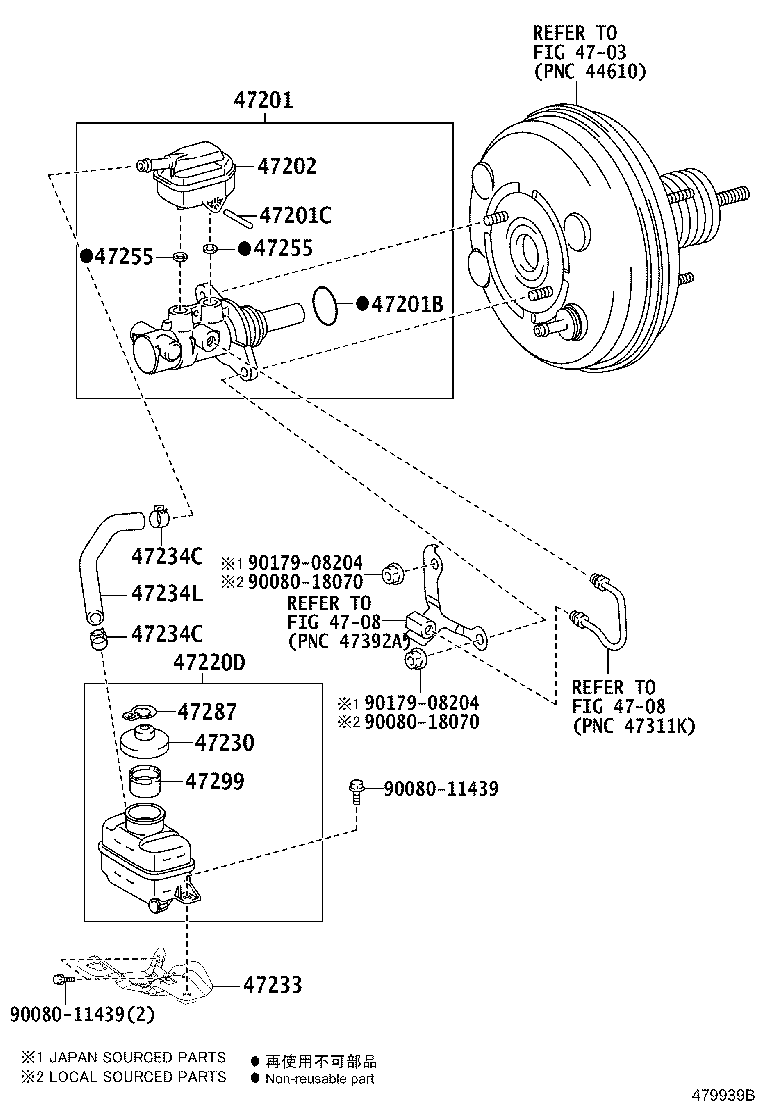

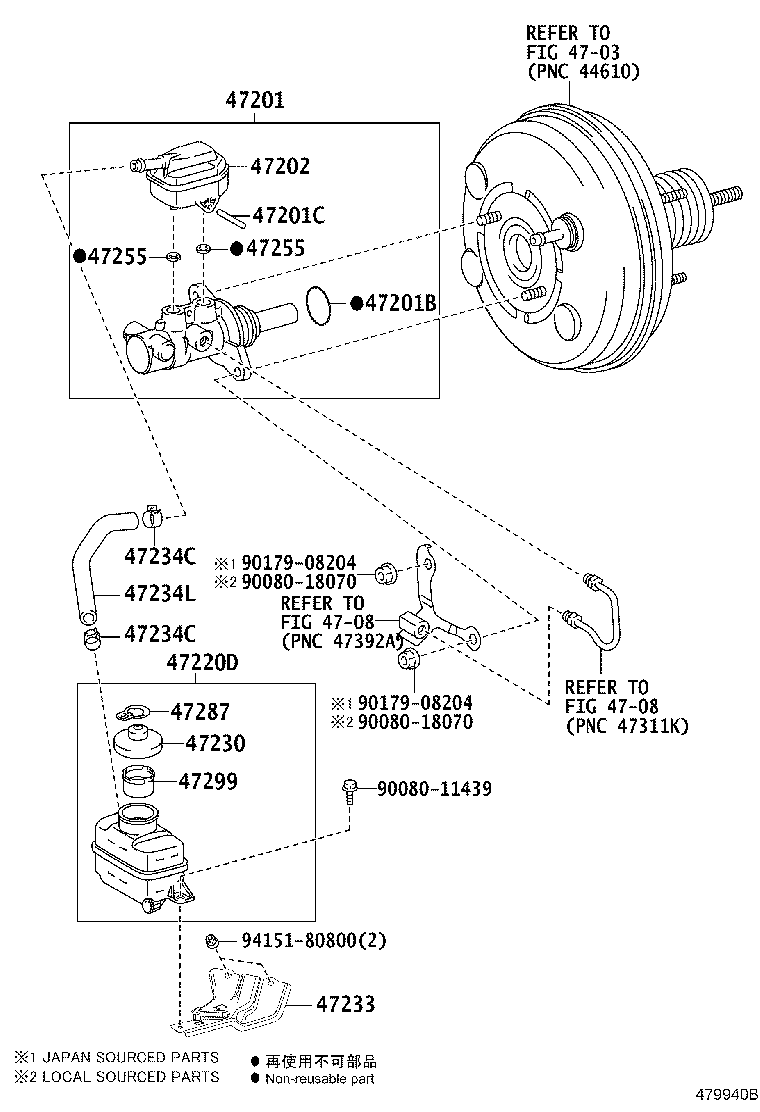

Toyota 47201-08080 CYLINDER SUB-ASSY, BRAKE MASTER
47201-08080
Part overview:
OEM reference 47201-08080 for CYLINDER SUB-ASSY, BRAKE MASTER.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47201 |
| Manufacturer Part Number | 47201-08080 |
| Part Description | CYLINDER SUB-ASSY, BRAKE MASTER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 47201-08080 |
| Catalog | 526420 |
| PNC | 47201 |
| PNC Group | CYLINDER SUB-ASSY, BRAKE MASTER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SIENNA | 2017.11 - 2018.01 |
GSL3#
|
622430 |
| HIGHLANDER (NAP) | 2017.09 - 2018.01 |
ASU50,GSU5#
|
526420 |
| SIENNA | 2017.09 - 2017.11 |
GSL3#
|
622430 |
Related Parts
| Part Number | Reference |
|---|---|
| 44255-48070 | TUBE, BRAKE STROKE SIMULATOR |
| 44785-0E020 | GASKET, BRAKE MASTER CYLINDER |
| 47201-0E060 | CYLINDER SUB-ASSY, BRAKE MASTER |
| 47201-48202 | CYLINDER SUB-ASSY, BRAKE MASTER |
| 47201-48210 | CYLINDER SUB-ASSY, BRAKE MASTER |
| 47207-48070 | CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR |
| 47220-0E070 | RESERVOIR ASSY, BRAKE MASTER CYLINDER |
| 47220-48200 | RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER |
| 47220-48220 | RESERVOIR ASSY, BRAKE MASTER CYLINDER |
| 47230-01030 | CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER |
| 47230-01031 | CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER |
| 47230-11010 | CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER |
Toyota part number 47201-08080 corresponds to CYLINDER SUB-ASSY, BRAKE MASTER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
