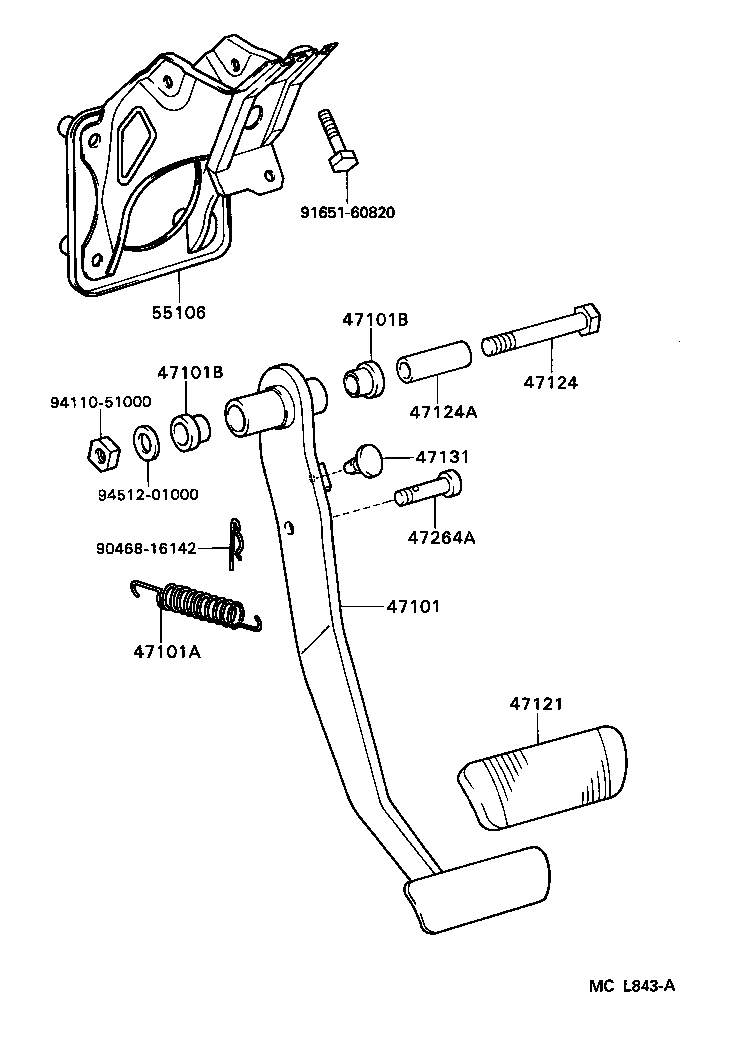

Toyota 47101-06010 PEDAL SUB-ASSY, BRAKE
47101-06010
Part overview:
OEM reference 47101-06010 for PEDAL SUB-ASSY, BRAKE.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47101 |
| Manufacturer Part Number | 47101-06010 |
| Part Description | PEDAL SUB-ASSY, BRAKE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 47101-06010 |
| Catalog | 283450 |
| PNC | 47101 |
| PNC Group | PEDAL SUB-ASSY, BRAKE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SOLARA | 2002.07 - 2002.12 |
ACV20..MTM
|
286410 |
| SOLARA | 1998.06 - 2002.07 |
ACV20,MCV20,SXV20..MTM
|
286410 |
| CAMRY (NAP) | 1996.07 - |
MCV20,SXV20..NAP..MTM
|
283460 |
| CAMRY (NAP) | 1991.09 - 1996.07 |
SXV10,VCV10..NAP..MTM
|
283450 |
Related Parts
| Part Number | Reference |
|---|---|
| 31321-14020 | PAD, BRAKE PEDAL |
| 47101-06020 | PEDAL SUB-ASSY, BRAKE |
| 47121-14010 | PAD, BRAKE PEDAL |
| 47121-AC010 | PAD, BRAKE PEDAL |
| 55106-06010 | SUPPORT SUB-ASSY, BRAKE PEDAL |
| 55106-33010 | SUPPORT SUB-ASSY, BRAKE PEDAL |
| 90101-10039 | SHAFT, BRAKE PEDAL |
| 90249-08256 | PIN(FOR PUSH ROD) |
| 90386-13015 | BUSH(FOR BRAKE PEDAL) |
| 90387-10003 | COLLAR(FOR BRAKE PEDAL SHAFT) |
| 90507-14024 | SPRING(FOR BRAKE PEDAL RETURN) |
| 90541-06032 | CUSHION(FOR STOP LAMP SWITCH) |
Toyota part number 47101-06010 corresponds to PEDAL SUB-ASSY, BRAKE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
