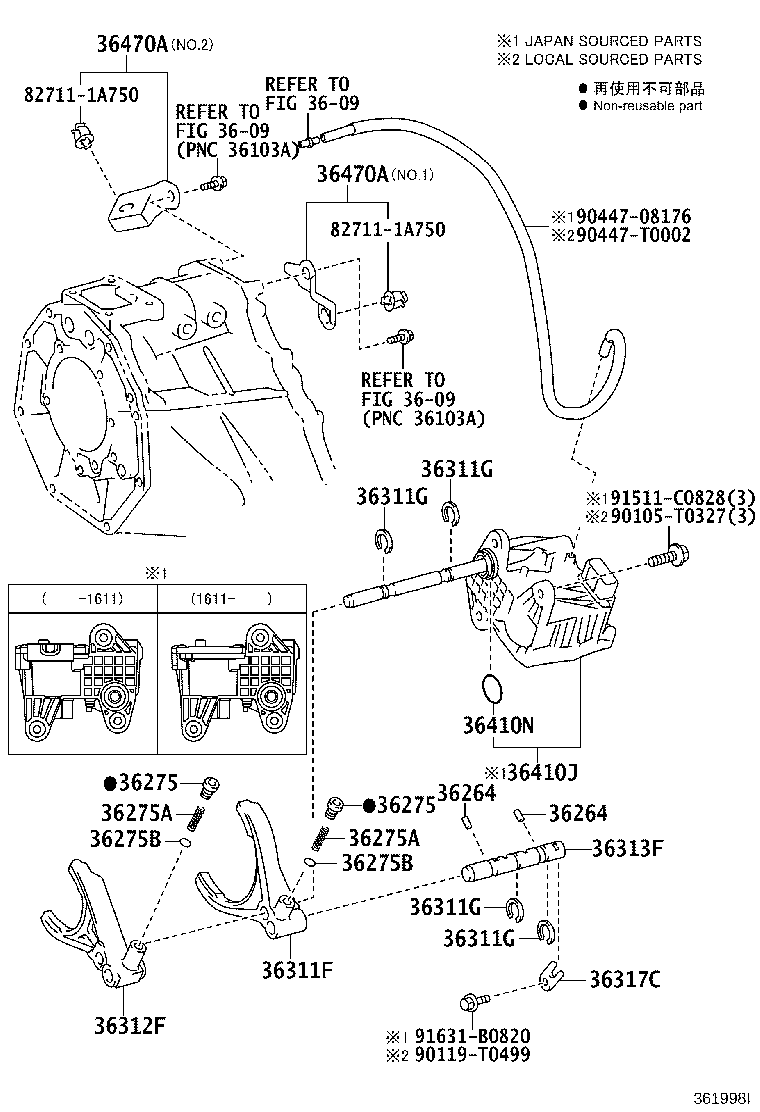

Toyota 36410-71010 ACTUATOR ASSY, TRANSFER SHIFT
36410-71010
Part overview:
OEM reference 36410-71010 for ACTUATOR ASSY, TRANSFER SHIFT.
This page currently lists 16 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 36410J |
| Manufacturer Part Number | 36410-71010 |
| Part Description | ACTUATOR ASSY, TRANSFER SHIFT |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 36410-71010 |
| Catalog | 671490 |
| PNC | 36410J |
| PNC Group | ACTUATOR ASSY, TRANSFER SHIFT |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (DOUBLE CAB) | 2024.08 - |
GGN125
*381
|
6733E0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.10 |
GGN125..LA,SA
*381
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GGN125..GCC
*381
|
6733D0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.01 |
GGN125..SA
*381
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.10 |
GGN125..LA
*381
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GGN125..GCC
*381
|
6733C0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.01 |
GGN125..SA
*381
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.10 |
GGN125..AGTP
*381
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GGN125..GCC
*381
|
6733B0 |
| HILUX | 2020.06 - 2021.10 |
GGN125
*381
|
6723A0 |
| 4RUNNER | 2019.08 - 2024.08 |
GRN285
LIMITED PACKAGE
|
671490 |
| 4RUNNER | 2019.08 - 2020.06 |
GRN285
NIGHTSHADE EDITION
|
671490 |
| 4RUNNER | 2019.08 - |
GRN285
|
671490 |
| HILUX | 2015.05 - 2020.10 |
GGN125
*381
|
672390 |
| HILUX | 2015.05 - 2016.11 |
GUN125..6FC..L;KUN126..ADC..5FC..(S,X);KUN126,TGN126..ATM..(GCC,PKN);KUN126,TGN126
GUN125..6FC..(M,S)..GCC
..RHD..ATM..(L,M,S)..GEN;GUN125,126,KUN125,126,LAN125,TGN126..MTM
*381:REFER TO ILL.
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITHOUT,*381:REFER TO ILL.
|
672390 |
| HILUX | 2015.05 - 2016.10 |
KUN126..TDC..5FC..S..LA;KUN126..LHD..5FC..M..GEN;TGN126..LHD..6FC..(GEN,SA);KUN126
GUN125..6FC..L;TGN126..6FC..GCC;KUN126..ADC..5FC..(S,X);KUN126..RHD..5FC..(L,M,S).
..5FC..(H,M)..(LA,SA,VN);KUN126..TDC..5FC..(H,X)..(GEN,LA);GUN125,126,KUN125,TGN12
.GEN
8..ATM..(H,M,S,X)
*381
AUTOMATIC DISCONNECTING DIFFERENTIAL-WITH,*381
|
672390 |
Related Parts
| Part Number | Reference |
|---|---|
| 33555-35190 | BOOT, TRANSFER FRONT DRIVE SHIFT |
| 33593-35030 | PLUG, SHIFT DETENT BALL SPRING |
| 36302-35011 | FORK, TRANSFER GEAR SHIFT, NO.2 |
| 36303-35200-B0 | KNOB SUB-ASSY, SHIFT LEVER |
| 36303-35210-B0 | KNOB SUB-ASSY, SHIFT LEVER |
| 36303-35210-B1 | KNOB SUB-ASSY, SHIFT LEVER |
| 36304-35051 | RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER |
| 36304-35061 | RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER |
| 36311-34010 | FORK, TRANSFER GEAR SHIFT, NO.1 |
| 36311-34011 | FORK, TRANSFER GEAR SHIFT, NO.1 |
| 36311-35030 | FORK, TRANSFER GEAR SHIFT, NO.1 |
| 36312-34010 | FORK, TRANSFER GEAR SHIFT, NO.2 |
Toyota part number 36410-71010 corresponds to ACTUATOR ASSY, TRANSFER SHIFT. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
