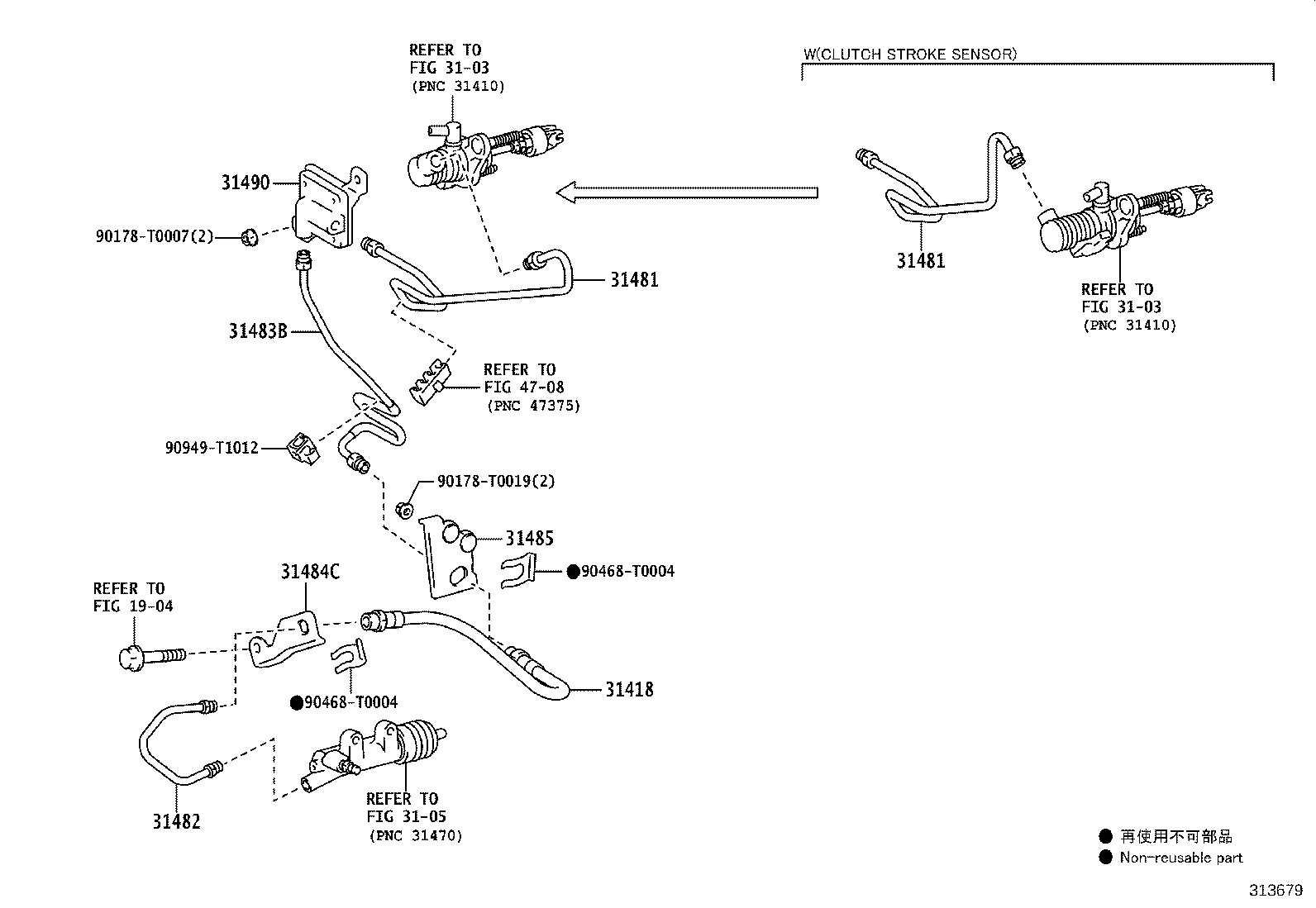

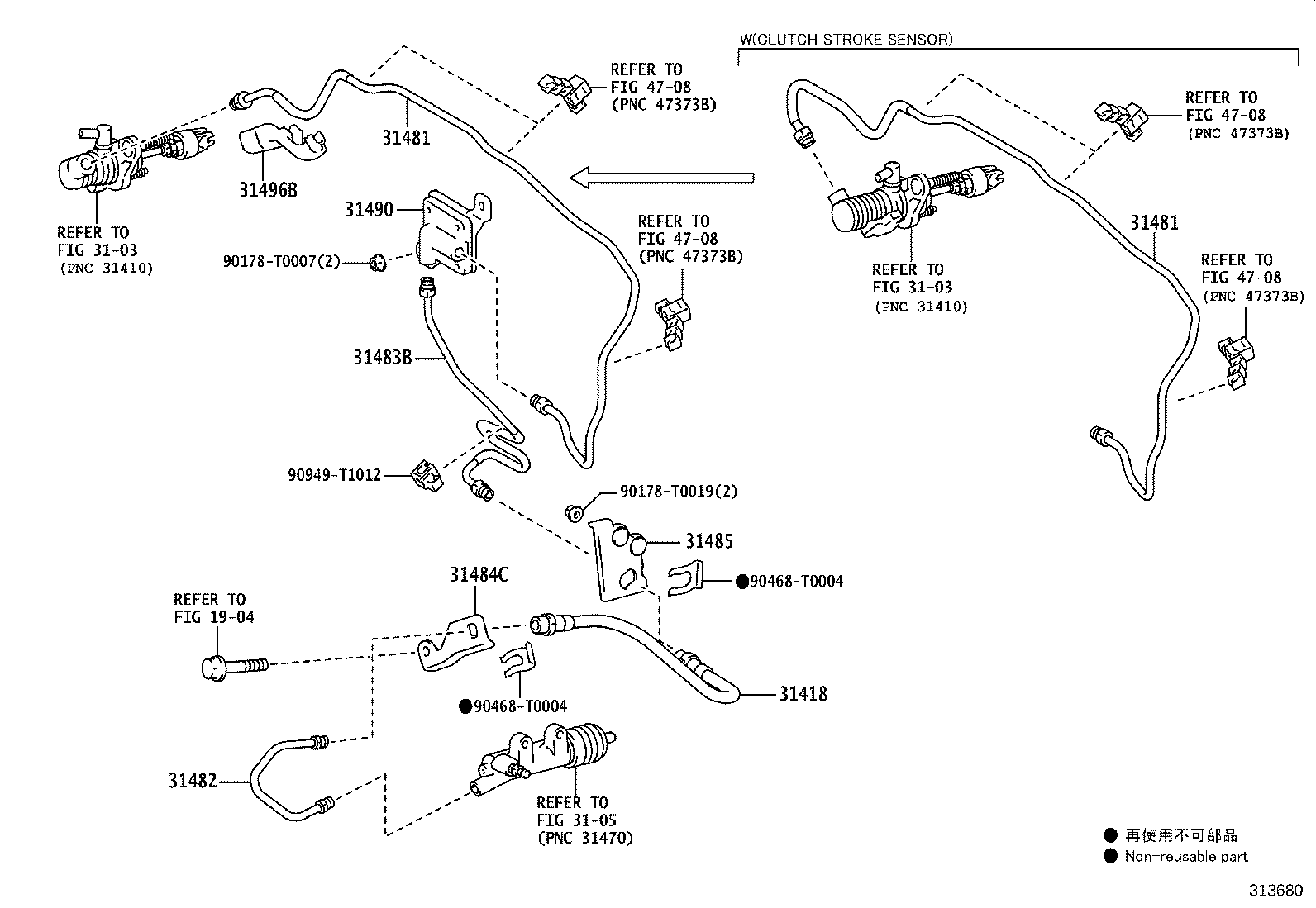

Toyota 31481-KK040 TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-KK040
Part overview:
OEM reference 31481-KK040 for TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE.
This page currently lists 22 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 31481 |
| Manufacturer Part Number | 31481-KK040 |
| Part Description | TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 31481-KK040 |
| Catalog | 672390 |
| PNC | 31481 |
| PNC Group | TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (SCB/XTR) | 2024.11 - |
GUN126,136..6F..H..SA
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.11 - |
GUN126..S..IND;GUN126,136..6F..H..(IND,KEN,SA)
|
6733E0 |
| HILUX (SCB/XTR) | 2024.02 - 2024.10 |
GUN126,136..6F..H..SA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.10 - 2024.12 |
GUN126..6F..KEN
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.10 - 2024.10 |
GUN126,136..6F..H..SA
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.10 - 2024.09 |
GUN126..6F..IND
|
6733D0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.03 |
GUN126..6F..KEN
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.01 |
GUN126,136..6F..H..SA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.01 |
GUN126,136..6F..H..SA
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.09 |
GUN126..6F..IND
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN126..6F..H..TH
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GUN126..RHD..THP..6F..H
GUN126..6F..S..ARL
VSC-WITH(*HSAC & *TSC & *DAC & LSD)
|
6733C0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.03 |
GUN126,136..6F..H..(KEN,SA)
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.01 |
GUN126,136..6F..H..SA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.09 |
GUN126..6F..IND
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN126..6F..H..TH
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GUN126,136..RHD..THP..6F..H
GUN126..6F..S..ARL
VSC-W(*HSAC & *TSC & *DAC)
|
6733B0 |
| HILUX | 2020.06 - 2021.11 |
GUN126,136..RHD..6F..H
|
6723A0 |
| HILUX | 2020.06 - 2021.08 |
GUN126..(TD,TX)..6F..S..ARL
VEHICLE STABILITY CONT-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
|
6723A0 |
| HILUX | 2019.08 - 2020.05 |
GUN126..TXT..6F..IV3
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
|
672390 |
| HILUX | 2019.05 - 2020.05 |
GUN126..TDC..6F..S..ARL
VEHICLE STABILITY CONTROL-W(*HSAC & TRAILER SWAY CONTROL & *DAC)
|
672390 |
| HILUX | 2015.05 - 2021.02 |
GUN126..RHD..6F..H..GEN;GUN126,136..6F..(H,M)..(ARL,KEN,SA,TH)
|
672390 |
Related Parts
| Part Number | Reference |
|---|---|
| 31301-0K280 | PEDAL SUB-ASSY, CLUTCH |
| 31301-KK020 | PEDAL SUB-ASSY, CLUTCH |
| 31301-KK040 | PEDAL SUB-ASSY, CLUTCH |
| 31301-KK080 | PEDAL SUB-ASSY, CLUTCH |
| 31301-KK100 | PEDAL SUB-ASSY, CLUTCH |
| 31321-02020 | PAD, CLUTCH PEDAL |
| 31353-26010 | HOLDER, CLUTCH PEDAL SPRING |
| 31394-25010 | SPRING, PEDAL W/HOOK |
| 31394-KK010 | SPRING, PEDAL W/HOOK |
| 31395-33020 | HOOK, PEDAL SPRING |
| 31481-KK010 | TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE |
| 31481-KK020 | TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE |
Toyota part number 31481-KK040 corresponds to TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
