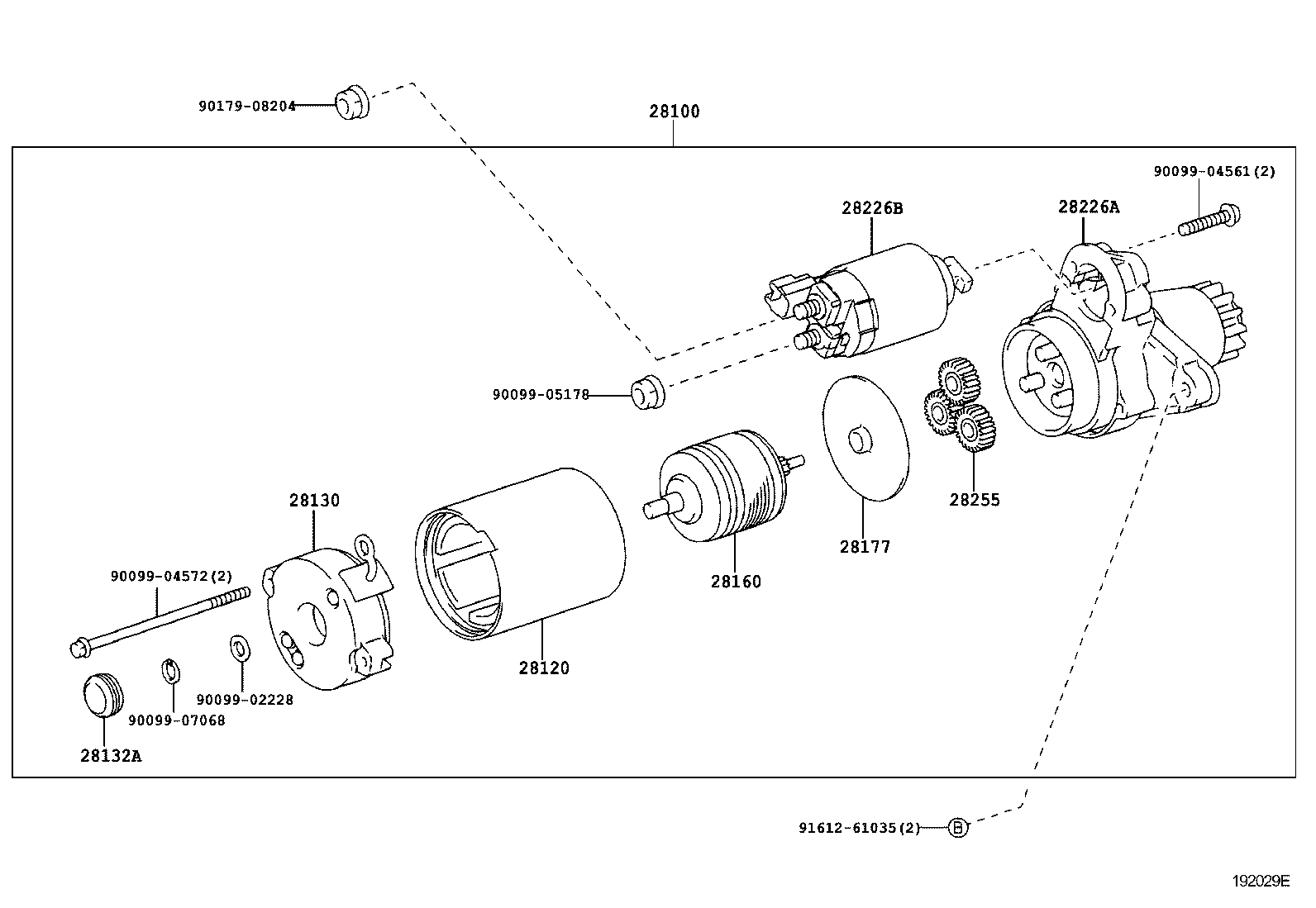

Toyota 28100-28041 STARTER ASSY
28100-28041
Part overview:
OEM reference 28100-28041 for STARTER ASSY.
This page currently lists 10 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 28100 |
| Manufacturer Part Number | 28100-28041 |
| Part Description | STARTER ASSY |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 28100-28041 |
| Catalog | 277410 |
| PNC | 28100 |
| PNC Group | STARTER ASSY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CAMRY (NAP) | 2004.06 - |
2AZFE,1MZFE..ACV30,MCV30..NAP
12V 1.6KW
|
283470 |
| CAMRY (JPP) | 2004.06 - |
2AZFE,1MZFE..ACV30,MCV30..JPP
12V 1.6KW
|
284470 |
| SCION TC | 2004.05 - 2006.05 |
2AZFE..ANT10
12V 1.6KW
|
277410 |
| HIGHLANDER | 2003.08 - |
2AZFE..ACU2#
12V 1.6KW
|
522410 |
| SOLARA | 2003.07 - 2006.05 |
2AZFE..ACV30..5F,5FC
12V 1.6KW
|
286420 |
| SOLARA | 2003.07 - 2005.03 |
2AZFE..ACV30..4FC
12V 1.6KW
|
286420 |
| CAMRY (NAP) | 2001.08 - 2004.06 |
1MZFE..MCV30..NAP..(LE,XLE)..5FC
1MZFE..MCV30..NAP..SE..5FC;2AZFE,1MZFE..ACV30,MCV30..NAP..4FC
12V 1.6KW
|
283470 |
| CAMRY (JPP) | 2001.07 - 2004.06 |
2AZFE,1MZFE..ACV30,MCV30..JPP
12V 1.6KW
|
284470 |
| LEXUS ES300/330 | 2001.07 - 2003.07 |
1MZFE..MCV30
12V 1.6KW
|
282470 |
| SOLARA | 2001.07 - 2002.12 |
2AZFE..ACV20
12V 1.6KW
|
286410 |
Related Parts
| Part Number | Reference |
|---|---|
| 28100-20020 | STARTER ASSY |
| 28100-20021 | STARTER ASSY |
| 28120-28040 | YOKE ASSY, STARTER |
| 28120-28060 | YOKE ASSY, STARTER |
| 28130-20020 | FRAME ASSY, STARTER COMMUTATOR END |
| 28132-28040 | COVER, STARTER COMMUTATOR END FRAME |
| 28160-28040 | ARMATURE ASSY, STARTER |
| 28177-28040 | PLATE(FOR STARTER ARMATURE) |
| 28226-28041 | STARTER KIT, MOTOR TERMINAL |
| 28226-28051 | STARTER KIT, REPAIR SERVICE |
| 28255-20020 | GEAR, PLANET |
| 28255-28040 | GEAR, PLANET |
Toyota part number 28100-28041 corresponds to STARTER ASSY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
