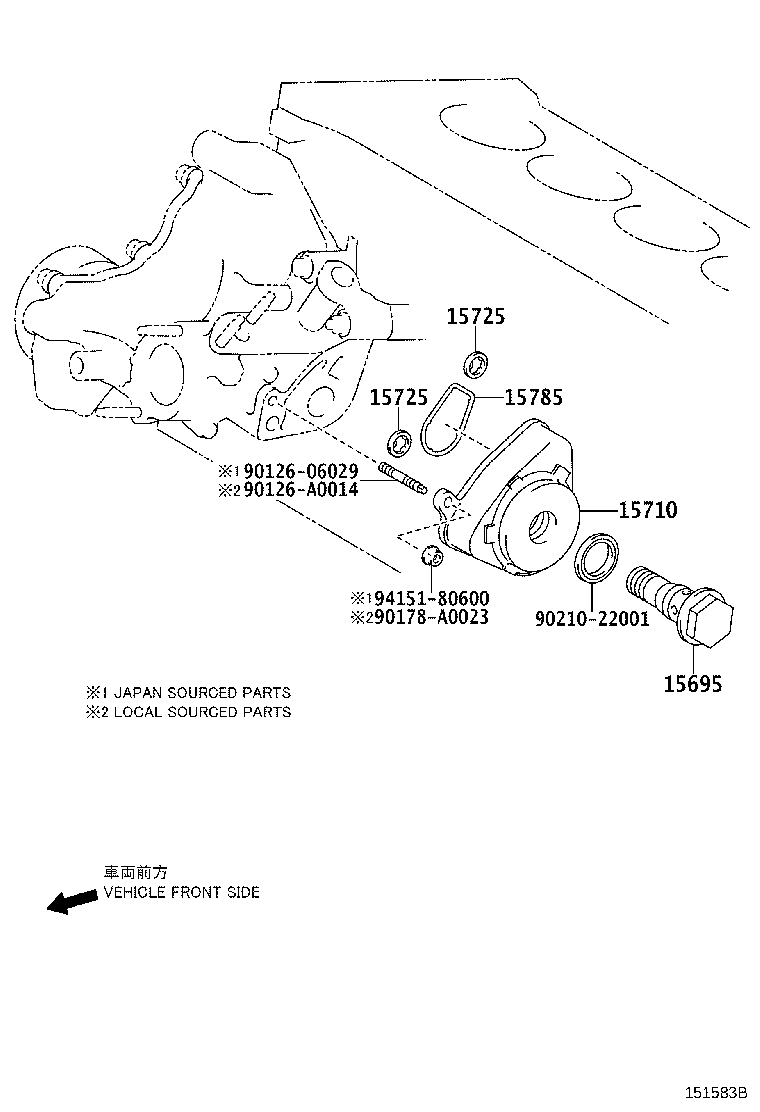

Toyota 15710-31021 COOLER ASSY, OIL
15710-31021
Part overview:
OEM reference 15710-31021 for COOLER ASSY, OIL.
This page currently lists 18 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 15710 |
| Manufacturer Part Number | 15710-31021 |
| Part Description | COOLER ASSY, OIL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 15710-31021 |
| Catalog | 286430 |
| PNC | 15710 |
| PNC Group | COOLER ASSY, OIL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SIENNA | 2014.09 - 2016.08 |
2GRFE..GSL30;2GRFE..GSL35..LE
TOWING PACKAGE-FOR 3500LBS
|
622430 |
| HIGHLANDER (NAP) | 2013.12 - 2016.11 |
2GRFE..GSU5#
TOWING PACKAGE-5000LBS
|
526420 |
| LEXUS RX350/450H(NAP | 2012.07 - |
2GRFE..GGL15..NAP..8FC
|
523420 |
| VENZA | 2012.05 - |
2GRFE..GGV1#
TOWING PACKAGE-WITH
|
286430 |
| LEXUS RX350/450H(NAP | 2012.04 - |
2GRFE..GGL1#..NAP..6FC
TOWING PACKAGE-3500LBS
|
523420 |
| LEXUS RX350/450H(JPP | 2012.03 - |
2GRFE..GGL1#..JPP
TOWING PACKAGE-3500LBS(W/T.CONVERTER)
|
521430 |
| HIGHLANDER (NAP) | 2010.08 - |
2GRFE..GSU4#
TOWING PACKAGE-5000LBS
|
526410 |
| SIENNA | 2010.01 - 2014.09 |
2GRFE..GSL30;2GRFE..GSL35..LE,XLE
TOWING PACKAGE-FOR 3500LBS
|
622430 |
| SIENNA | 2010.01 - 2013.08 |
2GRFE..GSL35..STD
TOWING PACKAGE-FOR 3500LBS
|
622430 |
| HIGHLANDER (NAP) | 2009.10 - 2010.08 |
2GRFE..GSU4#
TOWING PACKAGE-5000LBS
|
526410 |
| LEXUS RX350/450H(NAP | 2009.01 - 2012.04 |
2GRFE..GGL1#..NAP
TOWING PACKAGE-3500LBS
|
523420 |
| LEXUS RX350/450H(JPP | 2008.12 - 2012.03 |
2GRFE..GGL1#..JPP
TOWING PACKAGE-3500LBS(W/T.CONVERTER)
|
521430 |
| VENZA | 2008.11 - 2012.05 |
2GRFE..GGV1#
TOWING PACKAGE-WITH
|
286430 |
| SIENNA | 2007.08 - |
2GRFE..GSL2#
TOWING PACKAGE-FOR 3500LBS
|
622420 |
| HIGHLANDER (JPP) | 2007.05 - 2010.08 |
2GRFE..GSU4#
TOWING PACKAGE-5000LBS
|
522420 |
| SIENNA | 2006.12 - 2009.01 |
2GRFE..GSL2#
|
622420 |
| LEXUS RX330/350(JPP) | 2006.05 - 2008.12 |
2GRFE..GSU3#..JPP
TOWING PACKAGE-3500LBS
|
521420 |
| LEXUS RX330/350(NAP) | 2006.05 - |
2GRFE..GSU3#..NAP
TOWING PACKAGE-3500LBS
|
523410 |
Related Parts
| Part Number | Reference |
|---|---|
| 11496-31010 | GASKET, OIL HOLE COVER |
| 15695-31010 | BOLT, OIL COOLER UNION |
| 15695-62030 | BOLT, OIL COOLER UNION |
| 15710-36010 | COOLER ASSY, OIL |
| 15725-36010 | GASKET, OIL COOLER COVER |
| 15767-31010 | PIPE, OIL COOLER |
| 15767-31020 | PIPE, OIL COOLER |
| 15771-31010 | PIPE, OIL, NO.1 |
| 15772-31030 | PIPE, OIL |
| 15781-31010 | BRACKET, OIL COOLER, NO.1 |
| 15785-31010 | GASKET, OIL COOLER |
| 15785-36010 | GASKET, OIL COOLER |
Toyota part number 15710-31021 corresponds to COOLER ASSY, OIL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
