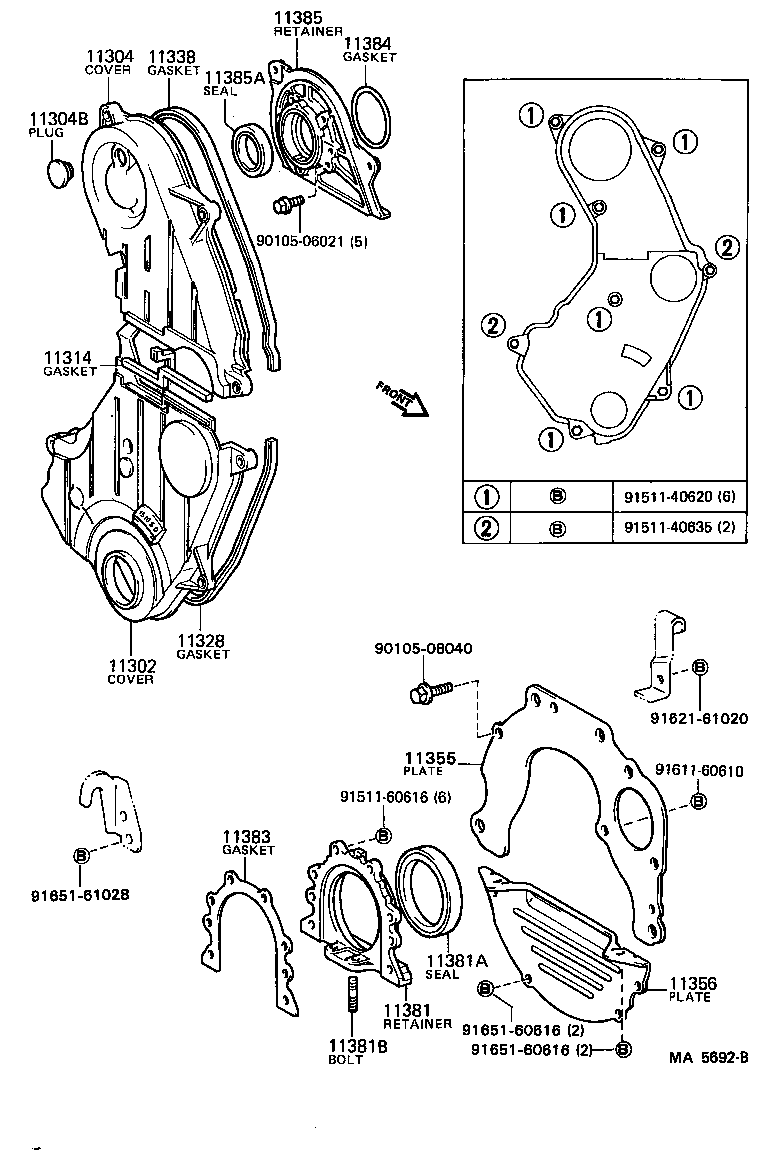

Toyota 11383-63010 GASKET, ENGINE REAR OIL SEAL RETAINER
11383-63010
Part overview:
OEM reference 11383-63010 for GASKET, ENGINE REAR OIL SEAL RETAINER.
This page currently lists 7 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 11383 |
| Manufacturer Part Number | 11383-63010 |
| Part Description | GASKET, ENGINE REAR OIL SEAL RETAINER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 11383-63010 |
| Catalog | 252440 |
| PNC | 11383 |
| PNC Group | GASKET, ENGINE REAR OIL SEAL RETAINER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CAMRY (JPP) | 1988.08 - 1989.07 |
3SFE..SV2#
|
281440 |
| CAMRY (NAP) | 1988.07 - 1989.07 |
3SFE..SV21
|
283440 |
| CAMRY | 1987.10 - 1988.08 |
3SFE..SV2#
|
281430 |
| CELICA | 1987.08 - 1989.07 |
3SFE,3SGELC..ST162
|
252450 |
| CAMRY | 1986.08 - 1987.10 |
3SFE..SV21
|
281430 |
| CELICA | 1985.08 - 1987.08 |
2SELC,3S#..ST16#
|
252440 |
| CAMRY | 1983.01 - 1986.07 |
2SELC..SV11
|
281420 |
Related Parts
| Part Number | Reference |
|---|---|
| 11302-63010 | COVER SUB-ASSY, TIMING CHAIN OR BELT |
| 11302-74010 | COVER SUB-ASSY, TIMING CHAIN OR BELT |
| 11303-63010 | COVER, TIMING CHAIN OR BELT, NO.2 |
| 11303-74010 | COVER, TIMING CHAIN OR BELT, NO.2 |
| 11304-74010 | COVER, SUB-ASSY, TIMING BELT, NO.3 |
| 11319-63010 | GASKET, TIMING CHAIN NO.2 COVER |
| 11321-88360 | COVER SUB-ASSY, TIMING CHAIN OR BELT |
| 11322-88361 | COVER, TIMING CHAIN OR BELT, NO.2 |
| 11323-88360 | COVER, SUB-ASSY, TIMING BELT, NO.3 |
| 11328-63010 | GASKET, TIMING GEAR OR CHAIN COVER |
| 11328-74010 | GASKET, TIMING GEAR OR CHAIN COVER |
| 11328-88360 | GASKET, TIMING GEAR OR CHAIN COVER |
Toyota part number 11383-63010 corresponds to GASKET, ENGINE REAR OIL SEAL RETAINER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
