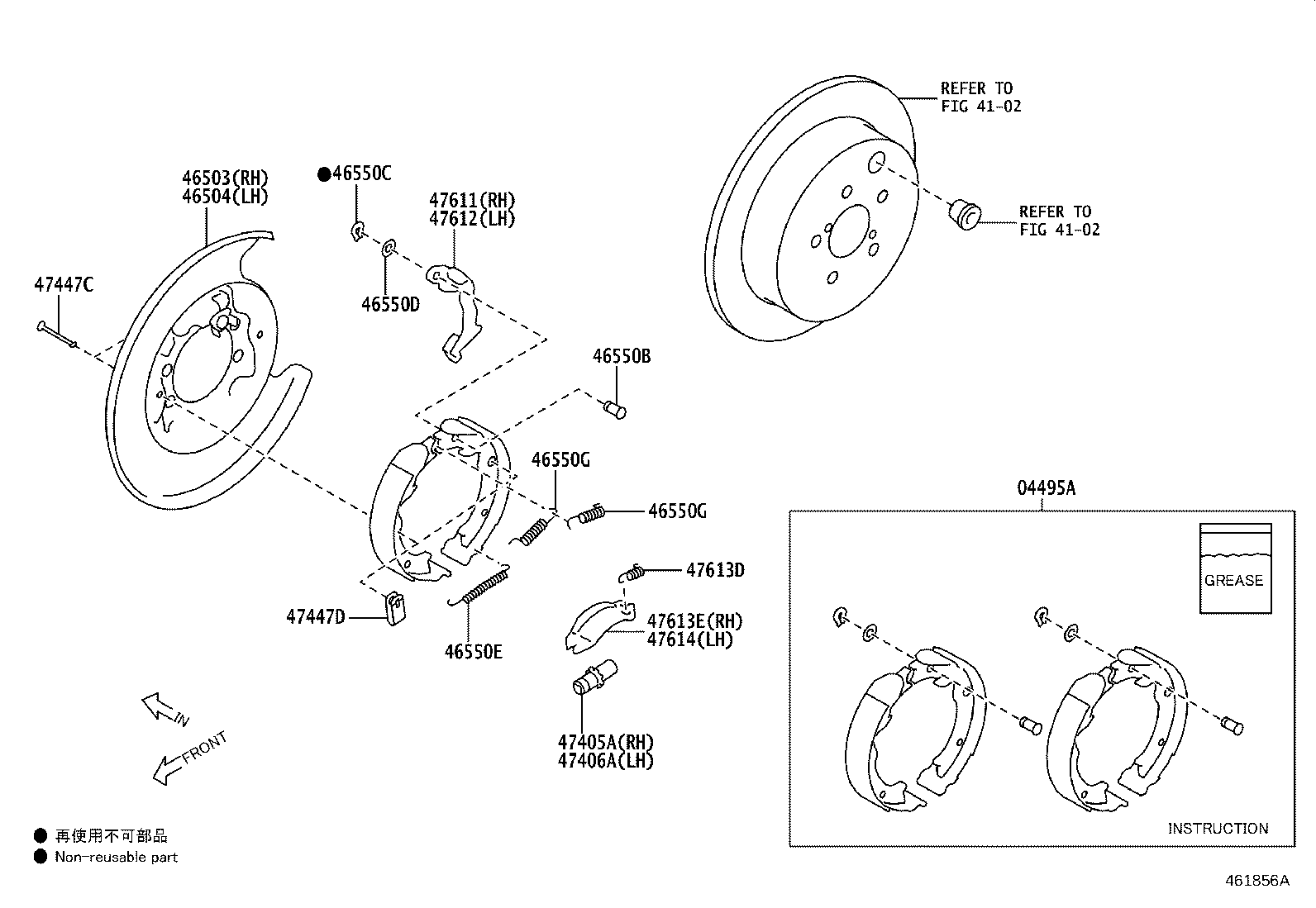

Toyota SU003-11485 PLATE SUB-ASSY, PARKING BRAKE, RH
SU003-11485
Part overview:
OEM reference SU003-11485 for PLATE SUB-ASSY, PARKING BRAKE, RH.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 46503 |
| Manufacturer Part Number | SU003-11485 |
| Part Description | PLATE SUB-ASSY, PARKING BRAKE, RH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | SU003-11485 |
| Catalog | 264430 |
| PNC | 46503 |
| PNC Group | PLATE SUB-ASSY, PARKING BRAKE, RH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| GR 86 | 2024.09 - |
ZN8..GRA
ZN8..(BASE,HIGH)..D
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
|
264430 |
| GR 86 | 2023.12 - |
ZN8..ORB
ZN8..(BASE,HIGH)..C
OPTION CODE=FH
OPTION CODE=CH
OPTION CODE=XH
OPTION CODE=AH
OPTION CODE=BH
|
264430 |
Related Parts
| Part Number | Reference |
|---|---|
| SU003-00544 | BRACKET, PARKING BRAKE CABLE SUPPORT |
| SU003-00545 | BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1 |
| SU003-00547 | CLAMP, NO.1(FOR PARKING BRAKE CABLE) |
| SU003-00636 | WASHER, TYPE C(FOR PARKING BRAKE SHOE) |
| SU003-00640 | PLATE SUB-ASSY, PARKING BRAKE, RH |
| SU003-00641 | PLATE SUB-ASSY, PARKING BRAKE, LH |
| SU003-00642 | SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) |
| SU003-00642 | SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) |
| SU003-00643 | LEVER, PARKING BRAKE SHOE, RH |
| SU003-00644 | LEVER, PARKING BRAKE SHOE, LH |
| SU003-00645 | PIN(FOR PARKING BRAKE SHOE) |
| SU003-00646 | SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) |
Toyota part number SU003-11485 corresponds to PLATE SUB-ASSY, PARKING BRAKE, RH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
