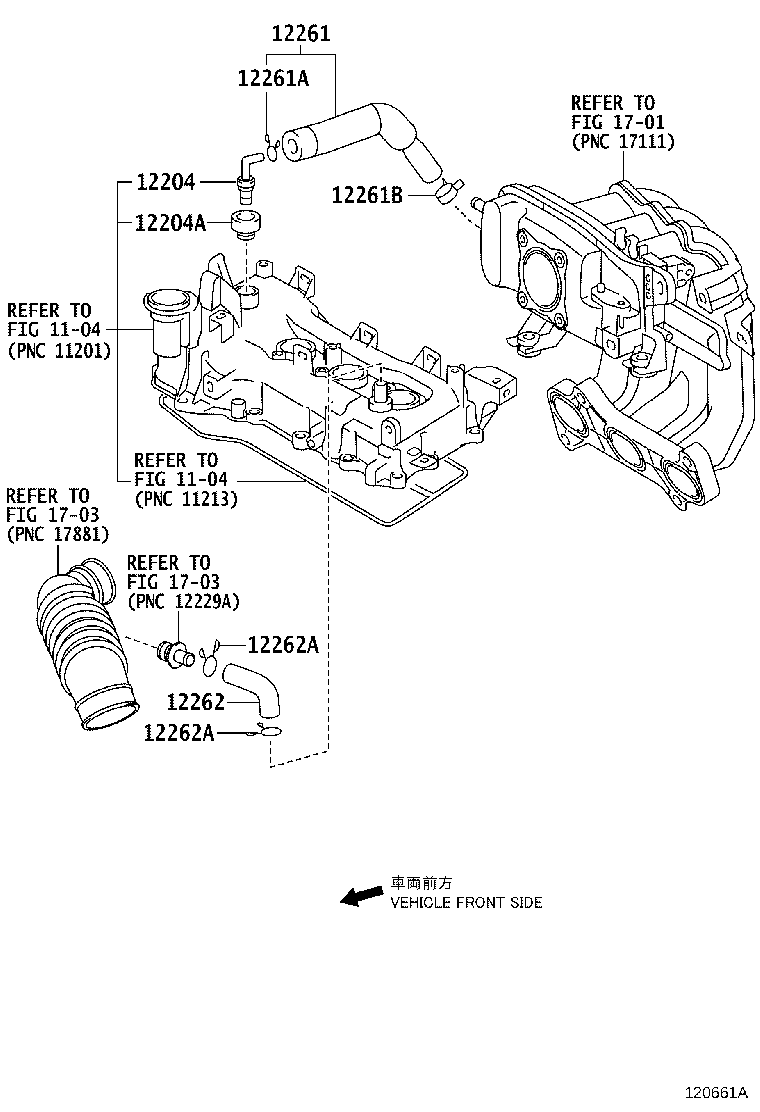

Toyota 90467-22010 CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-22010
Part overview:
OEM reference 90467-22010 for CLIP OR CLAMP(FOR VENTILATION HOSE).
This page currently lists 44 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 12261B |
| Manufacturer Part Number | 90467-22010 |
| Part Description | CLIP OR CLAMP(FOR VENTILATION HOSE) |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 90467-22010 |
| Catalog | 102410 |
| PNC | 12261B |
| PNC Group | CLIP OR CLAMP(FOR VENTILATION HOSE) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LAND CRUISER | 2023.09 - 2025.08 |
1VDFTV..VDJ79..RHD;1VDFTV..VDJL79..LX
|
781370 |
| LAND CRUISER | 2023.09 - 2024.09 |
1VDFTV..VDJ79..GCC;1VDFTV..VDJL79..STD;1VDFTV..VDJ76,78,L76,L78
|
781370 |
| LAND CRUISER | 2023.09 - |
1HZ..HZJ7#
|
781370 |
| C-HR | 2019.09 - 2021.12 |
8NRFTS..NGX10..RUS
|
528510 |
| C-HR | 2019.09 - |
8NRFTS..NGX50;8NRFTS..NGX10..EUR
|
528510 |
| C-HR | 2016.10 - 2019.09 |
8NRFTS..NGX10,50
|
528510 |
| LAND CRUISER | 2016.08 - 2023.09 |
1HZ..HZJ7#..GEN
1VDFTV..VDJ7#,L7#..CBU,IV
|
781370 |
| LAND CRUISER | 2016.08 - 2016.12 |
1HZ..HZJ76,78,79..GCC
|
781370 |
| YARIS | 2013.10 - 2016.07 |
3NRFE..NSP152
|
113320 |
| SCION IQ | 2011.07 - 2015.06 |
1NRFE..NGJ10
|
102410 |
| HILUX | 2011.07 - 2012.03 |
1KDFTV,2KDFTV..KUN2#,35..(THDCB,THSCB)..5F
CHILE SPEC(EURO 5 REGULATION)
|
672380 |
| HILUX | 2009.10 - 2010.05 |
1KDFTV,2KDFTV..KUN2#..THDCB,THSCB
CHILE SPEC
|
672370 |
| HILUX | 2009.08 - 2010.08 |
1KDFTV..KUN16,26..ARL
|
672370 |
| YARIS (FRP) | 2009.08 - |
1NRFE..NSP90..FRP
|
116520 |
| COROLLA NAP | 2008.01 - 2008.09 |
2ZRFE..ZRE142..NAP
NO.2
|
155460 |
| MATRIX | 2008.01 - 2008.09 |
2ZRFE..ZRE142
NO.2
|
152460 |
| COROLLA JPP | 2007.12 - 2008.09 |
2ZRFE..ZRE142..JPP
NO.2
|
151460 |
| SCION XD | 2007.06 - 2008.09 |
2ZRFE..ZSP110
NO.2
|
117420 |
| LAND CRUISER | 2007.01 - 2016.08 |
1VDFTV..VDJ7#
1HZ..HZJ7#
|
781370 |
| HIACE | 2006.03 - 2013.09 |
2KDFTV..KDH200,222..TH;2KDFTV..KDH202..GL..TH
NO.1
|
711350 |
| HIACE | 2006.03 - 2012.05 |
2KDFTV..KDH212..VN
NO.1
|
711350 |
| HIACE | 2006.03 - 2010.08 |
2KDFTV..KDH202..STD..TH;2KDFTV..KDH200..03S..4FC..GEN
NO.1
|
711350 |
| HIACE | 2006.03 - 2007.10 |
2KDFTV..KDH212..STD..SA
NO.1
|
711350 |
| HIACE | 2006.03 - 2007.09 |
2KDFTV..KDH202..4FC;2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200..06S..GCC
2KDFTV..KDH202..RHD..SRF..12S..GEN
NO.1
CKD PACKAGE(THAILAND),NO.1
|
711350 |
| HIACE | 2006.03 - 2006.10 |
2KDFTV..KDH200..ARL;2KDFTV..KDH22#..03S,14S;2KDFTV..KDH200..06S..GEN
NO.1
|
711350 |
| HIACE | 2006.03 - |
2KDFTV..KDH202..HRF..MA;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);
2KDFTV..KDH200..RHD..4D..5F..GEN
2KDFTV..KDH212..(10S,11S,16S)..(GCC,GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,1
6S)..5F..(GCC,GEN,MA,SA)
NO.1
CKD PACKAGE(MALAYSIA),NO.1
CKD PACKAGE(THAILAND),NO.1
|
711350 |
| LAND CRUISER | 2001.08 - 2007.01 |
1HDFTE..HDJ7#
|
781330 |
| HILUX 2WD | 2001.06 - 2004.12 |
3RZFE..RZN200
NO.2
|
672350 |
| TACOMA | 2000.09 - 2004.09 |
3RZFE..RZN161,171
CALIFORNIA(LEV) SPEC
|
674460 |
| TACOMA | 2000.09 - 2004.09 |
3RZFE..RZN196..DCB;2RZFE..RZN140,150..4FC
2RZFE..RZN140,150..W;3RZFE..RZN19#..RCB,XTR
CALIFORNIA(LEV) SPEC
|
675460 |
| TACOMA | 1999.09 - 2000.09 |
3RZFE..RZN161,171
CALIFORNIA(LEV) SPEC
|
674460 |
| TACOMA | 1999.09 - 2000.09 |
2RZFE,3RZFE..RZN140,150,19#
CALIFORNIA(LEV) SPEC
|
675460 |
| LAND CRUISER | 1999.08 - 2007.01 |
1HZ..HZJ71,78..STD;1HZ..HZJ79..GCC,GEN;1HZ..HZJ79..ARL..IV
|
781330 |
| LAND CRUISER | 1999.08 - 2001.08 |
1HZ..HZJ78..LX;1HZ..HZJ79..ARL..CBU
|
781330 |
| 4RUNNER | 1999.08 - 2000.08 |
3RZFE..RZN18#
CALIFORNIA SPEC,NO.2
|
671460 |
| TACOMA | 1999.06 - 2000.09 |
3RZFE..RZN161,171
NO.2
|
674460 |
| TACOMA | 1999.06 - 2000.09 |
2RZFE,3RZFE..RZN140,150,19#
NO.2
|
675460 |
| 4RUNNER | 1999.06 - 2000.08 |
3RZFE..RZN18#
NO.2
|
671460 |
| LAND CRUISER | 1993.05 - 2000.07 |
1HZ..HZJ70,75..RHD..(PIC,SOT)..GEN..CBU
|
781330 |
| LAND CRUISER | 1993.05 - 1999.11 |
1HZ..HZJ75..SA
|
781330 |
| LAND CRUISER | 1993.05 - 1999.08 |
1HZ..HZJ7#..HT..GEN;1HZ..HZJ75..ARL,GCC;1HZ..HZJ75..GEN..IV;1HZ..HZJ75..LHD..PIC..
GEN..CBU
|
781330 |
| LAND CRUISER | 1993.05 - 1996.04 |
1KZT..KZJ7#
|
781330 |
| LAND CRUISER | 1993.05 - 1995.01 |
1PZ..PZJ7#
1HZ..HZJ70..ARL
|
781330 |
| LAND CRUISER | 1990.03 - 1993.05 |
1PZ..PZJ7#
1HZ..HZJ7#
|
781330 |
Related Parts
| Part Number | Reference |
|---|---|
| 12204-47030 | VALVE SUB-ASSY, VENTILATION |
| 12204-47050 | VALVE SUB-ASSY, VENTILATION |
| 12261-47050 | HOSE, VENTILATION |
| 12262-47020 | HOSE, VENTILATION, NO.2 |
| 90467-16035 | CLIP OR CLAMP(FOR VENTILATION HOSE) |
| 90467-18003 | CLIP(FOR VENTILATION HOSE NO.2) |
| 90467-21004 | CLIP(FOR VENTILATION HOSE NO.2) |
Toyota part number 90467-22010 corresponds to CLIP OR CLAMP(FOR VENTILATION HOSE). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
