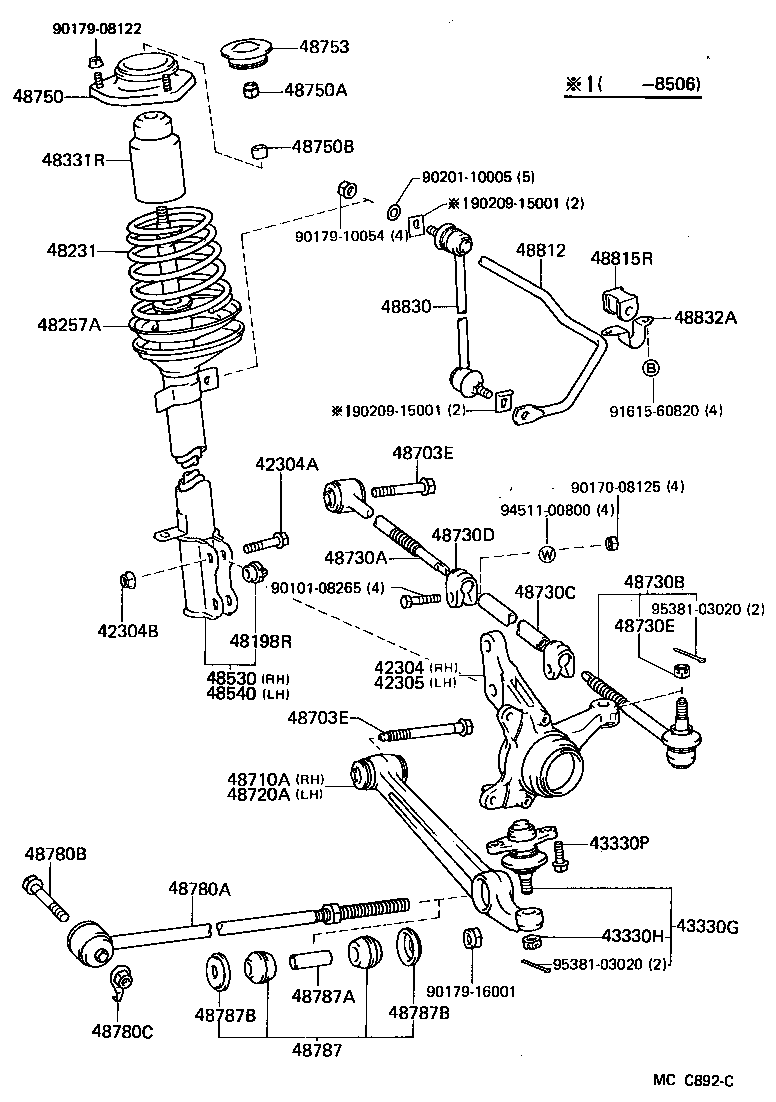

Toyota 90119-12130 BOLT(FOR REAR SUSPENSION ARM)
90119-12130
Part overview:
OEM reference 90119-12130 for BOLT(FOR REAR SUSPENSION ARM).
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 48703E |
| Manufacturer Part Number | 90119-12130 |
| Part Description | BOLT(FOR REAR SUSPENSION ARM) |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 90119-12130 |
| Catalog | 211410 |
| PNC | 48703E |
| PNC Group | BOLT(FOR REAR SUSPENSION ARM) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| MR2 | 1988.04 - 1989.12 |
AW11..TBR;AW11..CP..USA
*12-1.25PX70-30
|
211410 |
| MR2 | 1988.03 - 1988.04 |
AW11
*12-1.25PX70-30
|
211410 |
| MR2 | 1986.12 - 1988.03 |
AW11
*12-1.25PX70-30,NO.2 ARM
|
211410 |
Related Parts
| Part Number | Reference |
|---|---|
| 42313-17010 | CARRIER SUB-ASSY, REAR AXLE, RH |
| 42313-17020 | CARRIER SUB-ASSY, REAR AXLE, RH |
| 42314-17010 | CARRIER SUB-ASSY, REAR AXLE, LH |
| 42314-17020 | CARRIER SUB-ASSY, REAR AXLE, LH |
| 43330-19036 | JOINT ASSY, LOWER BALL, REAR |
| 43330-19037 | JOINT ASSY, LOWER BALL, REAR |
| 43330-39135 | JOINT ASSY, LOWER BALL, REAR |
| 45046-19155 | END SUB-ASSY, TIE ROD(FOR REAR SUSPENSION ARM) |
| 45046-19185 | END SUB-ASSY, TIE ROD(FOR REAR SUSPENSION ARM) |
| 45465-12020 | TUBE, TIE ROD ADJUSTING(FOR REAR SUSPENSION ARM) |
| 45466-22010 | CLAMP, TIE ROD END(FOR REAR SUSPENSION ARM) |
| 48194-16010 | CAM, REAR SUSPENSION CAMBER ADJUST, NO.2 |
Toyota part number 90119-12130 corresponds to BOLT(FOR REAR SUSPENSION ARM). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
