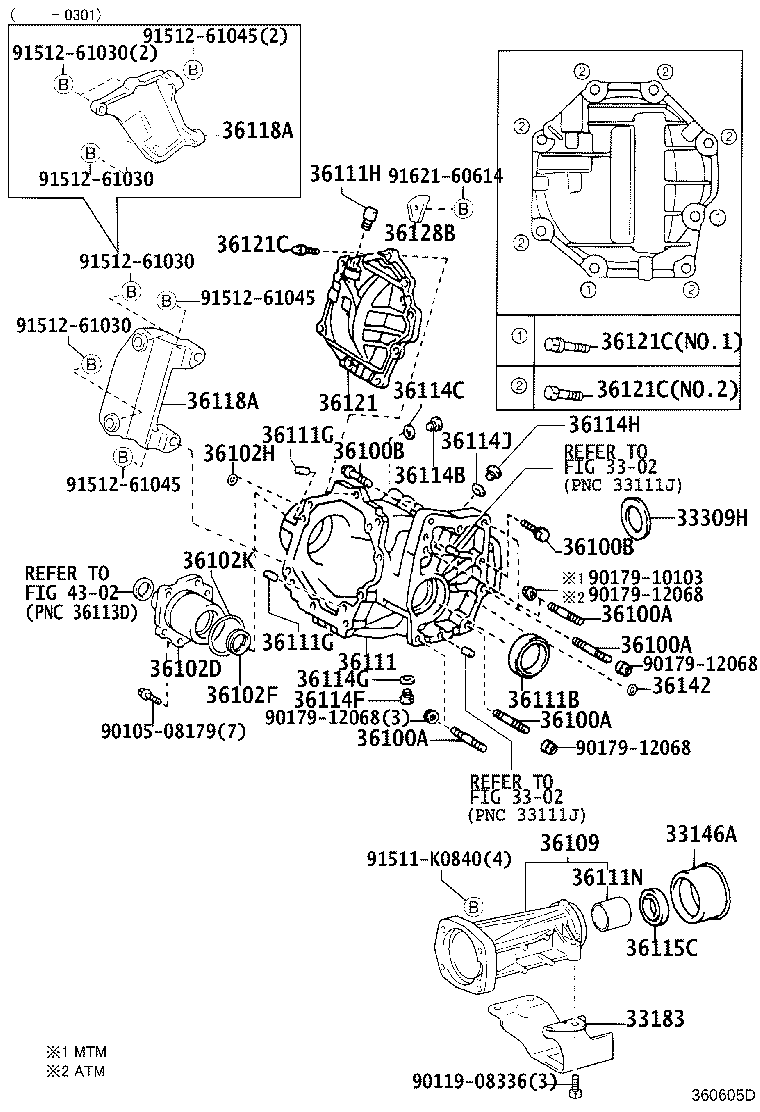

Toyota 90109-10176 BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90109-10176
Part overview:
OEM reference 90109-10176 for BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING).
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 36100A |
| Manufacturer Part Number | 90109-10176 |
| Part Description | BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 90109-10176 |
| Catalog | 662420 |
| PNC | 36100A |
| PNC Group | BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| RAV4 | 2003.07 - 2005.11 |
ACA23..MTM
S=19 & 21,L=48
|
662420 |
| RAV4 | 2000.08 - 2003.07 |
ACA21..MTM
S=19 & 21,L=48
|
662420 |
Related Parts
| Part Number | Reference |
|---|---|
| 12157-10010 | GASKET, NO.1 (FOR TRANSFER CASE) |
| 12157-10010 | GASKET (FOR TRANSFER DRAIN PLUG) |
| 12157-10010 | GASKET, NO.2 (FOR TRANSFER CASE) |
| 33146-30010 | DEFLECTOR, TRANSFER EXTENSION HOUSING DUST |
| 33146-30020 | DEFLECTOR, TRANSFER EXTENSION HOUSING DUST |
| 33183-21040 | DAMPER, TRANSFER DYNAMIC |
| 36102-21010 | RETAINER SUB-ASSY, TRANSFER RH BEARING |
| 36102-48010 | RETAINER SUB-ASSY, TRANSFER RH BEARING |
| 36109-42010 | HOUSING SUB-ASSY, TRANSFER EXTENSION |
| 36111-21030 | CASE, TRANSFER |
| 36111-21031 | CASE, TRANSFER |
| 36111-42020 | CASE, TRANSFER |
Toyota part number 90109-10176 corresponds to BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
