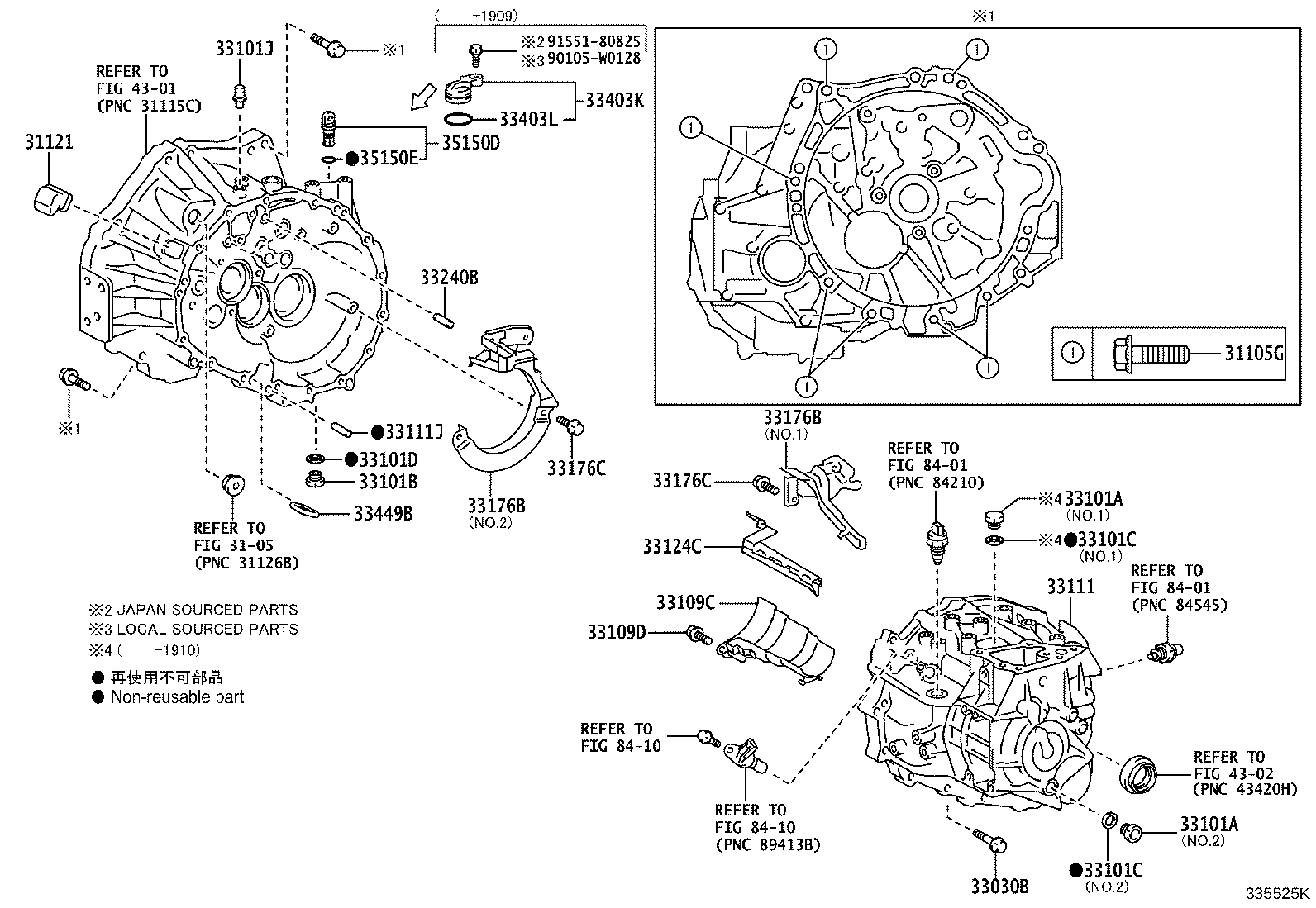

Toyota 90105-W0177 BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-W0177
Part overview:
OEM reference 90105-W0177 for BOLT(FOR TRANSAXLE CASE & ENGINE SETTING).
This page currently lists 1 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 31105G |
| Manufacturer Part Number | 90105-W0177 |
| Part Description | BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) |
| Condition | New |
| Quantity Per Vehicle | 7 |
| SKU | 90105-W0177 |
| Catalog | 528510 |
| PNC | 31105G |
| PNC Group | BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| C-HR | 2016.10 - 2019.09 |
NGX10..6F
*10-1.25PX45-26,(L)
|
528510 |
Related Parts
| Part Number | Reference |
|---|---|
| 12157-10010 | GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) |
| 12157-10010 | GASKET(FOR MANUAL TRANSMISSION DRAIN PLUG) |
| 31121-05010 | COVER, CLUTCH HOUSING, NO.1 |
| 33109-0D011 | SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL |
| 33111-F4010 | CASE, MANUAL TRANSMISSION |
| 33111-F4012 | CASE, MANUAL TRANSMISSION |
| 33111-F4013 | CASE, MANUAL TRANSMISSION |
| 33124-F4010 | PIPE, OIL RECEIVER, NO.1(MTM) |
| 33124-K0010 | PIPE, OIL RECEIVER, NO.1(MTM) |
| 33176-0D020 | SEPARATOR, TRANSMISSION OIL(MTM) |
| 33176-0D030 | SEPARATOR, TRANSMISSION OIL(MTM) |
| 33403-35230 | COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE |
Toyota part number 90105-W0177 corresponds to BOLT(FOR TRANSAXLE CASE & ENGINE SETTING). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
