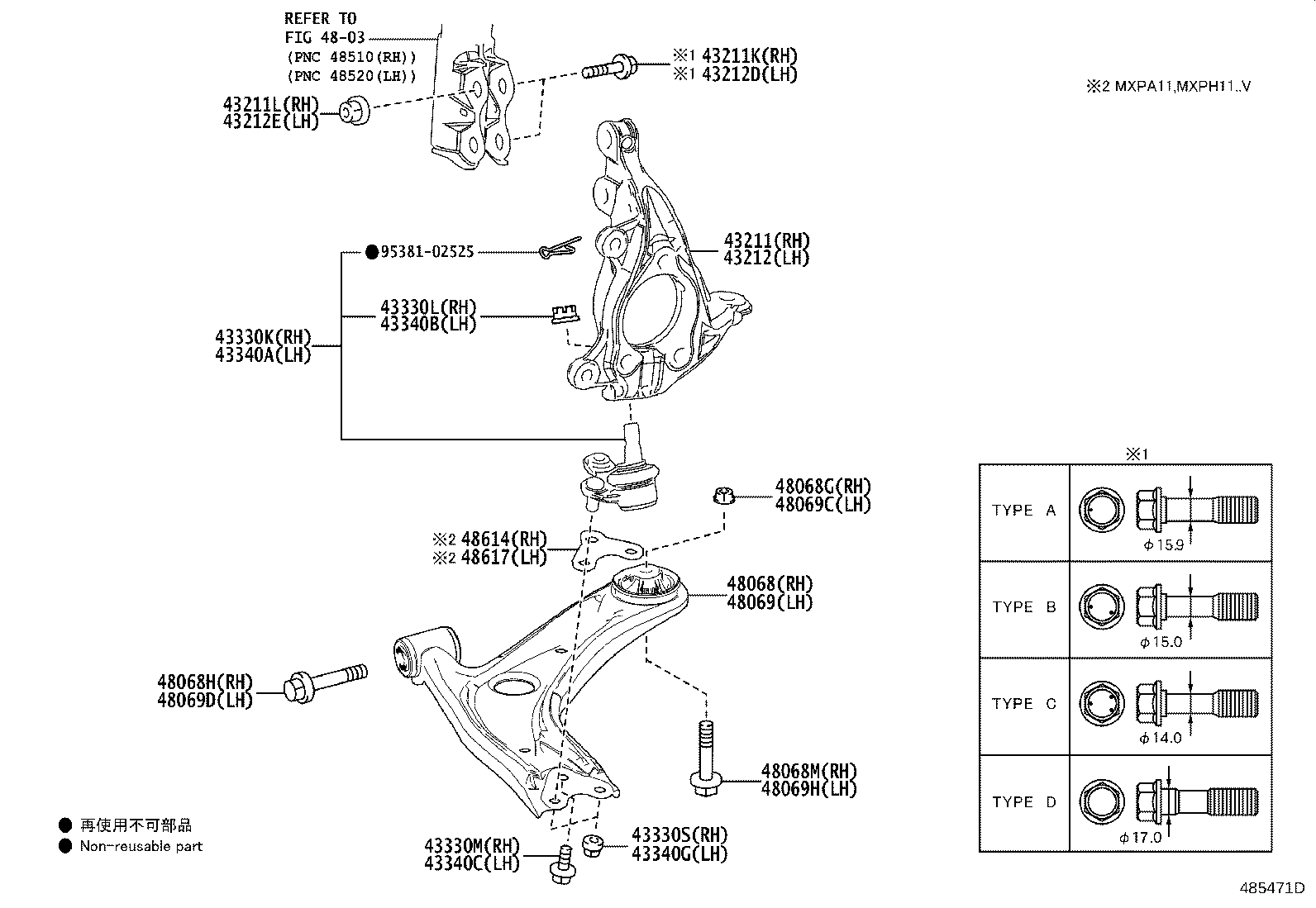

Toyota 90105-17020 BOLT (FOR STEERING KNUCKLE RH)
90105-17020
Part overview:
OEM reference 90105-17020 for BOLT (FOR STEERING KNUCKLE RH).
This page currently lists 33 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 43211K |
| Manufacturer Part Number | 90105-17020 |
| Part Description | BOLT (FOR STEERING KNUCKLE RH) |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 90105-17020 |
| Catalog | 152280 |
| PNC | 43211K |
| PNC Group | BOLT (FOR STEERING KNUCKLE RH) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SIENNA | 2024.10 - |
AXLH4#
AXLH40..07S..X
OD=17,(J),TYPE A:REF ILL.
OD=17,MAAS PACKAGE,(J)
|
622440 |
| COROLLA (MEXICO) | 2024.10 - |
MZEA1#
OD=17,(J),TYPE D:REF ILL.
|
152280 |
| COROLLA SED (NAP) | 2024.10 - |
MZEA1#..L,S,Y;MZEA18..D..CND
OD=17,(J),TYPE D:REF ILL.
|
152480 |
| CAMRY | 2024.04 - |
AXVH85..P,S
AXVH80;AXVH85..G,N
AXVH8#
OD=17,(J)
OD=17,(J),TYPE A:REF ILL.
|
2834B0 |
| HIGHLANDER | 2023.11 - 2024.10 |
TXUA70..S
OD=17,(J),TYPE A:REF ILL.
|
526430 |
| HIGHLANDER | 2023.11 - |
TXUA75;AXUH7#,TXUA70..G,M,N
OD=17,(J),TYPE A:REF ILL.
|
526430 |
| COROLLA (MEXICO) | 2022.11 - 2024.10 |
MZEA1#
OD=17,(J),TYPE D:REF ILL.
|
152280 |
| COROLLA SED (NAP) | 2022.11 - 2024.10 |
MZEA1#..L,S,Y;MZEA18..D..CND
OD=17,(J),TYPE D:REF ILL.
|
152480 |
| COROLLA SED (NAP) | 2022.11 - |
MZEA18..D..USA
OD=17,(J),TYPE D:REF ILL.
|
152480 |
| RAV4 (NAP) | 2022.11 - |
AXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54
OD=17,(J),TYPE A:REF ILL.
|
665430 |
| HIGHLANDER | 2022.10 - 2023.11 |
AXUH7#,TXUA7#
OD=17,(J),TYPE A:REF ILL.
|
526430 |
| LEXUS ES3##/250(NAP) | 2021.09 - |
AXZA15,AXZH1#,GSZ10
OD=17,(J),T/P A:REF.ILLUST
|
28C420 |
| SIENNA | 2020.11 - 2024.10 |
AXLH4#
OD=17,(J),TYPE A:REF ILL.
|
622440 |
| CAMRY/HYBRID (NAP) | 2020.10 - |
AXVA7#,AXVH7#,GSV70
OD=17,(J),TYPE A:REF ILL.
|
2834A0 |
| RAV4 (NAP) | 2020.09 - 2022.11 |
AXAA52..G,X;AXAA52..M..USA;AXAA54,AXAH54,AXAL54
OD=17,(J),TYPE A:REF ILL.
|
665430 |
| RAV4 (NAP) | 2020.09 - |
AXAA52..M..CND
OD=17,(J),TYPE A:REF ILL.
|
665430 |
| AVALON | 2020.08 - 2021.07 |
AXXA55;GSX50..XSE
OD=17,(J),TYPE A:REF ILL.
|
361450 |
| AVALON | 2020.08 - |
AXXH51;GSX50..LIMD,TOU,XLE
OD=17,(J),TYPE A:REF ILL.
|
361450 |
| COROLLA (MEXICO) | 2020.07 - 2022.11 |
ZRE212;MZEA12..CVT
OD=17,(J),TYPE D:REF ILL.
|
152280 |
| COROLLA SED (NAP) | 2020.07 - 2022.11 |
MZEA12,ZRE212
OD=17,(J),TYPE D:REF ILL.
|
152480 |
| COROLLA (MEXICO) | 2020.07 - 2021.06 |
MZEA12..6F
OD=17,(J),TYPE D:REF ILL.
|
152280 |
| CAMRY/HYBRID (NAP) | 2020.03 - 2020.10 |
AXVA75
OD=17,(J),TYPE A:REF ILL.
|
2834A0 |
| HIGHLANDER | 2019.12 - 2022.10 |
AXUH7#,GSU7#
OD=17,(J),TYPE A:REF ILL.
|
526430 |
| C-HR (JPP) | 2019.10 - 2022.12 |
ZGX10
OD=17,TYPE D:REFER ILLUST.
|
529410 |
| COROLLA (MEXICO) | 2019.03 - 2020.07 |
MZEA12,ZRE212
OD=17,(J),TYPE D:REF ILL.
|
152280 |
| COROLLA SED (NAP) | 2019.03 - 2020.07 |
MZEA12,ZRE212
OD=17,(J),TYPE D:REF ILL.
|
152480 |
| RAV4 (NAP) | 2018.12 - 2020.09 |
AXAA5#,AXAH54,AXAL54
OD=17,(J),TYPE A:REF ILL.
|
665430 |
| LEXUS ES3##/250(NAP) | 2018.08 - 2021.09 |
AXZA15,AXZH1#,GSZ10
OD=17,(J),T/P A:REF.ILLUST
|
28C420 |
| LEXUS ES350/300H(JPP | 2018.06 - 2018.08 |
AXZH10,GSZ10
OD=17,TYPE A:REFER ILLUST.
|
2824A0 |
| COROLLA HATCHBACK | 2018.06 - 2018.08 |
MZEA12
OD=17,TYPE D:REFER ILLUST.
|
165430 |
| AVALON | 2018.04 - 2020.08 |
AXXH50,GSX50
OD=17,(J),TYPE A:REF ILL.
|
361450 |
| C-HR (JPP) | 2018.01 - 2019.10 |
ZGX10
OD=17,TYPE D:REFER ILLUST.
|
529410 |
| CAMRY/HYBRID (NAP) | 2017.06 - 2020.10 |
AXVA70,AXVH7#,GSV70
AXVA70..N
AXVA70,AXVH7#,GSV70..LE,SE,XLE,XSE
OD=17,(J),TYPE A:REF ILL.
OD=17,(J)
OD=17,MEXICO SPEC,(J),TYPE A:REF ILL.
|
2834A0 |
Related Parts
| Part Number | Reference |
|---|---|
| 43211-02390 | KNUCKLE, STEERING, RH |
| 43212-02390 | KNUCKLE, STEERING, LH |
| 43330-09B00 | JOINT ASSY, LOWER BALL, FRONT RH |
| 43330-09B00 | JOINT ASSY, LOWER BALL, FRONT LH |
| 48068-02310 | ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH |
| 48069-02310 | ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH |
| 90080-17214 | NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) |
| 90080-17214 | NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) |
| 90080-17223 | NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) |
| 90080-17223 | NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) |
| 90105-12407 | BOLT (FOR FRONT LOWER BALL JOINT RH) |
| 90105-12407 | BOLT (FOR FRONT LOWER BALL JOINT LH) |
Toyota part number 90105-17020 corresponds to BOLT (FOR STEERING KNUCKLE RH). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
