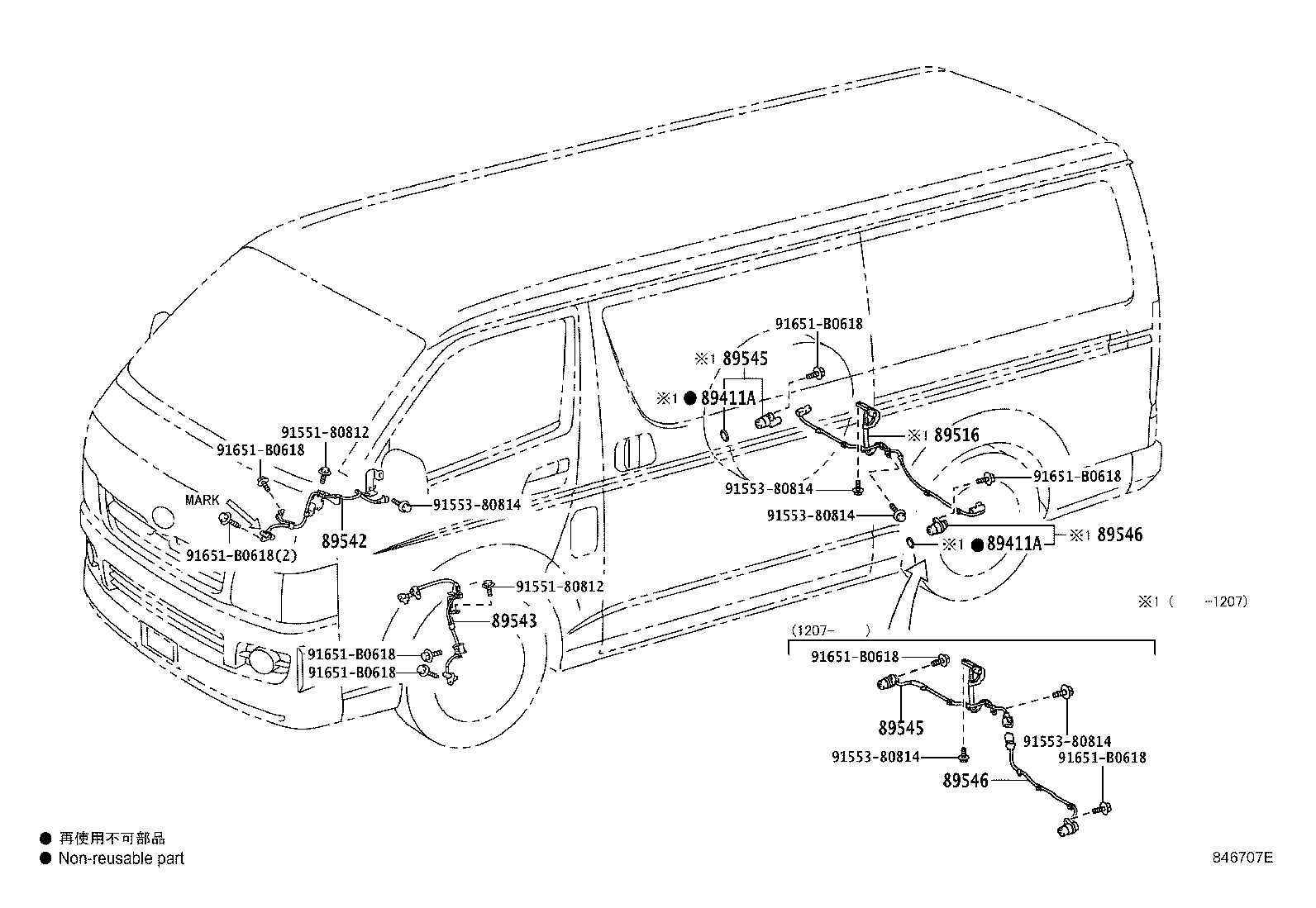

Toyota 89543-26150 SENSOR, SPEED, FRONT LH
89543-26150
Part overview:
OEM reference 89543-26150 for SENSOR, SPEED, FRONT LH.
This page currently lists 9 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 89543 |
| Manufacturer Part Number | 89543-26150 |
| Part Description | SENSOR, SPEED, FRONT LH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 89543-26150 |
| Catalog | 711350 |
| PNC | 89543 |
| PNC Group | SENSOR, SPEED, FRONT LH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HIACE | 2012.12 - 2014.01 |
KDH201,203..LHD
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH
|
711350 |
| HIACE | 2012.05 - 2014.02 |
KDH201..SP..06S;KDH221..5F..GEN;KDH201,221,223,TRH22#..ARL;TRH201..RHD..SP..(ARL,G
EN)
|
711350 |
| HIACE | 2010.08 - 2014.02 |
KDH222,TRH213..GL..(GEN,SA);TRH223..(13S,14S)..(GEN,SA);KDH200,212,220,TRH201,221.
.SA
|
711350 |
| HIACE | 2010.08 - 2013.12 |
TRH213..GL..GEN
ABS(ANTI-LOCK BRAKE SYSTEM)-WITHOUT
|
711350 |
| HIACE | 2010.08 - 2012.12 |
KDH222..TH
|
711350 |
| HIACE | 2005.01 - 2014.02 |
KDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)
|
711350 |
| HIACE | 2005.01 - 2014.01 |
TRH201..SG;KDH221..4D..5F;TRH213..GL..VN;KDH202..STD..TH;KDH221..4FC..GEN;LH212,TR
H221..LHD;TRH201..SP..4FC..GEN;KDH201..RHD..03S..GEN;TRH201..SP..03S..(GCC,GEN);KD
H212,TRH223..4D..(11S,15S,16S);KDH200,203,220,222,LH200,222..(03S,06S,14S,16S)..(A
RL,GCC,GEN);KDH201,202,LH202,TRH203,213..(SMRF,SRF)..SG..(06S,09S,12S,15S,16S)..(G
CC,GEN,SA,VN)
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH
|
711350 |
| HIACE | 2005.01 - 2012.05 |
KDH200..TH;KDH202..GL..TH;KDH201..SP..06S;KDH201,203..LHD;KDH221..5D..5F..GEN;TRH2
01..SP..06S..5F;KDH201,221,TRH201,223..ARL;KDH223,LH212,TRH221..RHD..(ARL,GEN)
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH
|
711350 |
| HIACE | 2005.01 - 2010.08 |
KDH222..SA,TH;TRH213,223..(10S,13S,14S)..(GEN,SA);KDH200,212,220,TRH201,221..(03S,
10S)..SA
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH
|
711350 |
Related Parts
| Part Number | Reference |
|---|---|
| 89516-26070 | WIRE, SKID CONTROL SENSOR |
| 89516-26080 | WIRE, SKID CONTROL SENSOR |
| 89516-26090 | WIRE, SKID CONTROL SENSOR |
| 89516-26100 | WIRE, SKID CONTROL SENSOR |
| 89542-26120 | SENSOR, SPEED, FRONT RH |
| 89542-26140 | SENSOR, SPEED, FRONT RH |
| 89545-26080 | SENSOR, SPEED, REAR RH |
| 89545-26110 | SENSOR, SPEED, REAR RH |
| 89545-26120 | SENSOR, SPEED, REAR RH |
| 89546-26090 | SENSOR, SPEED, REAR LH |
| 89546-26120 | SENSOR, SPEED, REAR LH |
| 89546-26130 | SENSOR, SPEED, REAR LH |
Toyota part number 89543-26150 corresponds to SENSOR, SPEED, FRONT LH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
