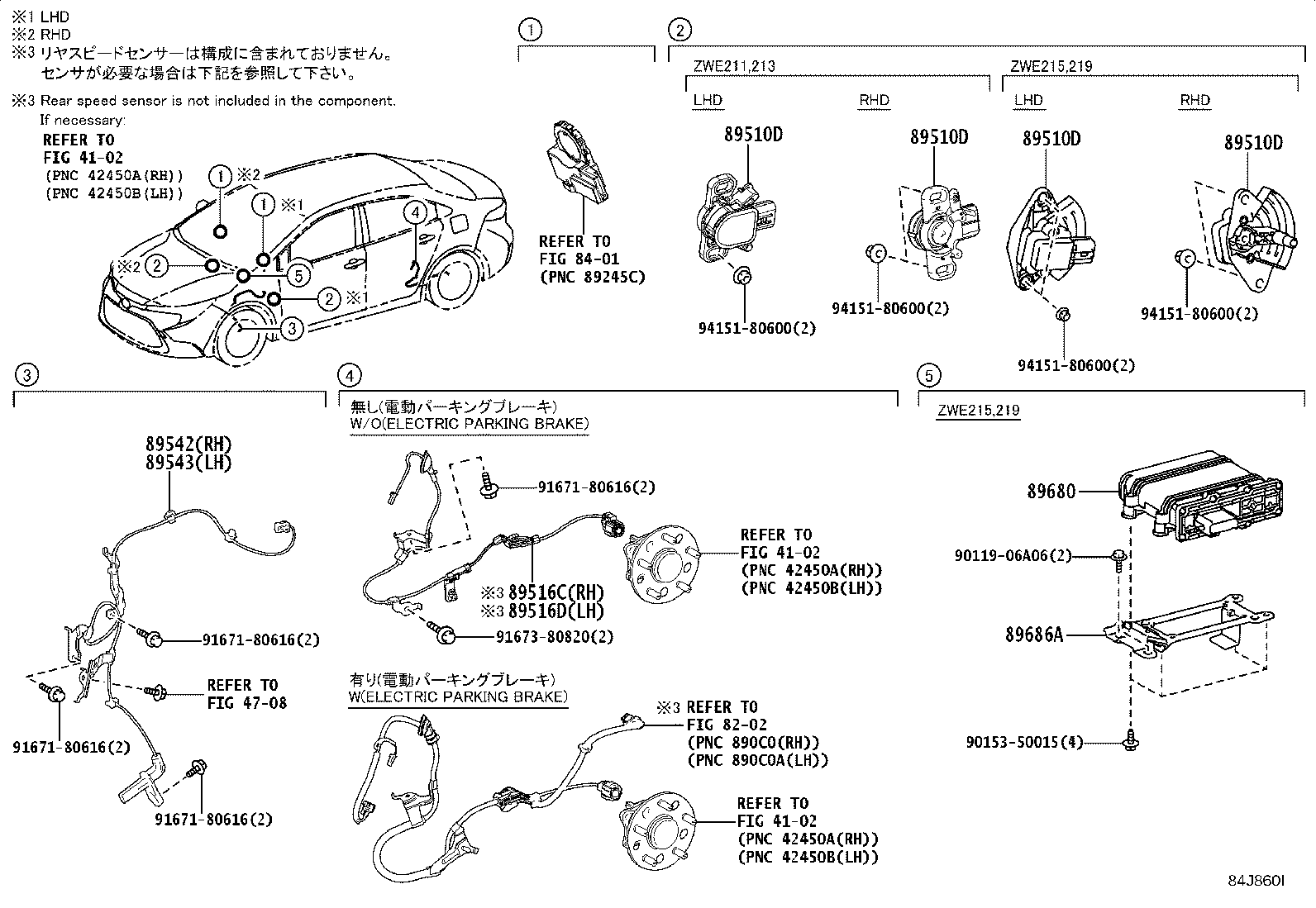

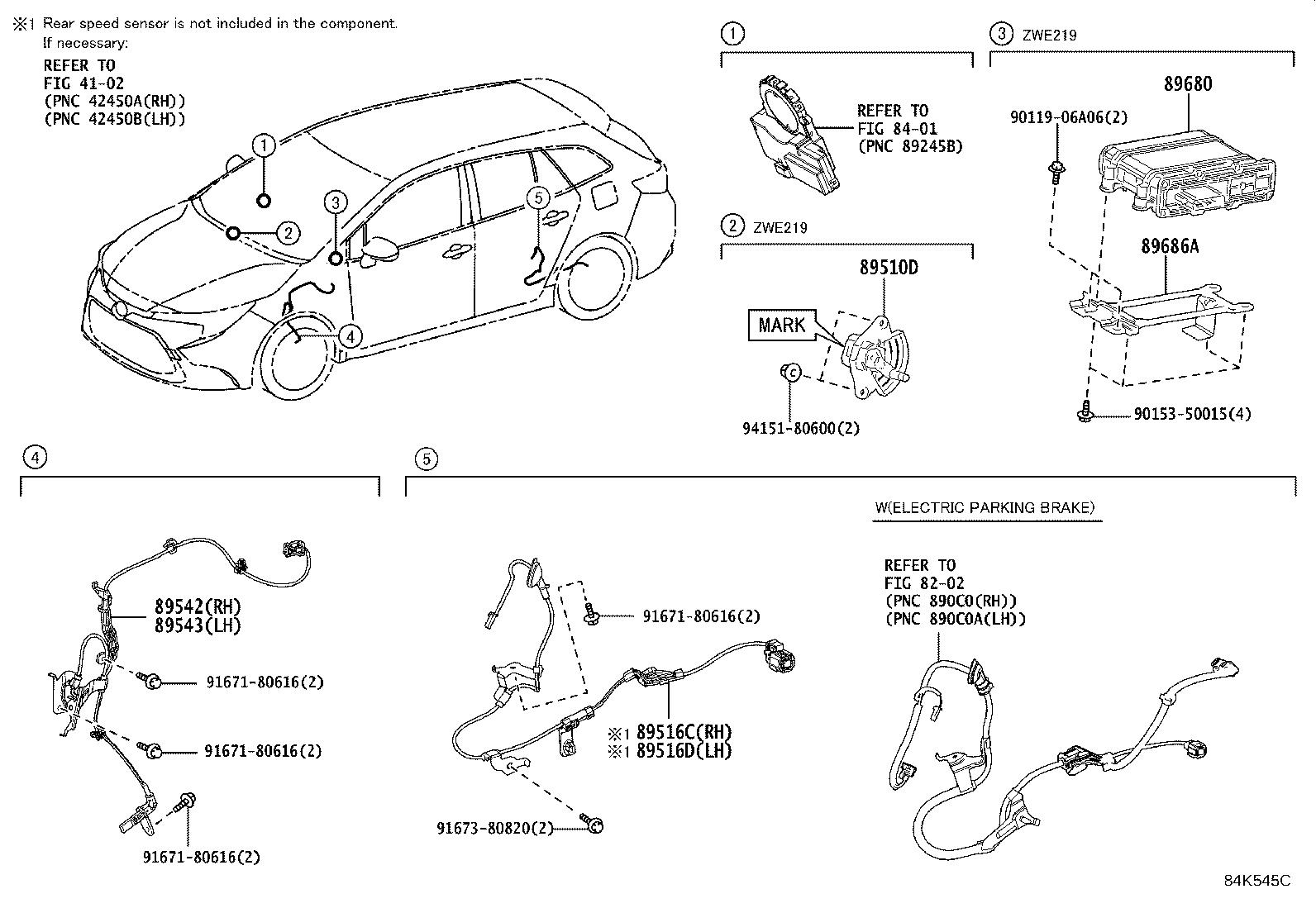

Toyota 89543-12110 SENSOR, SPEED, FRONT LH
89543-12110
Part overview:
OEM reference 89543-12110 for SENSOR, SPEED, FRONT LH.
This page currently lists 14 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 89543 |
| Manufacturer Part Number | 89543-12110 |
| Part Description | SENSOR, SPEED, FRONT LH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 89543-12110 |
| Catalog | 153260 |
| PNC | 89543 |
| PNC Group | SENSOR, SPEED, FRONT LH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA SED (JPP) | 2024.09 - 2025.07 |
MZEA12..D
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
MZEA18;MZEA12,ZWE219..L
|
153260 |
| COROLLA SED (JPP) | 2024.09 - |
MZEA1#,ZWE21#..L,S,X,Y
|
153460 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
MZEA18..LHD;MZEA12,ZWE219
|
153260 |
| COROLLA SED (JPP) | 2022.09 - 2024.09 |
MZEA1#,ZWE21#..L,S,X,Y
|
153460 |
| COROLLA SED (JPP) | 2022.09 - 2023.07 |
MZEA18..RHD
|
153260 |
| COROLLA SED (JPP) | 2022.09 - |
MZEA18..D
|
153460 |
| COROLLA HATCHBACK | 2022.09 - |
MZEA12
|
165430 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
MZEA12,ZRE212,ZWE21#
|
153260 |
| COROLLA SED (JPP) | 2020.04 - 2022.08 |
MZEA12,ZRE212,ZWE21#
|
153460 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
MZEA12,ZRE212,ZWE211
|
153260 |
| COROLLA SED (JPP) | 2019.01 - 2020.04 |
MZEA12,ZRE212,ZWE211
|
153460 |
| COROLLA HATCHBACK | 2018.06 - 2022.09 |
MZEA12..CVT
|
165430 |
| COROLLA HATCHBACK | 2018.06 - |
MZEA12..6F
|
165430 |
Related Parts
| Part Number | Reference |
|---|---|
| 89510-47030 | SENSOR ASSY, BRAKE PEDAL STROKE |
| 89510-47040 | SENSOR ASSY, BRAKE PEDAL STROKE |
| 89510-K0010 | SENSOR ASSY, BRAKE PEDAL STROKE |
| 89510-K0011 | SENSOR ASSY, BRAKE PEDAL STROKE |
| 89510-K0020 | SENSOR ASSY, BRAKE PEDAL STROKE |
| 89510-K0021 | SENSOR ASSY, BRAKE PEDAL STROKE |
| 89516-47110 | WIRE, SKID CONTROL SENSOR, RH |
| 89516-47120 | WIRE, SKID CONTROL SENSOR, LH |
| 89542-12110 | SENSOR, SPEED, FRONT RH |
| 89680-48030 | SUPPLY ASSY, BRAKE CONTROL POWER |
| 89686-12010 | BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1 |
Toyota part number 89543-12110 corresponds to SENSOR, SPEED, FRONT LH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
