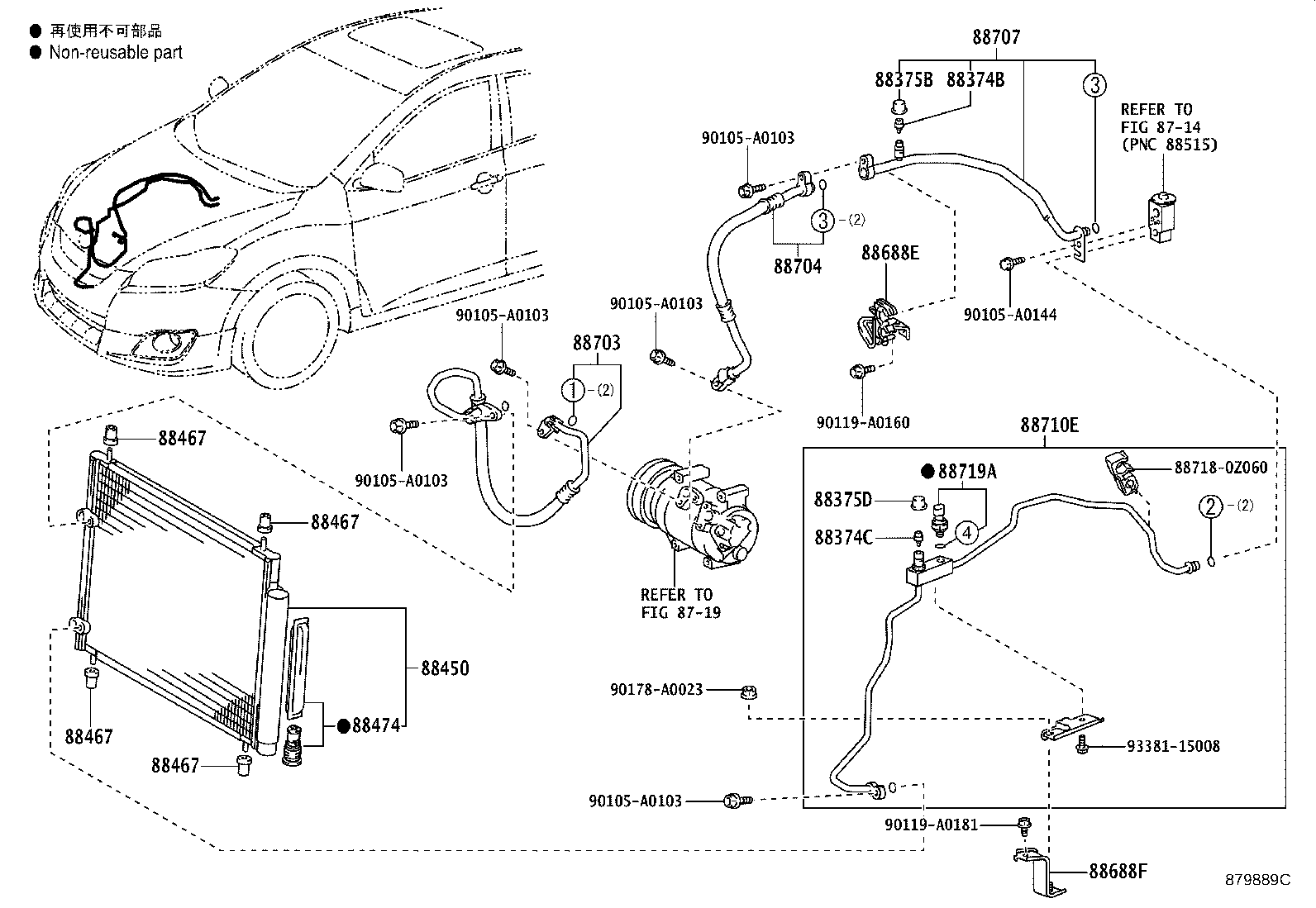

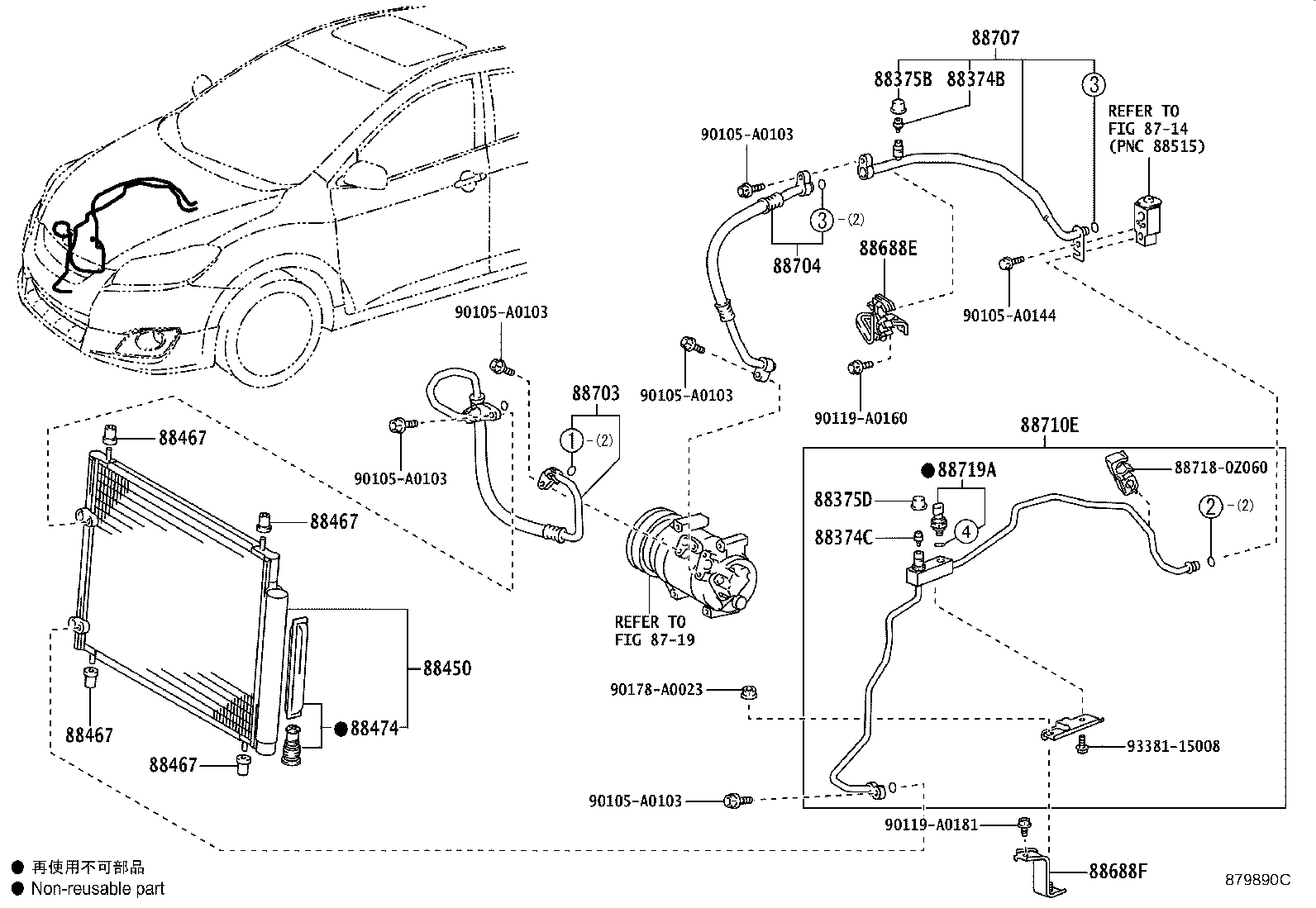

Toyota 88703-02690 HOSE SUB-ASSY, DISCHARGE
88703-02690
Part overview:
OEM reference 88703-02690 for HOSE SUB-ASSY, DISCHARGE.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 88703 |
| Manufacturer Part Number | 88703-02690 |
| Part Description | HOSE SUB-ASSY, DISCHARGE |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 88703-02690 |
| Catalog | 152460 |
| PNC | 88703 |
| PNC Group | HOSE SUB-ASSY, DISCHARGE |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA NAP | 2010.12 - |
ZRE142..NAP..(LE,S,STD)
ZRE142..NAP..CE
AIR CONDITIONER-MANUAL
|
155460 |
| MATRIX | 2010.12 - |
ZRE142
ZRE142..CND
AIR CONDITIONER-WITHOUT
|
152460 |
Related Parts
| Part Number | Reference |
|---|---|
| 16716-28010 | CUSHION, COOLER CONDENSER, NO.1 |
| 88374-30010 | VALVE, SERVICE, NO.1 |
| 88374-30010 | VALVE, SERVICE, NO.2 |
| 88375-02060 | CAP, SERVICE VALVE, NO.2 |
| 88375-30290 | CAP, SERVICE VALVE, NO.1 |
| 88450-02330 | CONDENSER ASSY, W/RECEIVER |
| 88474-17010 | DRYER, COOLER |
| 88688-0Z160 | BRACKET, COOLER REFRIGERANT HOSE, NO.1 |
| 88688-0Z240 | BRACKET, COOLER REFRIGERANT HOSE, NO.2 |
| 88703-02460 | HOSE SUB-ASSY, DISCHARGE |
| 88703-02470 | HOSE SUB-ASSY, DISCHARGE |
| 88704-02690 | HOSE SUB-ASSY, SUCTION |
Toyota part number 88703-02690 corresponds to HOSE SUB-ASSY, DISCHARGE. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
