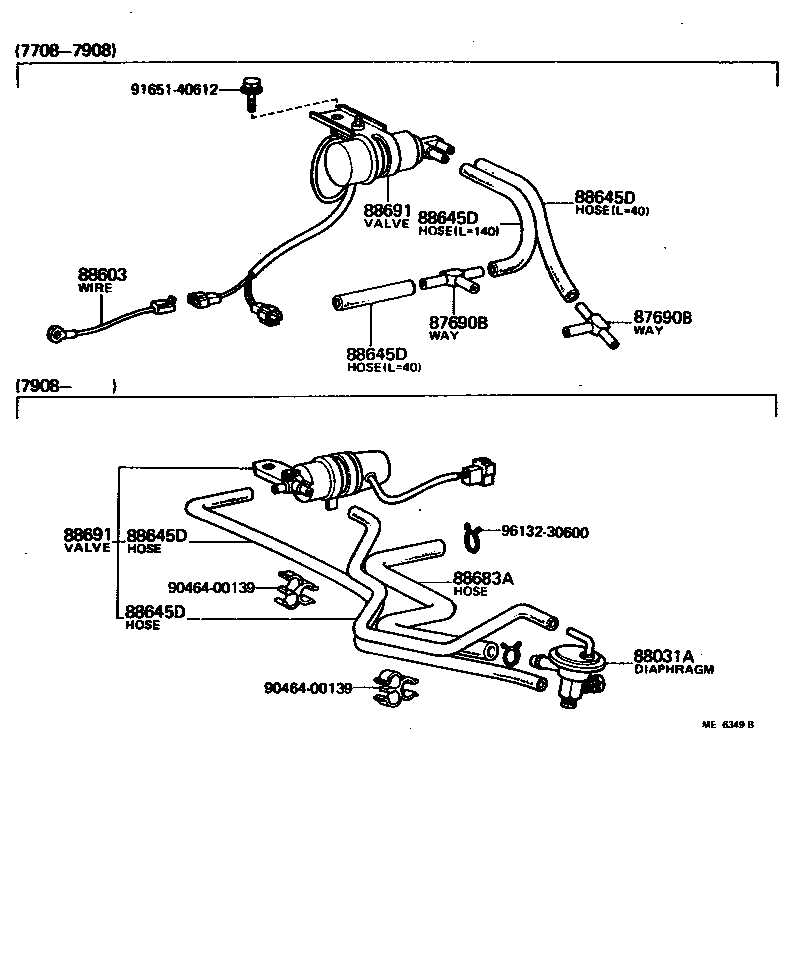

Toyota 88606-22020 DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR
88606-22020
Part overview:
OEM reference 88606-22020 for DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 88031A |
| Manufacturer Part Number | 88606-22020 |
| Part Description | DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 88606-22020 |
| Catalog | 311430 |
| PNC | 88031A |
| PNC Group | DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CRESSIDA | 1980.09 - 1982.08 |
MX62
|
311440 |
| CRESSIDA | 1979.08 - 1980.08 |
MX3#
|
311430 |

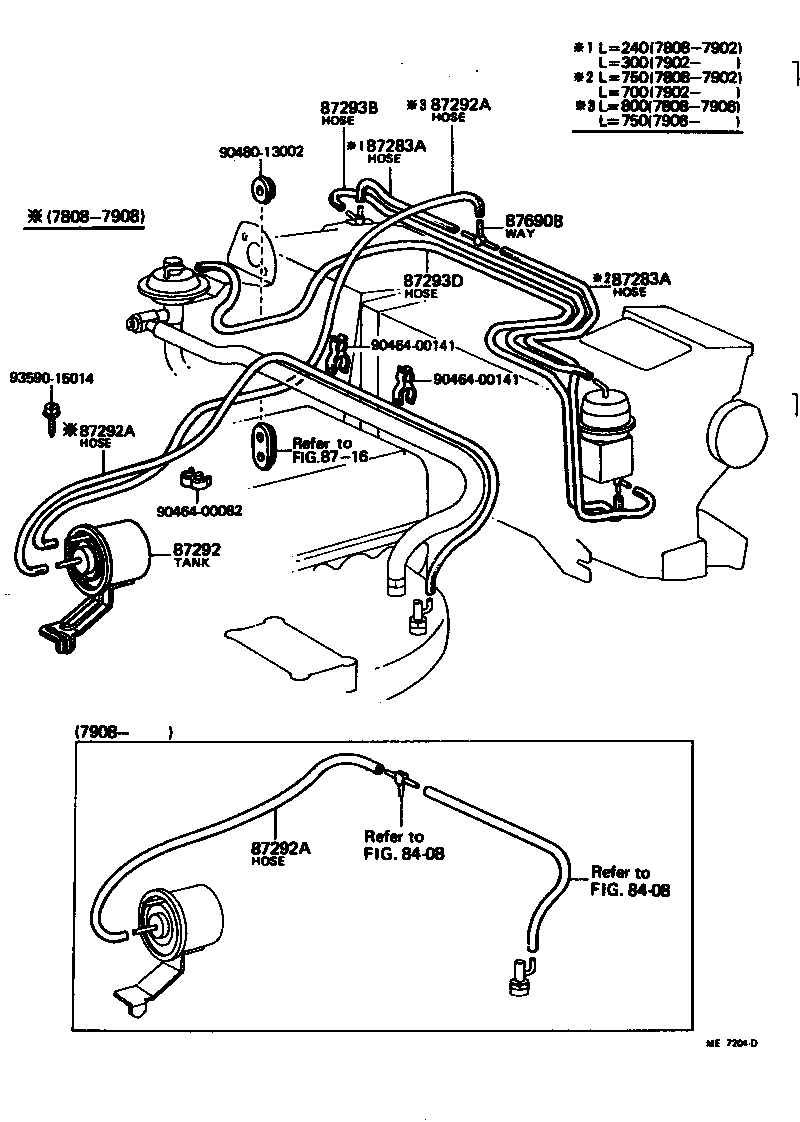

Related Parts
| Part Number | Reference |
|---|---|
| 87292-22020 | TANK, VACUUM |
| 88648-30380 | WIRE, IDLE UP DEVICE |
| 88689-22020 | HOSE (ENGINE TO MAGNET VALVE) |
| 88690-22130 | VALVE, MAGNET (FOR IDLE UP DEVICE) |
| 88691-30320 | VALVE, MAGNET (FOR IDLE UP DEVICE) |
| 90413-04001 | WAY, 3 |
| 90413-04005 | WAY, 3 |
| 90445-08170 | HOSE, HEATER VACUUM SWITCH |
| 90445-08181 | HOSE, VACUUM TANK |
| 95411-10033 | HOSE (FOR IDLE UP DEVICE) |
| 95411-10160 | HOSE, VACUUM TANK |
| 95411-10230 | HOSE, NO.1 |
Toyota part number 88606-22020 corresponds to DIAPHRAGM SUB-ASSY, IDLE-UP ACTUATOR. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
