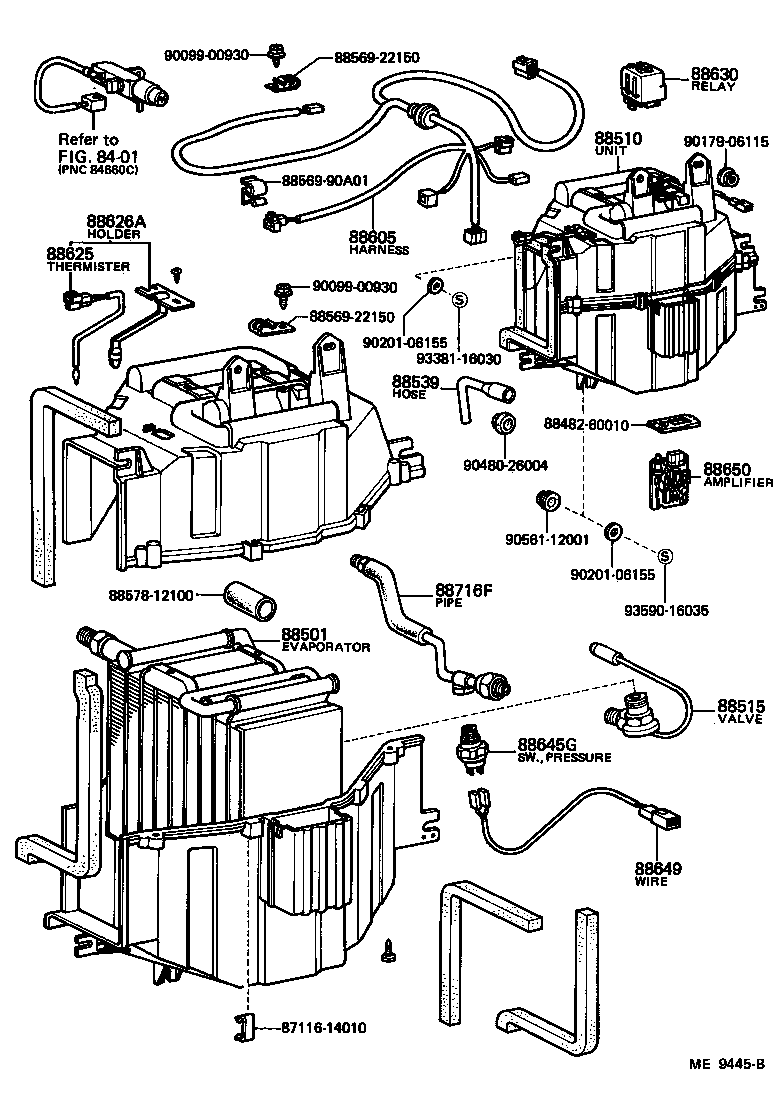

Toyota 88510-90A13 UNIT ASSY, COOLER
88510-90A13
Part overview:
OEM reference 88510-90A13 for UNIT ASSY, COOLER.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 88510 |
| Manufacturer Part Number | 88510-90A13 |
| Part Description | UNIT ASSY, COOLER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 88510-90A13 |
| Catalog | 791420 |
| PNC | 88510 |
| PNC Group | UNIT ASSY, COOLER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LAND CRUISER | 1985.10 - 1987.08 |
HJ60
|
791420 |
| LAND CRUISER | 1984.11 - 1985.10 |
BJ60
|
791420 |
Related Parts
| Part Number | Reference |
|---|---|
| 85913-90A01 | RELAY ASSY, COOLER |
| 88501-90A01 | EVAPORATOR SUB-ASSY, COOLER, NO.1 |
| 88501-90A03 | EVAPORATOR SUB-ASSY, COOLER, NO.1 |
| 88501-90A07 | EVAPORATOR SUB-ASSY, COOLER, NO.1 |
| 88510-90A01 | UNIT ASSY, COOLER |
| 88510-90A04 | UNIT ASSY, COOLER |
| 88515-20040 | VALVE, COOLER EXPANSION |
| 88515-87004 | VALVE, COOLER EXPANSION |
| 88521-90A02 | CASE, COOLER UNIT |
| 88521-90A03 | CASE, COOLER UNIT |
| 88539-90A00 | HOSE, COOLER UNIT DRAIN, NO.1 |
| 88605-90A01 | HARNESS SUB-ASSY, COOLER WIRING, NO.1 |
Toyota part number 88510-90A13 corresponds to UNIT ASSY, COOLER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
