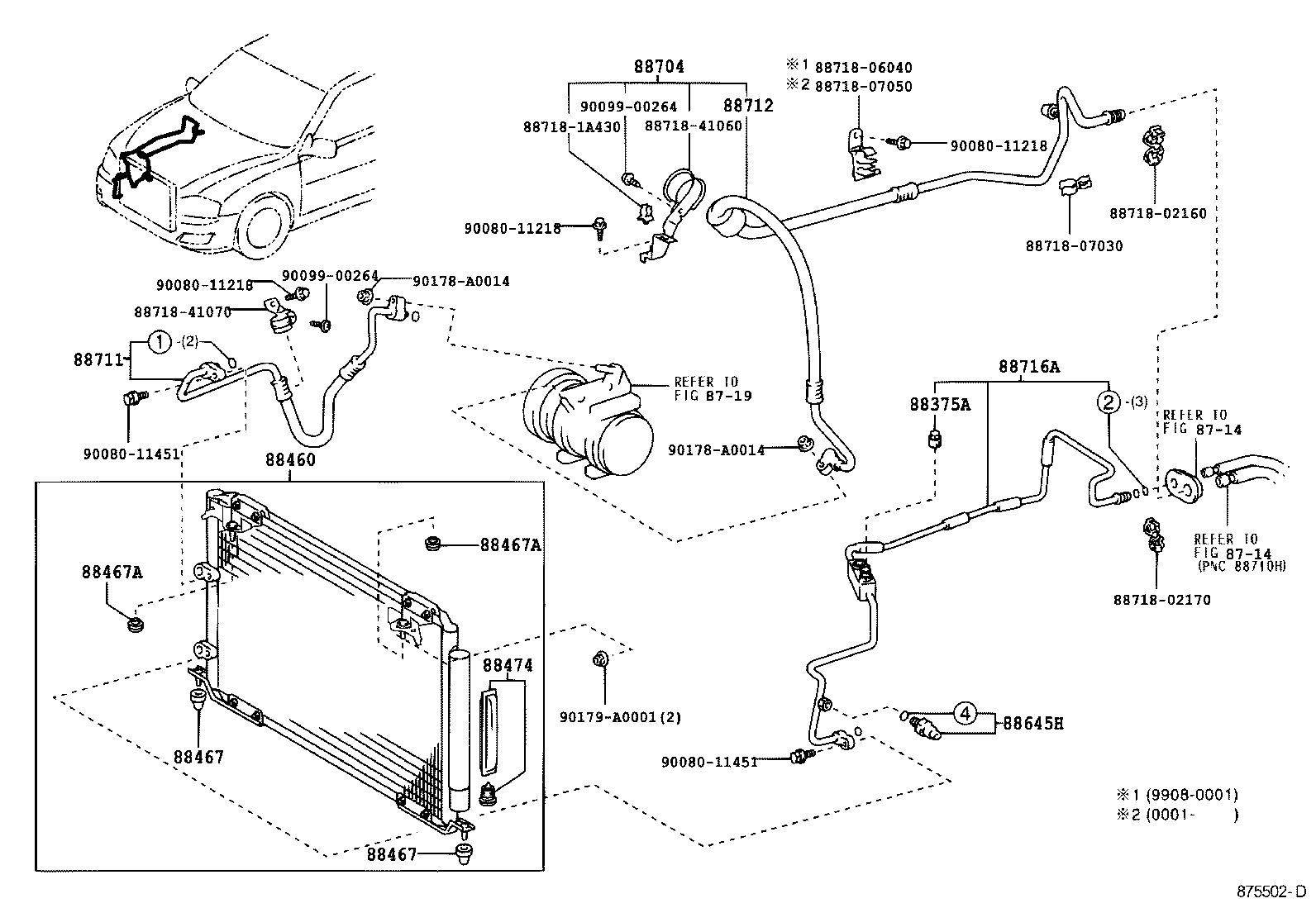

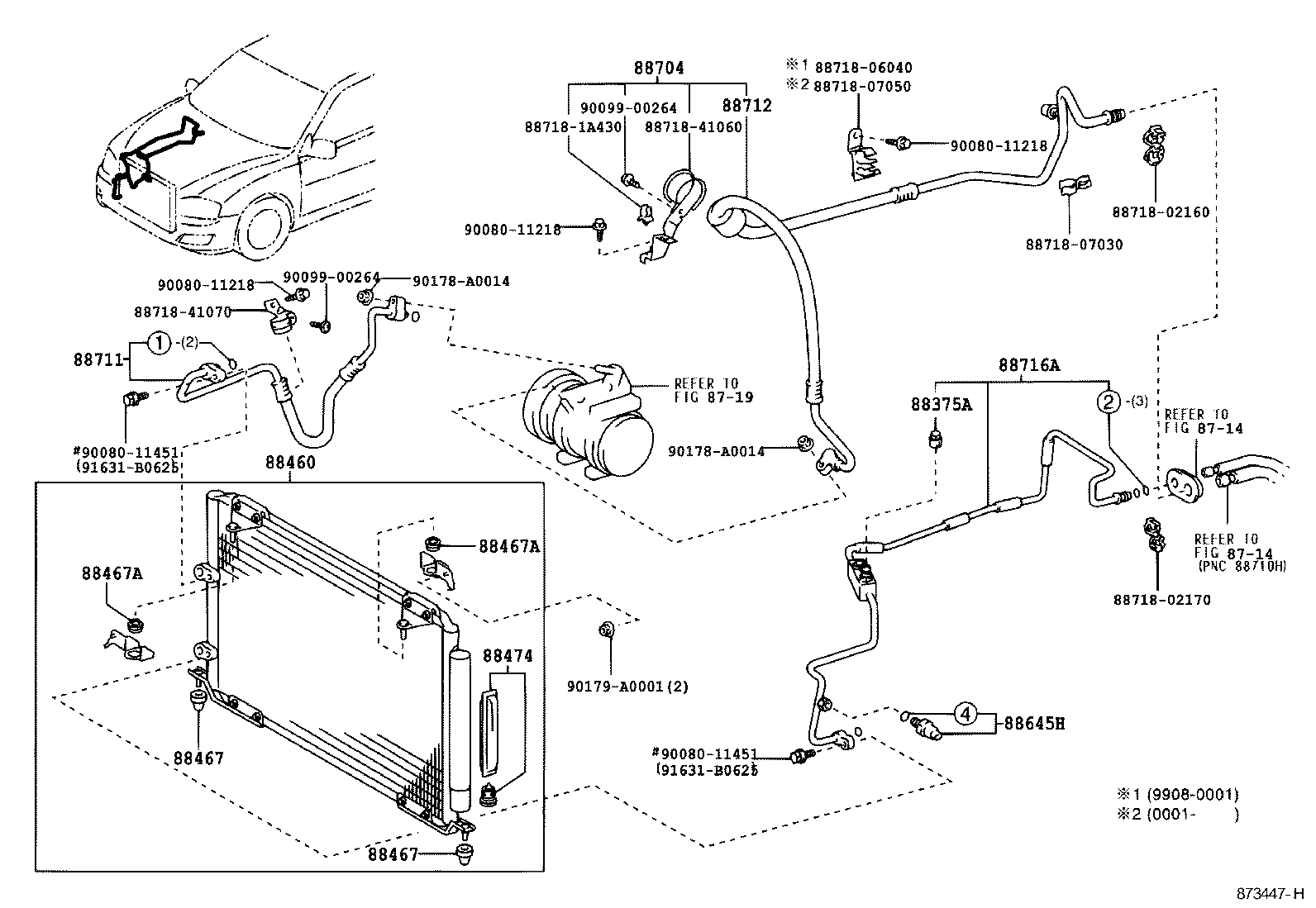

Toyota 88460-07032 CONDENSER ASSY, COOLER
88460-07032
Part overview:
OEM reference 88460-07032 for CONDENSER ASSY, COOLER.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 88460 |
| Manufacturer Part Number | 88460-07032 |
| Part Description | CONDENSER ASSY, COOLER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 88460-07032 |
| Catalog | 361420 |
| PNC | 88460 |
| PNC Group | CONDENSER ASSY, COOLER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| AVALON | 2002.06 - |
MCX20
|
361420 |
| AVALON | 2001.03 - 2002.06 |
MCX20
|
361420 |
Related Parts
| Part Number | Reference |
|---|---|
| 88375-02060 | CAP, SERVICE VALVE (FOR COOLER PIPE) |
| 88460-07031 | CONDENSER ASSY, COOLER |
| 88467-06030 | CUSHION, COOLER CONDENSER, NO.1 |
| 88467-33030 | CUSHION, COOLER CONDENSER, NO.2 |
| 88474-47010 | DRYER, COOLER |
| 88645-60030 | SWITCH, PRESSURE NO.1 |
| 88704-07041 | HOSE SUB-ASSY, SUCTION |
| 88704-07042 | HOSE SUB-ASSY, SUCTION |
| 88711-07010 | HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 |
| 88712-07021 | HOSE, COOLER REFRIGERANT SUCTION, NO.1 |
| 88712-07022 | HOSE, COOLER REFRIGERANT SUCTION, NO.1 |
| 88716-07101 | PIPE, COOLER REFRIGERANT LIQUID, A |
Toyota part number 88460-07032 corresponds to CONDENSER ASSY, COOLER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
