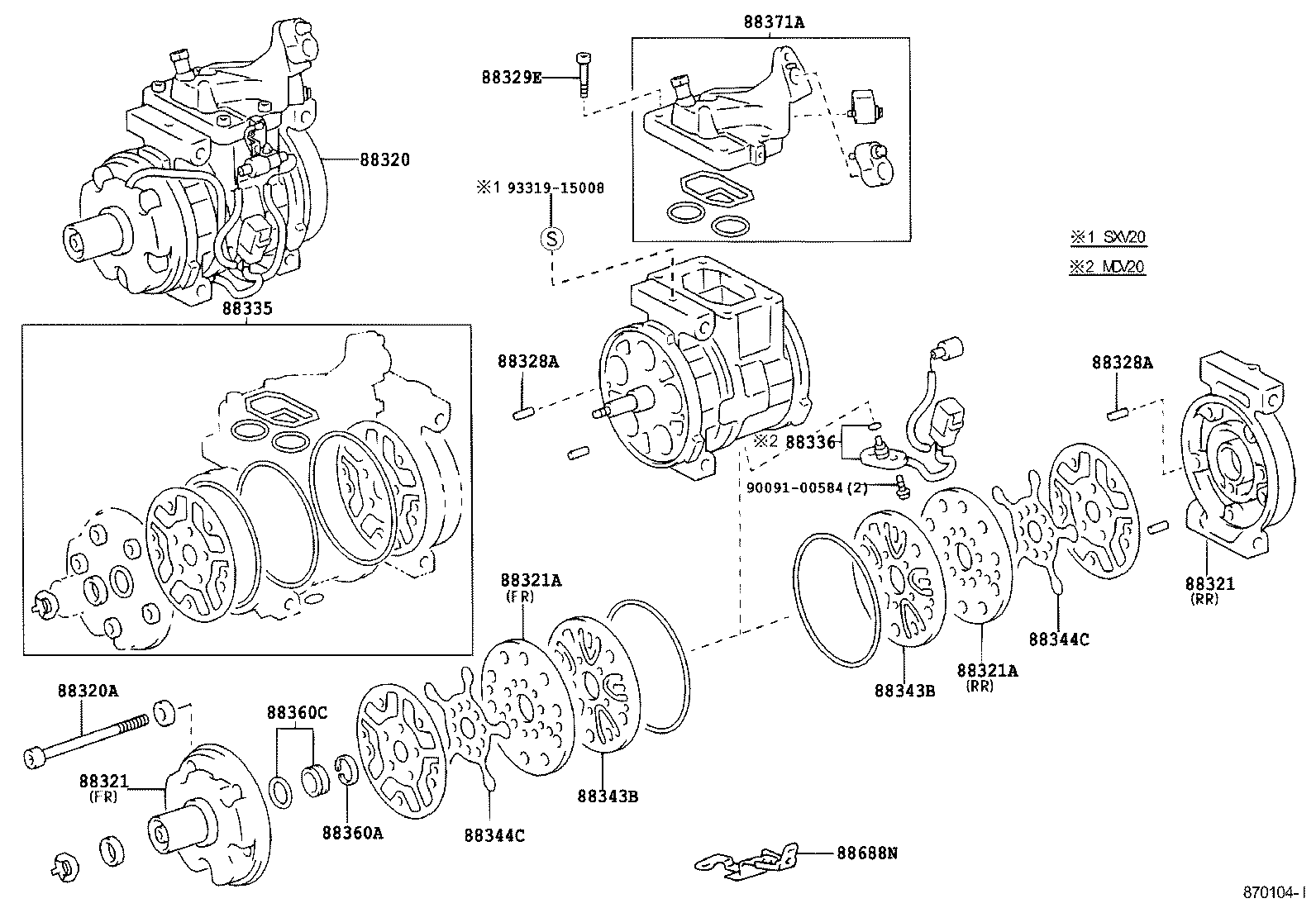

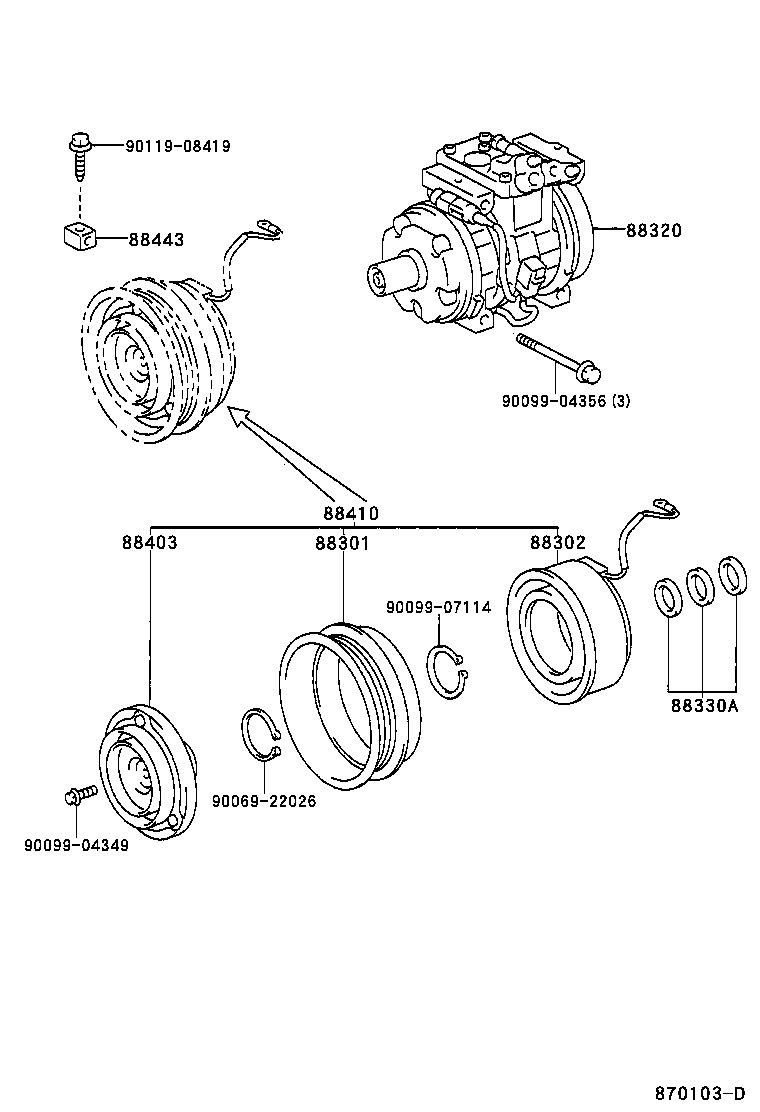

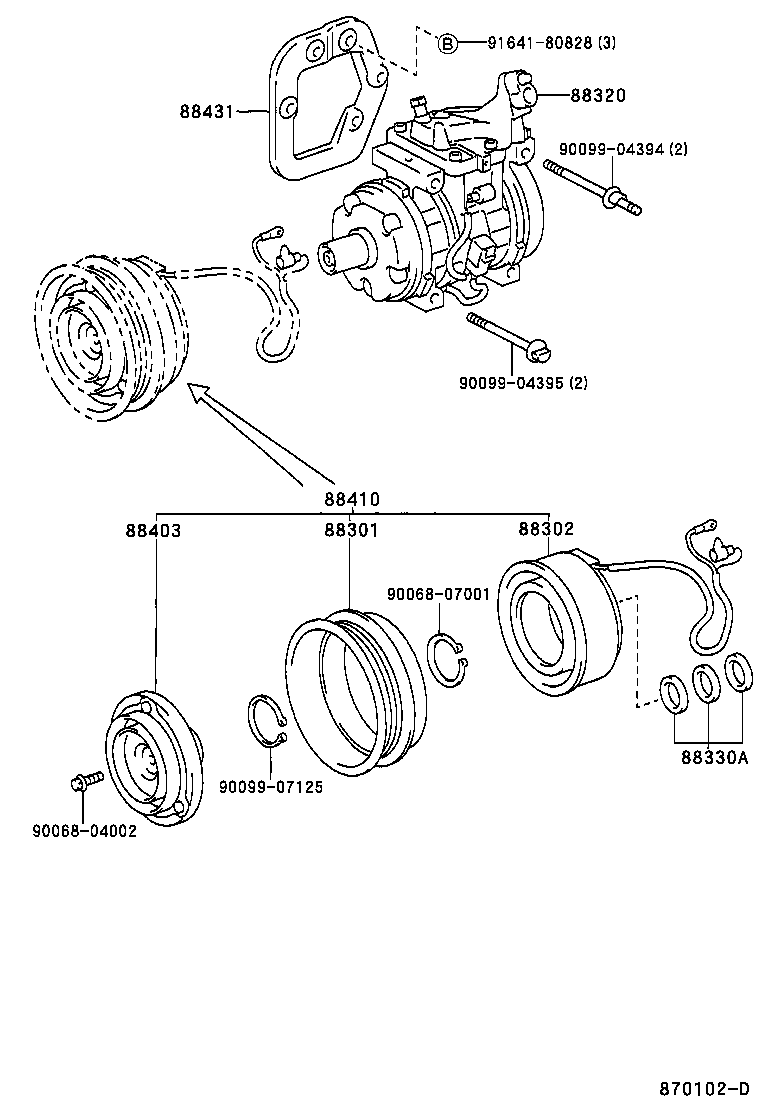

🔍 Click image to enlarge
Toyota 88320-06050 COMPRESSOR ASSY, COOLER
88320-06050
Part overview:
OEM reference 88320-06050 for COMPRESSOR ASSY, COOLER.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 88320 |
| Manufacturer Part Number | 88320-06050 |
| Part Description | COMPRESSOR ASSY, COOLER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 88320-06050 |
| Catalog | 283460 |
| PNC | 88320 |
| PNC Group | COMPRESSOR ASSY, COOLER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SOLARA | 2002.07 - 2002.12 |
MCV20
|
286410 |
| SOLARA | 1998.06 - 2002.07 |
MCV20
|
286410 |
| CAMRY (NAP) | 1996.07 - |
MCV20..NAP
|
283460 |
| AVALON | 1994.09 - |
MCX10
|
361410 |
Related Parts
| Part Number | Reference |
|---|---|
| 88320-06070 | COMPRESSOR ASSY, COOLER |
| 88321-06060 | HEAD, COOLER COMPRESSOR CYLINDER |
| 88322-06060 | HEAD, COOLER COMPRESSOR CYLINDER |
| 88322-06070 | HEAD, COOLER COMPRESSOR CYLINDER |
| 88335-14020 | WASHER (FOR MAGNET CLUTCH) |
| 88335-2B030 | GASKET KIT, OVERHAUL |
| 88336-33040 | SENSOR, COMPRESSOR |
| 88341-06050 | PLATE SUB-ASSY, VALVE |
| 88342-06040 | PLATE SUB-ASSY, VALVE |
| 88343-06030 | REED, SUCTION VALVE |
| 88344-06050 | REED, DISCHARGE VALVE |
| 88360-06030 | SEAL ASSY, SHAFT |
Toyota part number 88320-06050 corresponds to COMPRESSOR ASSY, COOLER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
