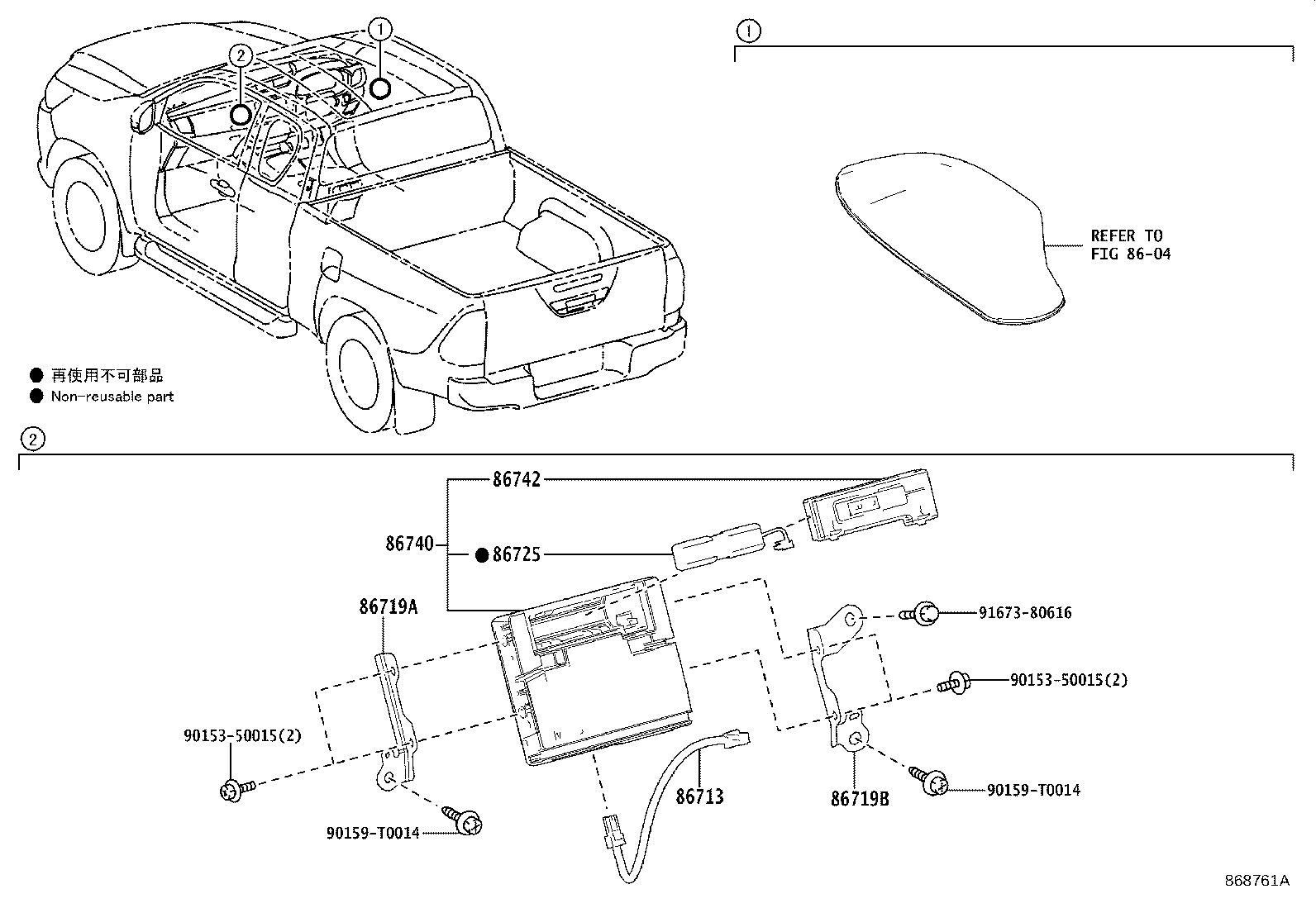

Toyota 86713-71010 WIRE, TELEPHONE COMPUTER
86713-71010
Part overview:
OEM reference 86713-71010 for WIRE, TELEPHONE COMPUTER.
This page currently lists 12 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 86713 |
| Manufacturer Part Number | 86713-71010 |
| Part Description | WIRE, TELEPHONE COMPUTER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 86713-71010 |
| Catalog | 6723B0 |
| PNC | 86713 |
| PNC Group | WIRE, TELEPHONE COMPUTER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (SCB/XTR) | 2024.11 - |
TGN121..6FC
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.11 - |
GUN126..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - 2024.11 |
TGN121..6FC
DATA COMMUNICATION MODULE-WITH(AU-DCM)
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - 2024.11 |
TGN121..5F..ARL;GUN126..H..DCRL..IV3
GUN126,136..6F..S..ARL..CBU;GUN126,TGN121..6FC..(L,S)..(DCRL,HTWC)..ARL
DATA COMMUNICATION MODULE-WITH(AU-DCM)
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - |
GUN125,135..ARL;GUN126,TGN121..MTM..ARL
GUN126..XTR..6F..IV3
GUN126,136..6FC..ARL
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(AU-DCM)
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
GUN125,135..ARL
GUN126..S..MHV;GUN126..6F..IV3;GUN136..6FC..ARL;GUN126..H..ARL..CBU;GUN126..H..MHV
..IV3
DATA COMMUNICATION MODULE-WITH(AU-DCM)
|
6733E0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
GUN125,135..ARL;GUN126,TGN121..MTM..ARL
GUN126..XTR..6F..IV3
GUN126,136,TGN121..6FC..ARL
DATA COMMUNICATION MODULE-WITHOUT
DATA COMMUNICATION MODULE-WITH(AU-DCM)
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GUN125,135..ARL;TGN121..5F..ARL;GUN126..H..DCRL..IV3
GUN126..S..IV3;GUN126..H..MHV..IV3;GUN126,136,TGN121..(6F,6FC)..ARL..CBU
DATA COMMUNICATION MODULE-WITH(AU-DCM)
|
6733D0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN125,135..ARL;GUN126,TGN121..MTM..ARL
GUN126,136,TGN121..6FC..ARL
DATA COMMUNICATION MODULE-WITH(G-DCM)
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GUN126..H..IV3;GUN125,135..ARL;TGN121..5F..ARL
GUN126..S..IV3;GUN126,136,TGN121..(6F,6FC)..ARL..CBU
DATA COMMUNICATION MODULE-WITH(G-DCM)
|
6733C0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN125,126,13#,TGN121..ARL
DATA COMMUNICATION MODULE-WITH(G-DCM)
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GUN125,126,13#,TGN121..ARL
DATA COMMUNICATION MODULE-WITH(G-DCM)
|
6733B0 |
Related Parts
| Part Number | Reference |
|---|---|
| 86719-0K090 | BRACKET, TELEPHONE |
| 86719-0K100 | BRACKET, TELEPHONE NO.1 |
| 86719-0K120 | BRACKET, TELEPHONE NO.2 |
| 86725-78010 | BATTERY, MOBILEPHONE |
| 86741-0K050 | TRANSCEIVER ASSY, TELEPHONE |
| 86741-0K070 | TRANSCEIVER ASSY, TELEPHONE |
| 86741-0K080 | TRANSCEIVER ASSY, TELEPHONE |
| 86742-0D020 | COVER, TRANSCEIVER |
| 86764-0K020 | ANTENNA ASSY, TELEPHONE |
Toyota part number 86713-71010 corresponds to WIRE, TELEPHONE COMPUTER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
