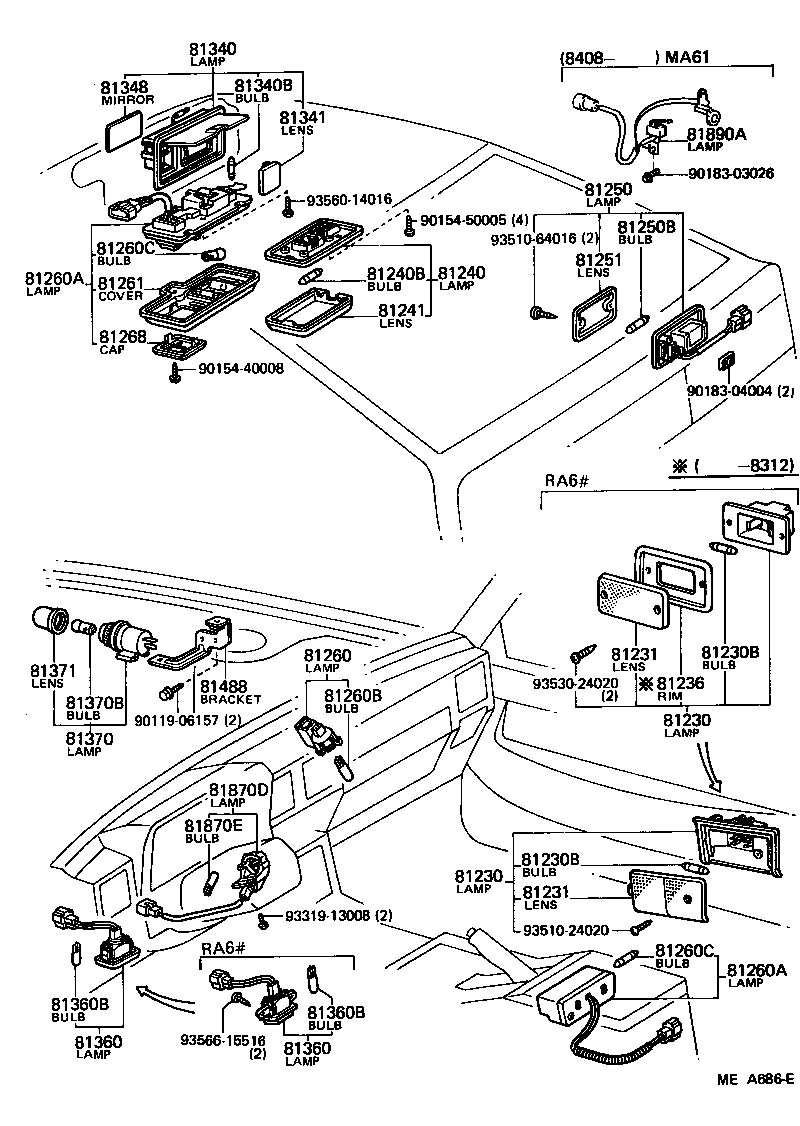

Toyota 81230-14040 LAMP ASSY, COURTESY
81230-14040
Part overview:
OEM reference 81230-14040 for LAMP ASSY, COURTESY.
This page currently lists 10 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 81230 |
| Manufacturer Part Number | 81230-14040 |
| Part Description | LAMP ASSY, COURTESY |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 81230-14040 |
| Catalog | 252430 |
| PNC | 81230 |
| PNC Group | LAMP ASSY, COURTESY |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SUPRA | 1990.08 - 1993.05 |
MA70
|
291420 |
| SUPRA | 1989.08 - 1990.08 |
MA70..TWC;MA70..4FC..TWT;MA70..SPR..5F..TWT;MA70..LB..5F..TWT..USA
|
291420 |
| CAMRY (JPP) | 1988.08 - 1991.06 |
SV2#,VZV21..LE
|
281440 |
| SUPRA | 1988.08 - 1989.08 |
MA70
|
291420 |
| CAMRY | 1987.10 - 1988.08 |
SV2#,VZV21..LE
|
281430 |
| CELICA | 1987.08 - 1989.08 |
ST16#
|
252450 |
| CAMRY | 1986.08 - 1987.10 |
SV21..LE
|
281430 |
| SUPRA | 1986.01 - 1988.08 |
MA70
|
291410 |
| CELICA | 1985.08 - 1987.08 |
ST16#
|
252440 |
| CELICA | 1983.12 - 1985.07 |
RA6#
|
252430 |
Related Parts
| Part Number | Reference |
|---|---|
| 81230-14010-01 | LAMP ASSY, COURTESY |
| 81230-14010-02 | LAMP ASSY, COURTESY |
| 81230-14010-04 | LAMP ASSY, COURTESY |
| 81230-14010-12 | LAMP ASSY, COURTESY |
| 81230-14030 | LAMP ASSY, COURTESY |
| 81231-30020 | LENS, COURTESY LAMP |
| 81231-30100 | LENS, COURTESY LAMP |
| 81236-30010 | RIM, COURTESY LAMP |
| 81237-14010 | LENS, COURTESY LAMP |
| 81240-16010-08 | LAMP ASSY, ROOM, NO.1 |
| 81240-16010-13 | LAMP ASSY, ROOM, NO.1 |
| 81240-16010-14 | LAMP ASSY, ROOM, NO.1 |
Toyota part number 81230-14040 corresponds to LAMP ASSY, COURTESY. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
