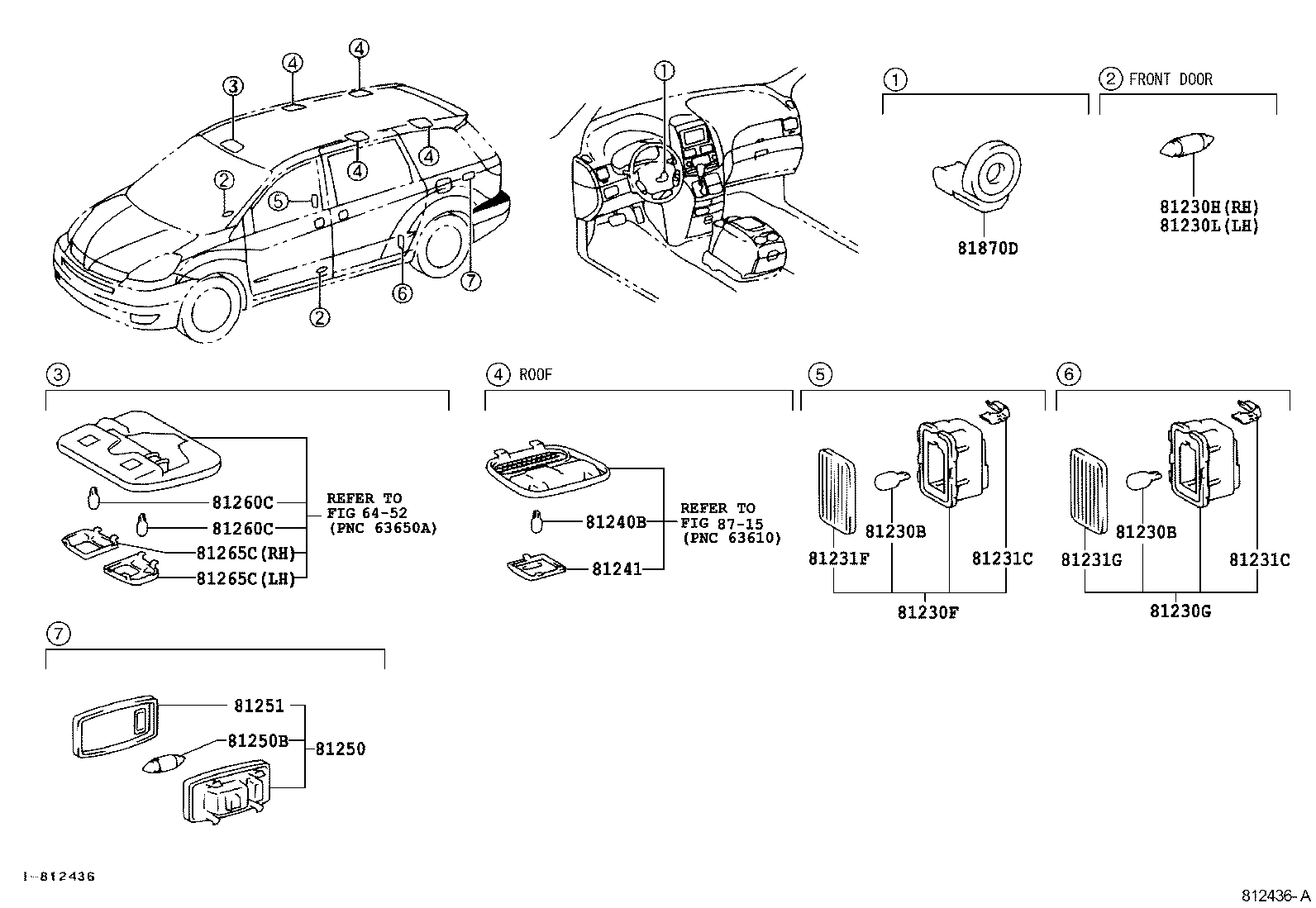

Toyota 81230-0C020 LAMP ASSY, REAR DOOR COURTESY, RH
81230-0C020
Part overview:
OEM reference 81230-0C020 for LAMP ASSY, REAR DOOR COURTESY, RH.
This page currently lists 9 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 81230F |
| Manufacturer Part Number | 81230-0C020 |
| Part Description | LAMP ASSY, REAR DOOR COURTESY, RH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 81230-0C020 |
| Catalog | 622420 |
| PNC | 81230F |
| PNC Group | LAMP ASSY, REAR DOOR COURTESY, RH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| SIENNA | 2006.12 - 2010.01 |
GSL2#
|
622420 |
| SIENNA | 2005.09 - 2006.12 |
MCL2#
|
622420 |
| TUNDRA | 2004.08 - |
UCK30;GSK30..SR5;UCK40..USA;UCK40..ACB..CND
UCK31,41
|
841420 |
| SEQUOIA | 2004.08 - |
UCK35,45
|
842410 |
| TUNDRA | 2003.10 - 2004.08 |
UCK31,41
|
841420 |
| SIENNA | 2003.01 - 2005.09 |
MCL2#
MCL20..LE..USA
MCL25..LE,XLE;MCL20..XLE..USA;MCL20..(LE,XLE)..CND
CE PACKAGE
AUDIO-AM/FM CST CDCHANGER-6 10SP(JBL)
|
622420 |
| TUNDRA | 2002.08 - 2004.08 |
UCK30,40,VCK30,40..LIMD,SR5
|
841420 |
| SEQUOIA | 2000.09 - 2004.08 |
UCK35,45
|
842410 |
| TUNDRA | 2000.08 - 2002.08 |
UCK30,40,VCK30,40..LIMD,SR5
|
841420 |
Related Parts
| Part Number | Reference |
|---|---|
| 48141-AC010 | CLIP, COURTESY LAMP |
| 81231-0C010 | LENS (FOR REAR DOOR COURTESY LAMP, RH) |
| 81231-0C010 | LENS (FOR FRONT DOOR COURTESY LAMP, LH) |
| 81241-08010 | LENS, ROOM LAMP, NO.1 |
| 81250-06010 | LAMP ASSY, ROOM, NO.2 |
| 81251-06010 | LENS, ROOM LAMP, NO.2 |
| 81265-AA010 | LENS, MAP LAMP, NO.1 |
| 81265-AA020 | LENS, MAP LAMP, NO.1 |
| 81870-AE010 | LAMP ASSY, KEY CYLINDER |
| 90084-81002 | BULB, ROOM LAMP, NO.1 |
| 90084-98030 | BULB(FOR FRONT DOOR COURTESY LAMP RH) |
| 90084-98030 | BULB(FOR FRONT DOOR COURTESY LAMP LH) |
Toyota part number 81230-0C020 corresponds to LAMP ASSY, REAR DOOR COURTESY, RH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
