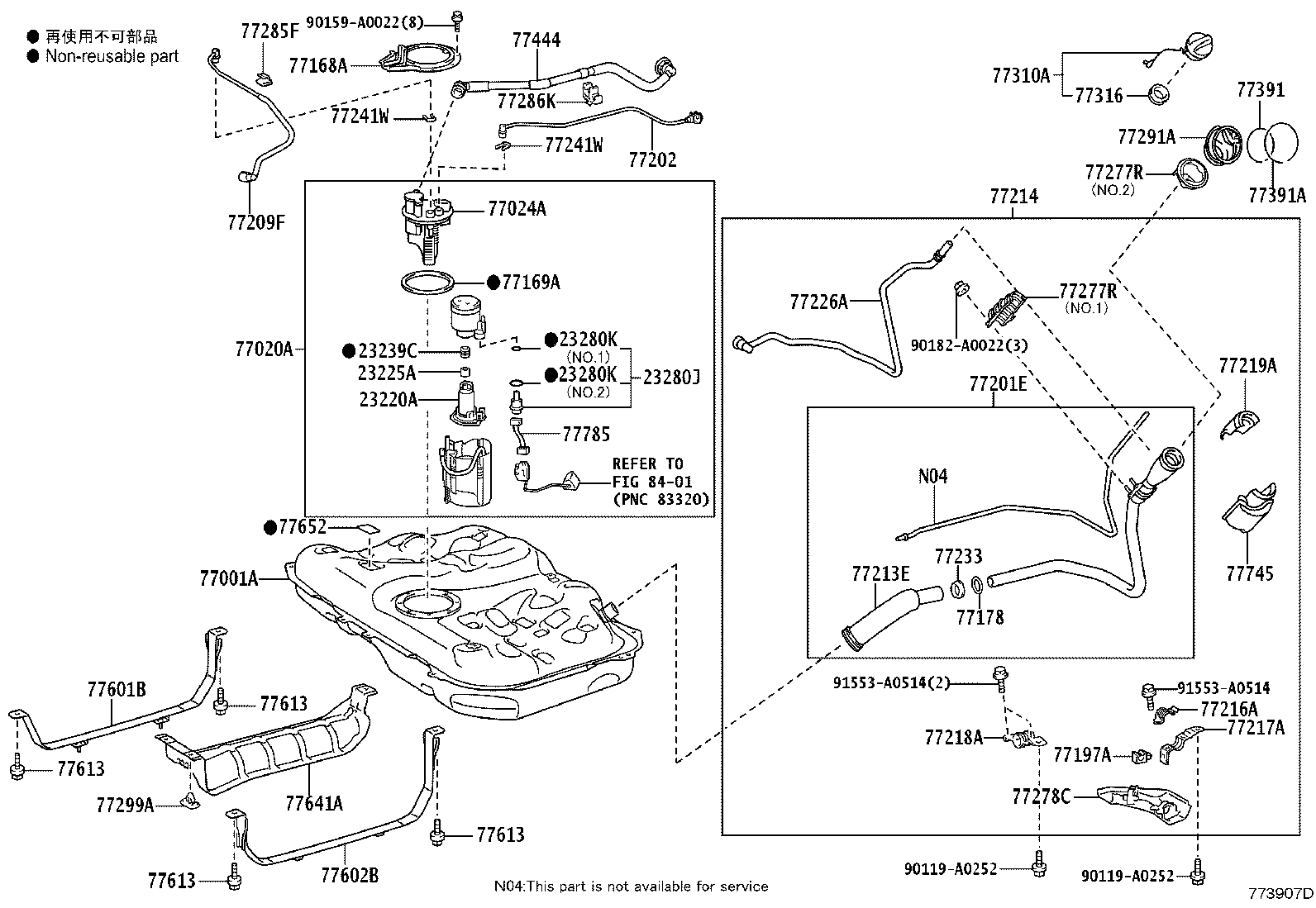

Toyota 77210-07061 PIPE, FUEL TANK FILLER
77210-07061
Part overview:
OEM reference 77210-07061 for PIPE, FUEL TANK FILLER.
This page currently lists 3 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77214 |
| Manufacturer Part Number | 77210-07061 |
| Part Description | PIPE, FUEL TANK FILLER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77210-07061 |
| Catalog | 28C410 |
| PNC | 77214 |
| PNC Group | PIPE, FUEL TANK FILLER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| AVALON | 2015.10 - |
GSX40
|
361440 |
| LEXUS ES350 (NAP) | 2015.10 - |
GSV60
|
28C410 |
| AVALON | 2013.01 - 2015.10 |
GSX40
|
361440 |
Related Parts
| Part Number | Reference |
|---|---|
| 23220-0P180 | PUMP ASSY, FUEL W/FILTER |
| 23225-23010 | SPACER, FUEL PUMP |
| 23280-38020 | REGULATOR ASSY, FUEL PRESSURE |
| 77001-06190 | TANK SUB-ASSY, FUEL |
| 77020-06297 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
| 77024-06221 | PLATE SUB-ASSY, FUEL SUCTION |
| 77030-33090 | LOCK ASSY, FUEL LID W/MOTOR |
| 77168-33070 | PLATE, FUEL TANK VENT TUBE SET |
| 77169-52010 | GASKET, FUEL SUCTION TUBE SET |
| 77178-06010 | GASKET, FUEL TANK FILLER PIPE, LOWER |
| 77197-0R010 | CLAMP, EVAPORATION VENT TUBE, NO.2 |
| 77201-07080 | PIPE SUB-ASSY, FUEL TANK FILLER |
Toyota part number 77210-07061 corresponds to PIPE, FUEL TANK FILLER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
