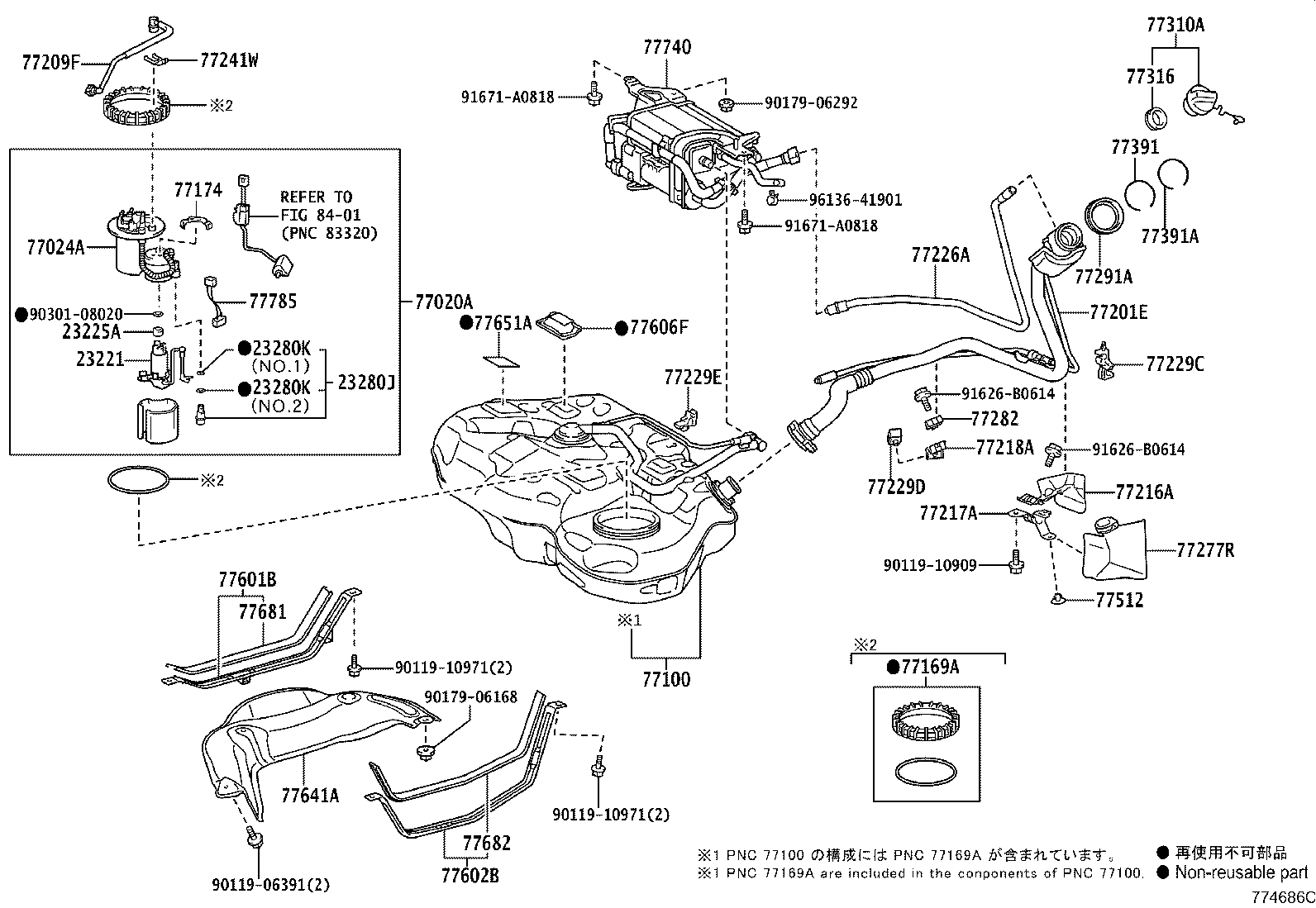

Toyota 77024-76010 PLATE SUB-ASSY, FUEL SUCTION
77024-76010
Part overview:
OEM reference 77024-76010 for PLATE SUB-ASSY, FUEL SUCTION.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77024A |
| Manufacturer Part Number | 77024-76010 |
| Part Description | PLATE SUB-ASSY, FUEL SUCTION |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77024-76010 |
| Catalog | 232410 |
| PNC | 77024A |
| PNC Group | PLATE SUB-ASSY, FUEL SUCTION |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS CT200H | 2013.12 - 2021.08 |
ZWA10
|
232410 |
| LEXUS CT200H | 2010.12 - 2013.12 |
ZWA10
|
232410 |
Related Parts
| Part Number | Reference |
|---|---|
| 23220-47010 | PUMP, FUEL |
| 23220-47011 | PUMP, FUEL |
| 23225-21020 | SPACER, FUEL PUMP |
| 23280-21010 | REGULATOR ASSY, FUEL PRESSURE |
| 77001-76040 | TANK ASSY, FUEL |
| 77020-76010 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
| 77020-76011 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
| 77030-76010 | LOCK ASSY, FUEL LID W/MOTOR |
| 77169-52040 | GASKET, FUEL SUCTION TUBE SET |
| 77174-75010 | SUPPORT, FUEL SUCTION, NO.1 |
| 77201-76020 | PIPE SUB-ASSY, FUEL TANK FILLER |
| 77201-76050 | PIPE SUB-ASSY, FUEL TANK FILLER |
Toyota part number 77024-76010 corresponds to PLATE SUB-ASSY, FUEL SUCTION. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
