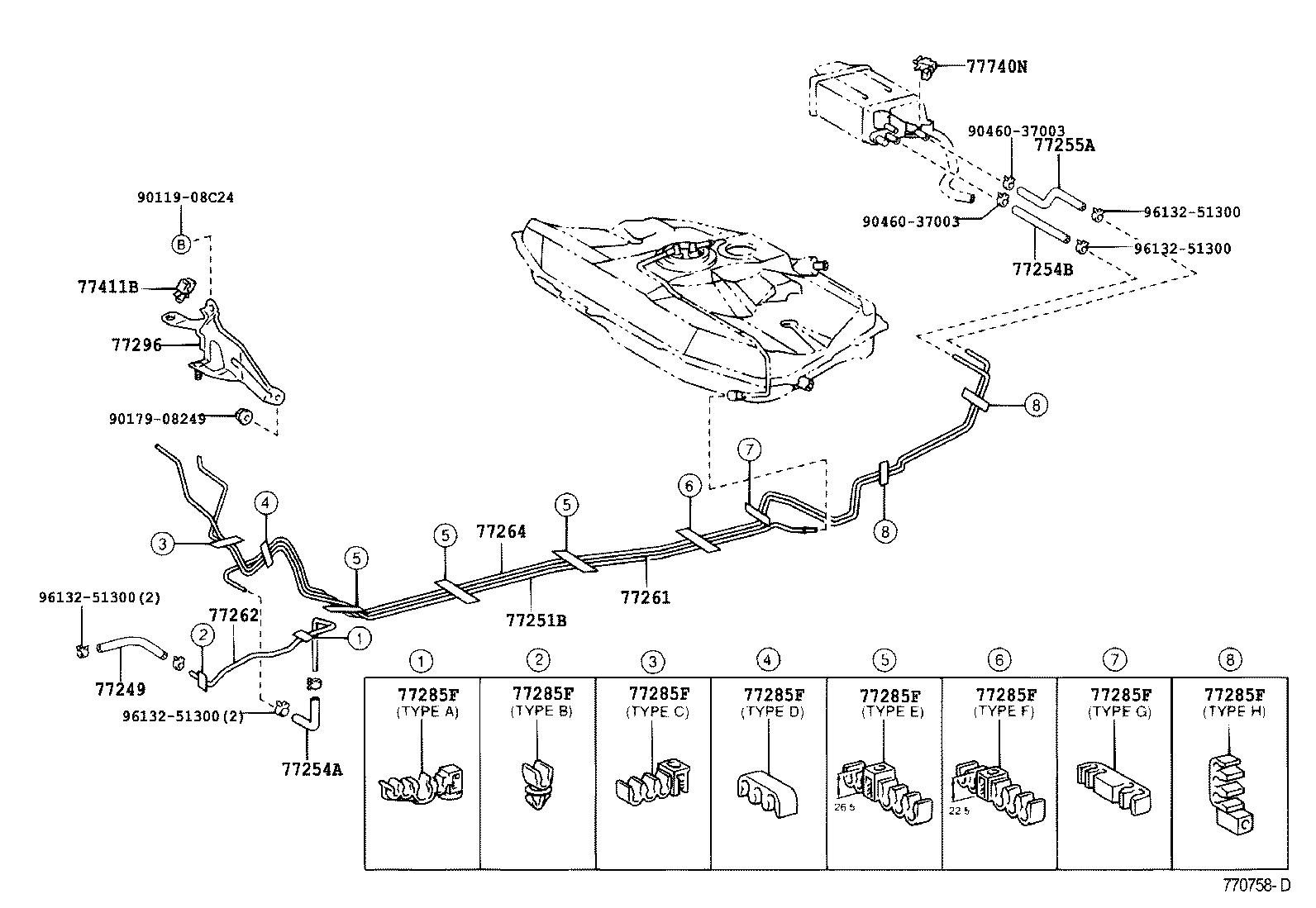

Toyota 77024-17020 PLATE SUB-ASSY, FUEL SUCTION
77024-17020
Part overview:
OEM reference 77024-17020 for PLATE SUB-ASSY, FUEL SUCTION.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77024A |
| Manufacturer Part Number | 77024-17020 |
| Part Description | PLATE SUB-ASSY, FUEL SUCTION |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77024-17020 |
| Catalog | 211430 |
| PNC | 77024A |
| PNC Group | PLATE SUB-ASSY, FUEL SUCTION |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CELICA | 2002.08 - 2005.07 |
ZZT23#
|
252480 |
| MR2 | 2002.08 - 2005.01 |
ZZW30
|
211430 |
| MR2 | 1999.12 - 2002.08 |
ZZW30
|
211430 |
| CELICA | 1999.08 - 2002.08 |
ZZT23#
|
252480 |
Related Parts
| Part Number | Reference |
|---|---|
| 77001-17070 | TANK ASSY, FUEL |
| 77027-17030 | TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 |
| 77035-17070 | CABLE SUB-ASSY, FUEL LID LOCK CONTROL |
| 77035-17071 | CABLE SUB-ASSY, FUEL LID LOCK CONTROL |
| 77113-52020 | PLATE, FUEL TANK SIDE |
| 77113-52030 | PLATE, FUEL TANK SIDE |
| 77168-52010 | PLATE, FUEL TANK VENT TUBE SET |
| 77169-33020 | GASKET, FUEL SUCTION TUBE SET |
| 77175-52020 | SUPPORT, FUEL SUCTION, NO.2 |
| 77177-33010 | GASKET, CHECK VALVE |
| 77201-17130 | PIPE SUB-ASSY, FUEL TANK INLET |
| 77209-17010 | TUBE SUB-ASSY, FUEL TANK MAIN |
Toyota part number 77024-17020 corresponds to PLATE SUB-ASSY, FUEL SUCTION. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
