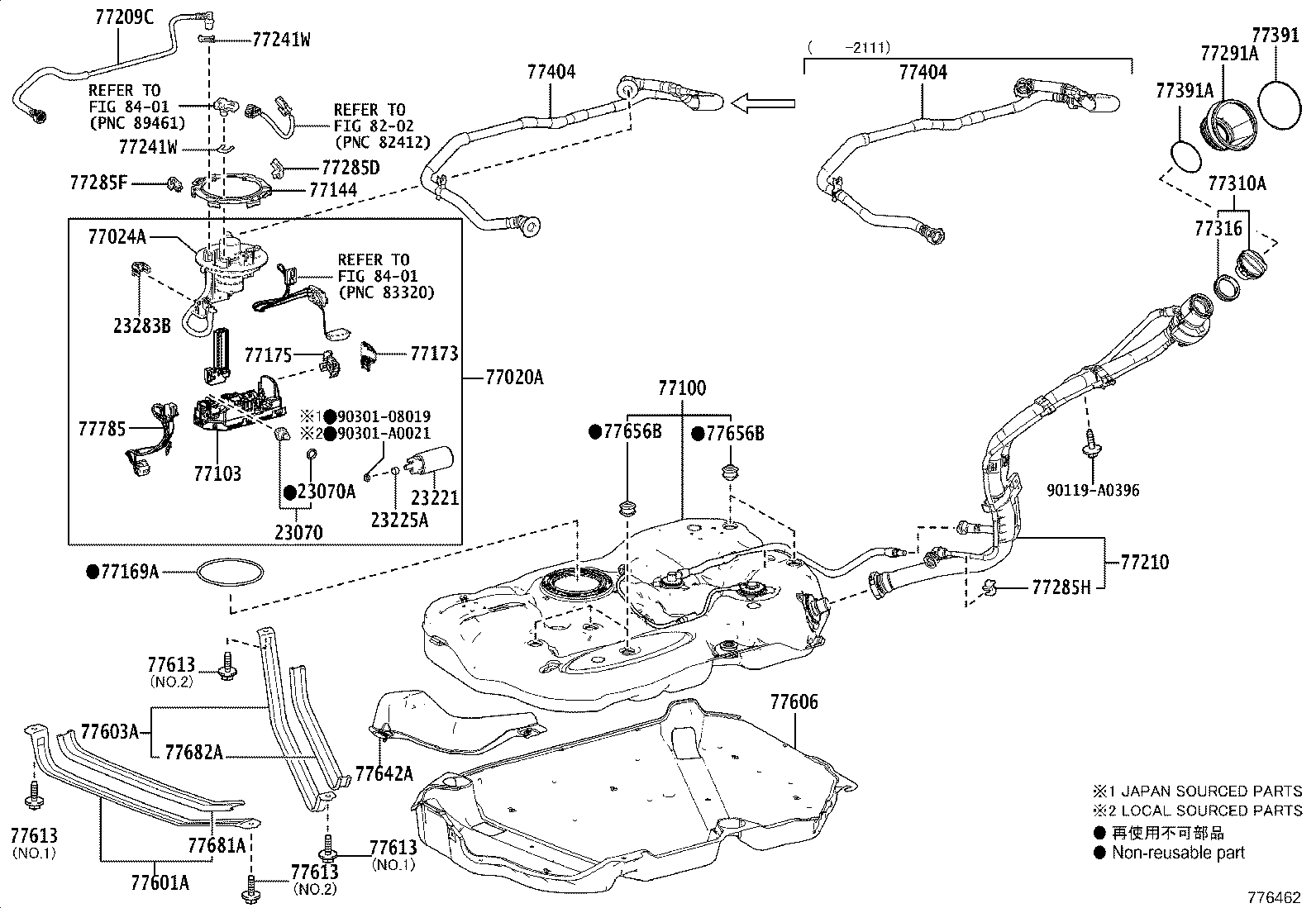

Toyota 77024-0R040 TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT
77024-0R040
Part overview:
OEM reference 77024-0R040 for TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77024 |
| Manufacturer Part Number | 77024-0R040 |
| Part Description | TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77024-0R040 |
| Catalog | 665430 |
| PNC | 77024 |
| PNC Group | TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| RAV4 (NAP) | 2022.11 - |
AXAA54;AXAA52..G,X;AXAA52..M..USA
|
665430 |
| RAV4 (NAP) | 2020.09 - 2022.11 |
AXAA54;AXAA52..G,X;AXAA52..M..USA
|
665430 |
| RAV4 (NAP) | 2020.09 - |
AXAA52..M..CND
|
665430 |
| RAV4 (NAP) | 2018.12 - 2020.09 |
AXAA5#
|
665430 |
Related Parts
| Part Number | Reference |
|---|---|
| 23070-25020 | VALVE ASSY, FUEL MAIN |
| 23221-25030 | PUMP, FUEL |
| 23225-31020 | SPACER, FUEL PUMP |
| 23225-F0010 | SPACER, FUEL PUMP |
| 23283-F0010 | HOLDER, FUEL PRESSURE REGULATOR |
| 77001-0R090 | TANK ASSY, FUEL |
| 77001-0R100 | TANK ASSY, FUEL |
| 77001-0R101 | TANK ASSY, FUEL |
| 77010-0R010 | TUBE ASSY, FUEL TANK VENT |
| 77016-0R020 | TUBE SUB-ASSY, FUEL RETURN VENT |
| 77020-0R050 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
| 77020-0R051 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
Toyota part number 77024-0R040 corresponds to TUBE SUB-ASSY, FUEL MAIN & RETURN, FRONT. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
