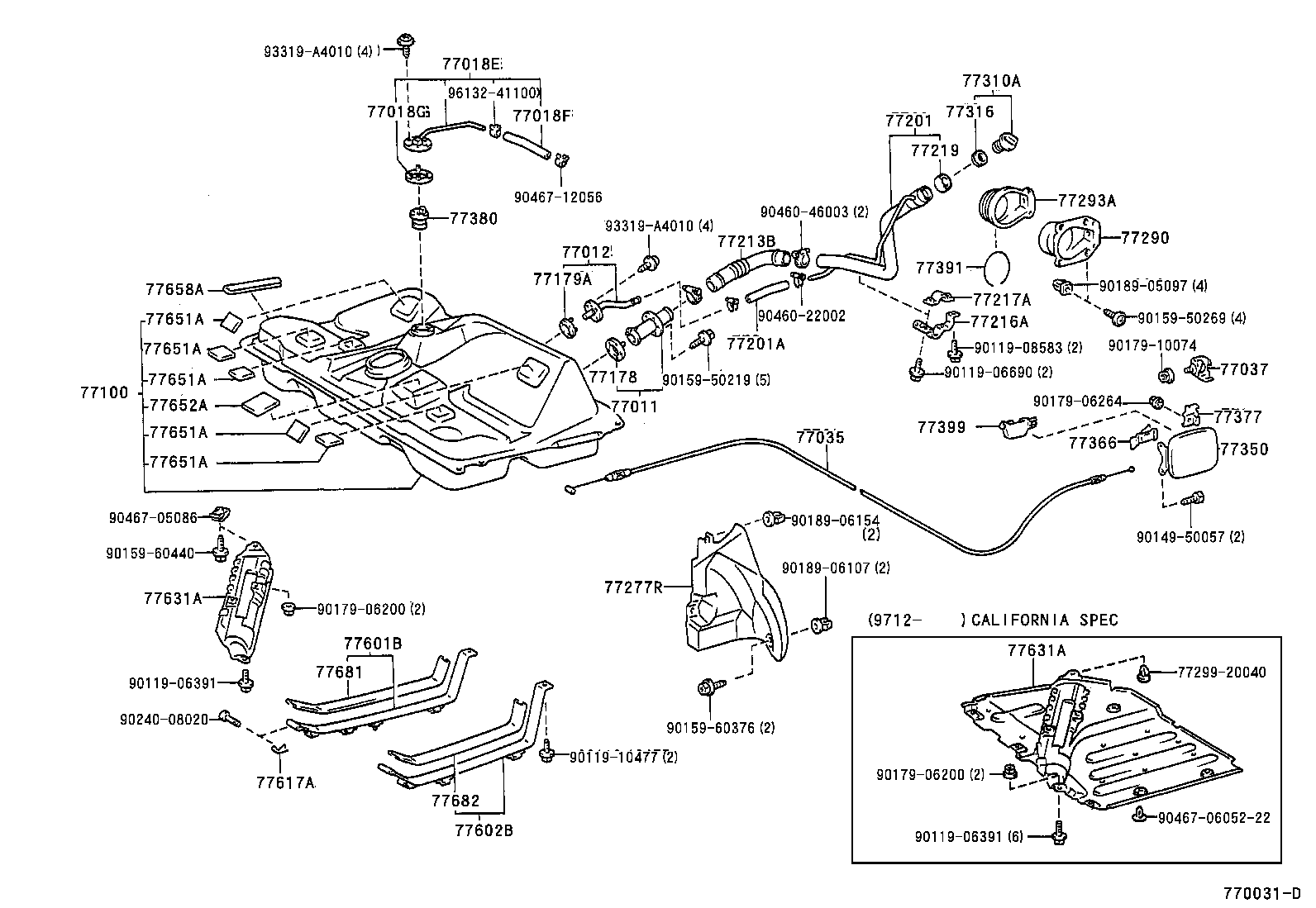

Toyota 77011-20060 PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-20060
Part overview:
OEM reference 77011-20060 for PIPE SUB-ASSY, FUEL TANK FILLER, LOWER.
This page currently lists 2 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77011 |
| Manufacturer Part Number | 77011-20060 |
| Part Description | PIPE SUB-ASSY, FUEL TANK FILLER, LOWER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77011-20060 |
| Catalog | 252470 |
| PNC | 77011 |
| PNC Group | PIPE SUB-ASSY, FUEL TANK FILLER, LOWER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CELICA | 1998.08 - |
ST204..CND
|
252470 |
| CELICA | 1997.12 - |
ST204..USA
CALIFORNIA SPEC
|
252470 |
Related Parts
| Part Number | Reference |
|---|---|
| 23271-74500 | HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) |
| 23271-74680 | HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) |
| 77001-20941 | TANK ASSY, FUEL |
| 77011-20050 | PIPE SUB-ASSY, FUEL TANK FILLER, LOWER |
| 77012-20110 | TUBE SUB-ASSY, FUEL TANK BREATHER |
| 77018-20200 | TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT |
| 77018-20220 | TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT |
| 77035-20470 | CABLE SUB-ASSY, FUEL LID LOCK CONTROL |
| 77037-20070 | LOCK SUB-ASSY, FUEL FILLER OPENING LID |
| 77037-20100 | LOCK SUB-ASSY, FUEL FILLER OPENING LID |
| 77178-20030 | GASKET, FUEL TANK FILLER PIPE, LOWER |
| 77179-20040 | GASKET, FUEL TANK BREATHER TUBE |
Toyota part number 77011-20060 corresponds to PIPE SUB-ASSY, FUEL TANK FILLER, LOWER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
