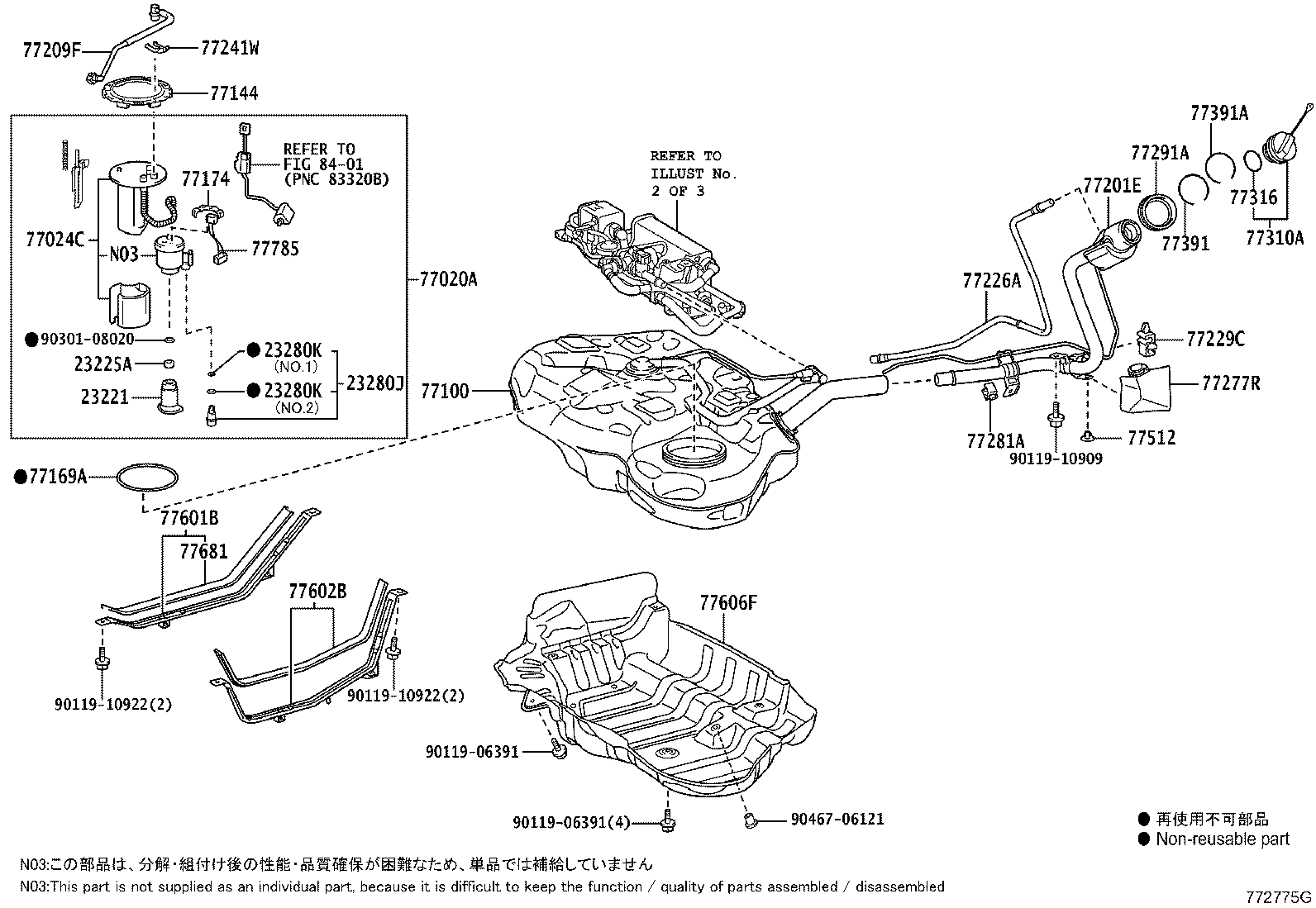

Toyota 77001-47140 TANK ASSY, FUEL
77001-47140
Part overview:
OEM reference 77001-47140 for TANK ASSY, FUEL.
This page currently lists 1 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 77100 |
| Manufacturer Part Number | 77001-47140 |
| Part Description | TANK ASSY, FUEL |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 77001-47140 |
| Catalog | 224410 |
| PNC | 77100 |
| PNC Group | TANK ASSY, FUEL |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| PRIUS(PLUG-IN HBD) | 2009.12 - |
ZVW35
|
224410 |
Related Parts
| Part Number | Reference |
|---|---|
| 23220-47010 | PUMP, FUEL |
| 23225-21020 | SPACER, FUEL PUMP |
| 23280-21010 | REGULATOR ASSY, FUEL PRESSURE |
| 64706-47020-B0 | COVER SUB-ASSY, LUGGAGE COMPARTMENT TRIM, REAR |
| 77020-47080 | TUBE ASSY, FUEL SUCTION W/PUMP & GAGE |
| 77024-47030 | Toyota Genuine Part |
| 77030-47010-B0 | LOCK ASSY, FUEL LID W/MOTOR |
| 77037-47010 | LOCK SUB-ASSY, FUEL FILLER OPENING LID |
| 77144-47040 | RETAINER, FUEL PUMP GAUGE |
| 77169-47040 | GASKET, FUEL SUCTION TUBE SET |
| 77174-75010 | SUPPORT, FUEL SUCTION, NO.1 |
| 77197-21010 | CLAMP, EVAPORATION VENT TUBE, NO.2 |
Toyota part number 77001-47140 corresponds to TANK ASSY, FUEL. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
