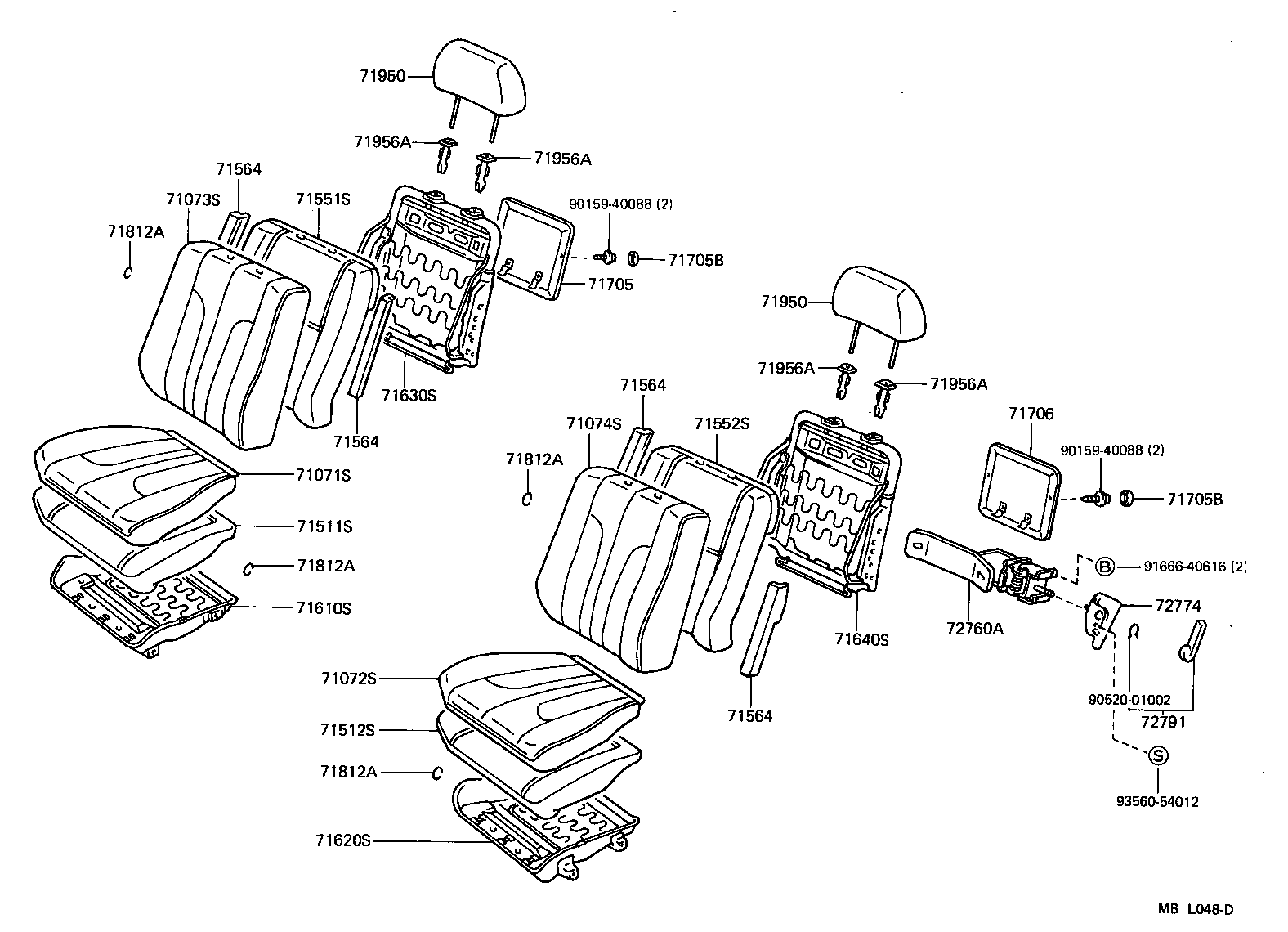

Toyota 71610-32030 SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-32030
Part overview:
OEM reference 71610-32030 for SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE).
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 71610S |
| Manufacturer Part Number | 71610-32030 |
| Part Description | SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 71610-32030 |
| Catalog | 281430 |
| PNC | 71610S |
| PNC Group | SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| CAMRY (JPP) | 1988.08 - 1991.06 |
SV2#,VZV21
SV21..STD
|
281440 |
| CAMRY | 1987.10 - 1988.08 |
SV2#,VZV21
|
281430 |
| CAMRY | 1987.08 - 1988.08 |
SV21..STD
|
281430 |
| CAMRY | 1986.08 - 1987.10 |
SV21
|
281430 |
Related Parts
| Part Number | Reference |
|---|---|
| 71071-32390-02 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32390-03 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32390-04 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32390-05 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32400-02 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32400-03 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32400-04 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32400-05 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32410-02 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32410-03 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32410-04 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
| 71071-32410-05 | COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) |
Toyota part number 71610-32030 corresponds to SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE). Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
