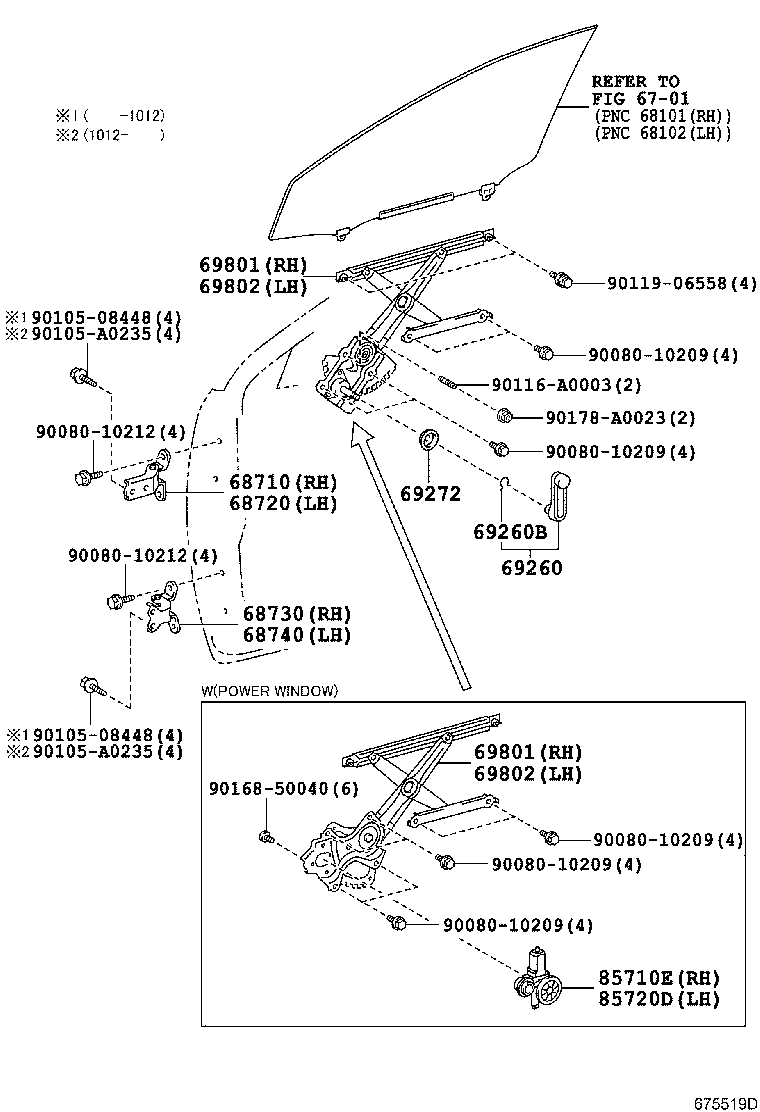

Toyota 69260-01020-B5 HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-01020-B5
Part overview:
OEM reference 69260-01020-B5 for HANDLE ASSY, FRONT DOOR WINDOW REGULATOR.
This page currently lists 9 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 69260 |
| Manufacturer Part Number | 69260-01020-B5 |
| Part Description | HANDLE ASSY, FRONT DOOR WINDOW REGULATOR |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 69260-01020-B5 |
| Catalog | 152460 |
| PNC | 69260 |
| PNC Group | HANDLE ASSY, FRONT DOOR WINDOW REGULATOR |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| MATRIX | 2010.12 - 2013.11 |
ZRE142
DK.GRAY,TRIM1#
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#
|
152460 |
| COROLLA NAP | 2010.12 - 2011.12 |
AZE141,ZRE142..NAP..(S,XRS)
AZE141..NAP
DK.GRAY,TRIM1#
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#
POWER WINDOW-WITH 4DR JAM-PRO AUTO U/D,DK.GRAY,TRIM1#
|
155460 |
| COROLLA NAP | 2008.01 - 2010.12 |
AZE141,ZRE142..NAP..(S,XRS)
AZE141,ZRE142..NAP..(4FC,5F)..(S,XRS)
DK.GRAY,TRIM1#
LEATHER PACKAGE,DK.GRAY,TRIM1#
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#
|
155460 |
| MATRIX | 2008.01 - 2010.12 |
ZRE142
DK.GRAY,TRIM1#
POWER WINDOW-WITH(DRIVER ONE TOUCH DOWN),DK.GRAY,TRIM1#
|
152460 |
| COROLLA/MATRIX (NAP) | 2004.05 - 2008.01 |
ZZE130,131..NAP..S
DK.GRAY,TRIM1#
|
155450 |
| COROLLA/MATRIX (NAP) | 2004.05 - |
ZZE132,133,134..NAP
DK.GRAY,TRIM13,14
|
155450 |
| COROLLA/MATRIX (NAP) | 2002.01 - 2004.05 |
ZZE132,134..NAP;ZZE133..NAP..6F
DK.GRAY,TRIM13,14
|
155450 |
| COROLLA/MATRIX (NAP) | 2002.01 - 2004.05 |
ZZE130..NAP..S
DK.GRAY,TRIM1#
|
155450 |
| COROLLA/MATRIX (NAP) | 2002.01 - 2003.05 |
ZZE133..NAP..4FC
DK.GRAY,TRIM13,14
|
155450 |
Related Parts
| Part Number | Reference |
|---|---|
| 68710-02020 | HINGE ASSY, FRONT DOOR, UPPER RH |
| 68720-02020 | HINGE ASSY, FRONT DOOR, UPPER LH |
| 68730-02080 | HINGE ASSY, FRONT DOOR, LOWER RH |
| 68740-02080 | HINGE ASSY, FRONT DOOR, LOWER LH |
| 69268-12020 | PLATE, FRONT DOOR REGULATOR INSIDE HANDLE |
| 69801-02170 | REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH |
| 69802-02180 | REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH |
| 69810-02350 | REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH |
| 69820-02360 | REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH |
| 85710-AE010 | MOTOR ASSY, POWER WINDOW REGULATOR, RH |
| 85720-AE010 | MOTOR ASSY, POWER WINDOW REGULATOR, LH |
| 90080-52001 | RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE) |
Toyota part number 69260-01020-B5 corresponds to HANDLE ASSY, FRONT DOOR WINDOW REGULATOR. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
