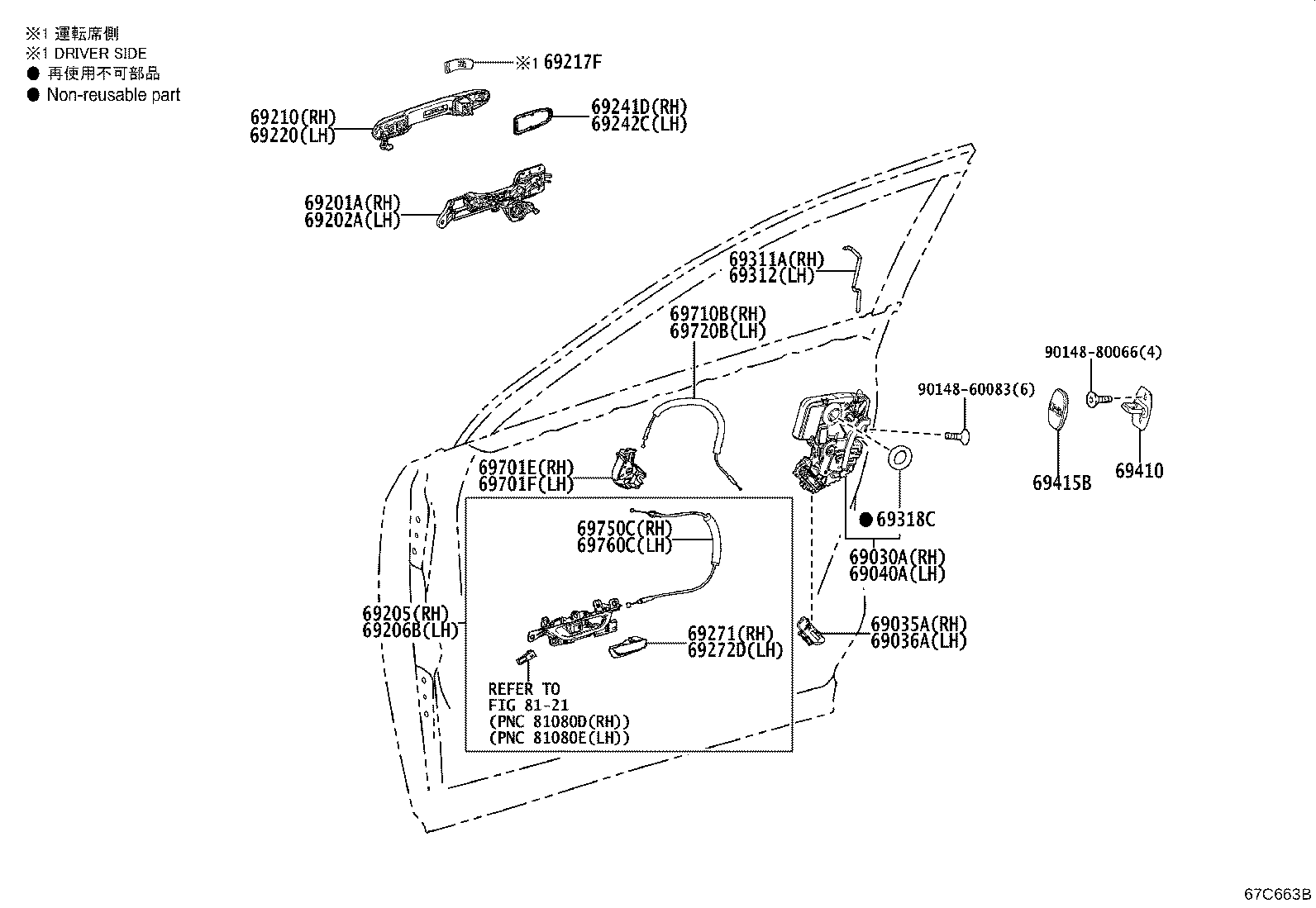

Toyota 69201-78050 FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69201-78050
Part overview:
OEM reference 69201-78050 for FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH.
This page currently lists 8 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 69201A |
| Manufacturer Part Number | 69201-78050 |
| Part Description | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 69201-78050 |
| Catalog | 521460 |
| PNC | 69201A |
| PNC Group | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS NX SERIES(JPP) | 2024.04 - 2025.06 |
AAZA2#
|
527420 |
| LEXUS NX SERIES(JPP) | 2024.04 - |
AAZH2#,TAZA25
|
527420 |
| LEXUS RZ300E/450E | 2023.11 - |
XEBM1#
|
564410 |
| LEXUS RZ300E/450E | 2023.01 - 2023.11 |
XEBM15
|
564410 |
| LEXUS RX SERIES(JPP) | 2022.11 - |
AALH1#,TALA10,TALH17
|
521460 |
| LEXUS RX SERIES(TMMC | 2022.10 - 2024.10 |
AALH15,TALA1#,TALH17
|
523440 |
| LEXUS NX SERIES(TMMC | 2022.03 - 2024.04 |
AAZA2#,AAZH25,TAZA25
|
52E420 |
| LEXUS NX SERIES(JPP) | 2021.11 - 2024.03 |
AAZA2#,AAZH2#,TAZA25
|
527420 |
Related Parts
| Part Number | Reference |
|---|---|
| 69030-78110 | LOCK ASSY, FRONT DOOR W/MOTOR, RH |
| 69035-78010 | COVER SUB-ASSY, FRONT DOOR LOCK, RH |
| 69036-78010 | COVER SUB-ASSY, FRONT DOOR LOCK, LH |
| 69040-78090 | LOCK ASSY, FRONT DOOR W/MOTOR, LH |
| 69070-48011 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH |
| 69070-48031 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH |
| 69070-48120 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH |
| 69080-48011 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH |
| 69080-48031 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH |
| 69080-48110 | HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH |
| 69202-48030 | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH |
| 69202-78050 | FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH |
Toyota part number 69201-78050 corresponds to FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
