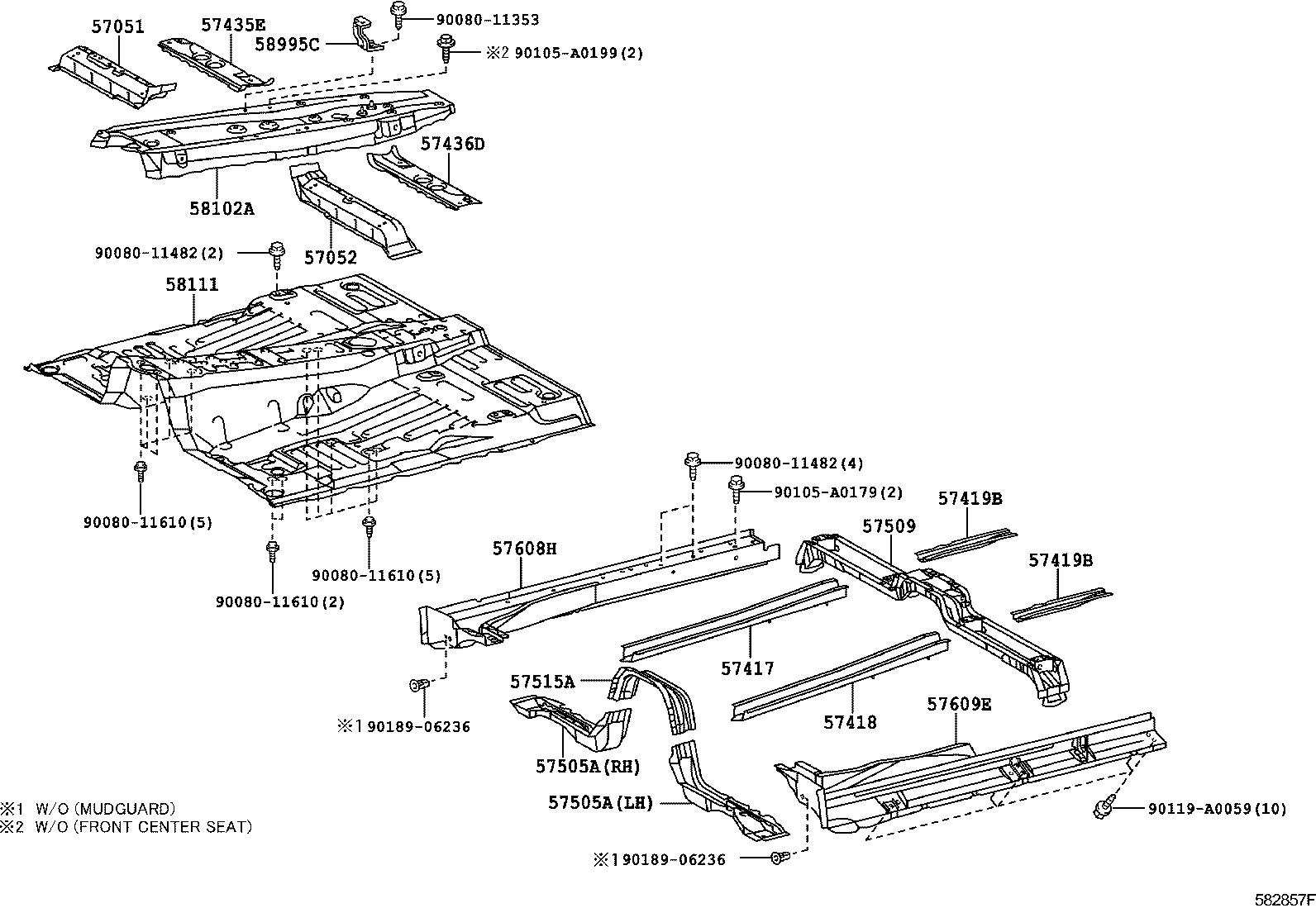

Toyota 57509-0C020 REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-0C020
Part overview:
OEM reference 57509-0C020 for REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER.
This page currently lists 12 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 57509 |
| Manufacturer Part Number | 57509-0C020 |
| Part Description | REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 57509-0C020 |
| Catalog | 841430 |
| PNC | 57509 |
| PNC Group | REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| TUNDRA | 2017.08 - 2019.07 |
UPK5#;USK56,57..HTWCF
|
841430 |
| SEQUOIA | 2017.08 - 2017.09 |
USK65..HTWCF
|
842420 |
| TUNDRA | 2017.08 - |
USK5#..HTWC
|
841430 |
| SEQUOIA | 2017.08 - |
USK6#..HTWC
|
842420 |
| TUNDRA | 2013.08 - 2017.08 |
UPK5#,USK5#
|
841430 |
| TUNDRA | 2013.08 - 2014.09 |
GSK51
|
841430 |
| TUNDRA | 2009.04 - 2013.08 |
UPK51,56..S;GSK5#,UPK50,USK51,52,55,56,57
|
841430 |
| TUNDRA | 2009.04 - 2010.05 |
UPK52,57;UPK51,55,56,USK50..D,L
|
841430 |
| SEQUOIA | 2007.11 - 2017.08 |
USK6#
|
842420 |
| SEQUOIA | 2007.11 - 2012.08 |
UPK6#
|
842420 |
| SEQUOIA | 2007.11 - 2009.04 |
UCK6#
|
842420 |
| TUNDRA | 2006.11 - 2009.04 |
GSK5#,UCK5#,USK5#
|
841430 |
Related Parts
| Part Number | Reference |
|---|---|
| 51718-0C020 | PROTECTOR, STEP COVER, RH |
| 51719-0C020 | PROTECTOR, STEP COVER, LH |
| 51723-0C010 | SPACER, STEP ARM, RH |
| 51724-0C010 | SPACER, STEP ARM, LH |
| 51771-0C020 | PLATE, STEP, RH |
| 51771-0C020 | PLATE, STEP, LH |
| 51771-0C030 | PLATE, STEP, RH |
| 51771-0C030 | PLATE, STEP, LH |
| 51773-0C020 | COVER, STEP PLATE, RH |
| 51773-0C030 | COVER, STEP PLATE, RH |
| 51774-0C020 | COVER, STEP PLATE, LH |
| 51774-0C030 | COVER, STEP PLATE, LH |
Toyota part number 57509-0C020 corresponds to REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
