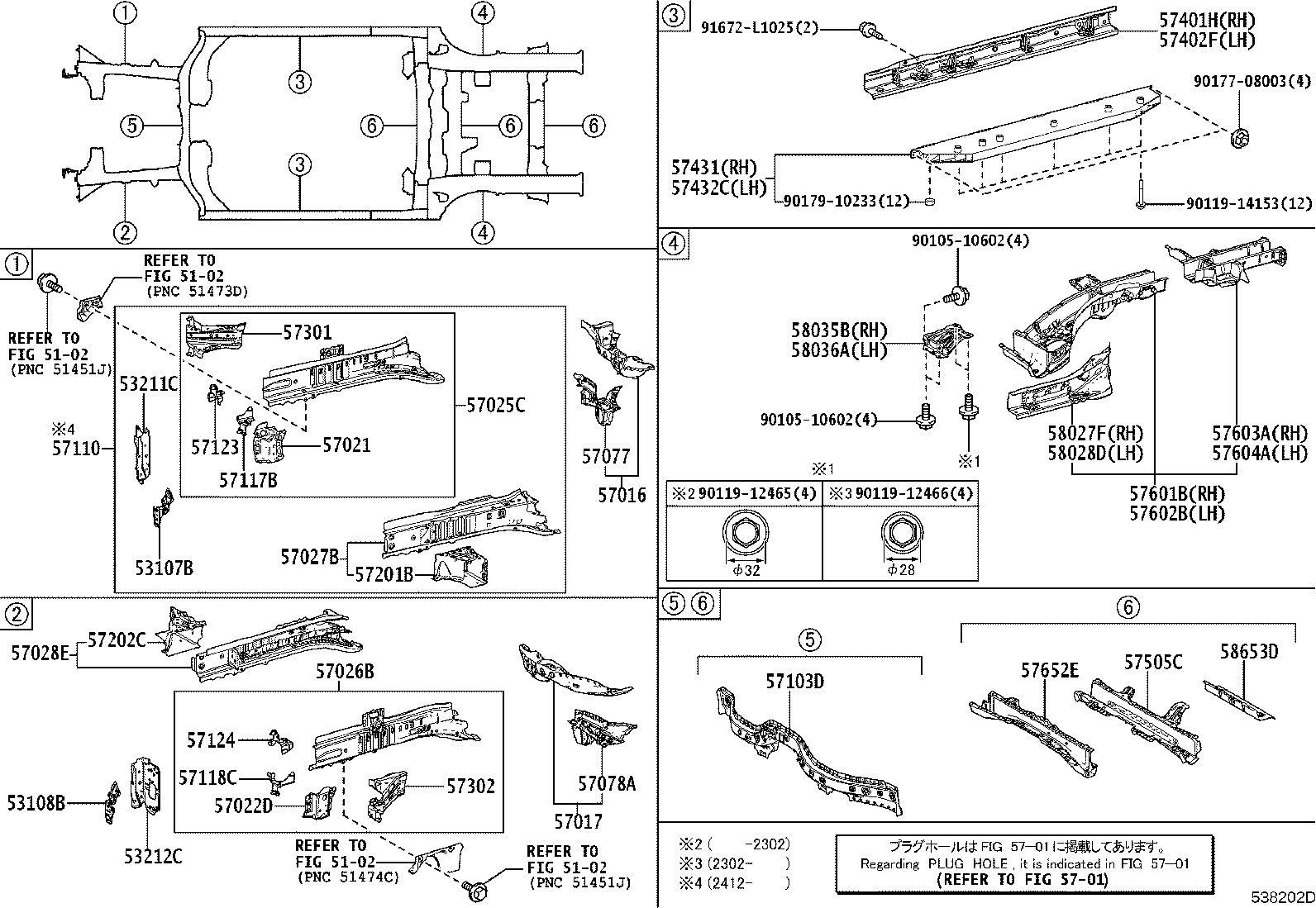

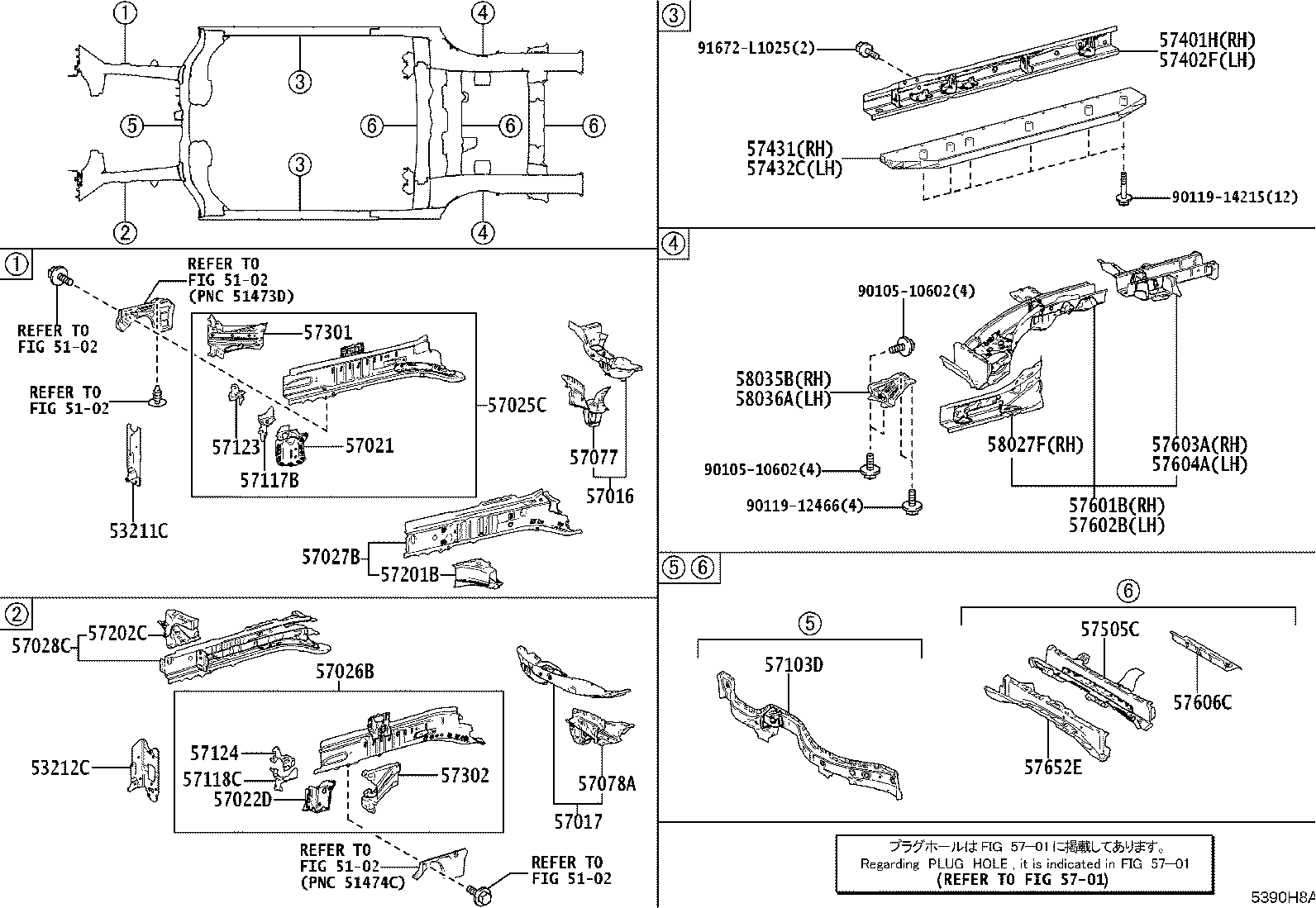

Toyota 53107-42010 BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH
53107-42010
Part overview:
OEM reference 53107-42010 for BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 53107B |
| Manufacturer Part Number | 53107-42010 |
| Part Description | BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 53107-42010 |
| Catalog | 561410 |
| PNC | 53107B |
| PNC Group | BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| BZ4X | 2024.12 - |
XEAM10,YEAM15
|
561410 |
| LEXUS RZ300E/450E | 2023.11 - |
XEBM1#
|
564410 |
| LEXUS RZ300E/450E | 2023.01 - 2023.11 |
XEBM15
|
564410 |
| BZ4X | 2022.03 - 2024.11 |
XEAM10,YEAM15
|
561410 |
Related Parts
| Part Number | Reference |
|---|---|
| 53108-42010 | BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER LH |
| 53211-42080 | SUPPORT, RADIATOR, RH |
| 53212-42080 | SUPPORT, RADIATOR, LH |
| 57016-42060 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH |
| 57016-42061 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH |
| 57017-42060 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH |
| 57017-42061 | REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH |
| 57021-42020 | BRACKET SUB-ASSY, BODY MOUNTING, NO.1 RH |
| 57022-42020 | BRACKET SUB-ASSY, BODY MOUNTING, LH |
| 57025-42040 | MEMBER SUB-ASSY, FRONT SIDE, OUTER RH |
| 57025-42041 | MEMBER SUB-ASSY, FRONT SIDE, OUTER RH |
| 57026-42040 | MEMBER SUB-ASSY, FRONT SIDE, OUTER LH |
Toyota part number 53107-42010 corresponds to BRACKET SUB-ASSY, RADIATOR GRILLE, LOWER RH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
