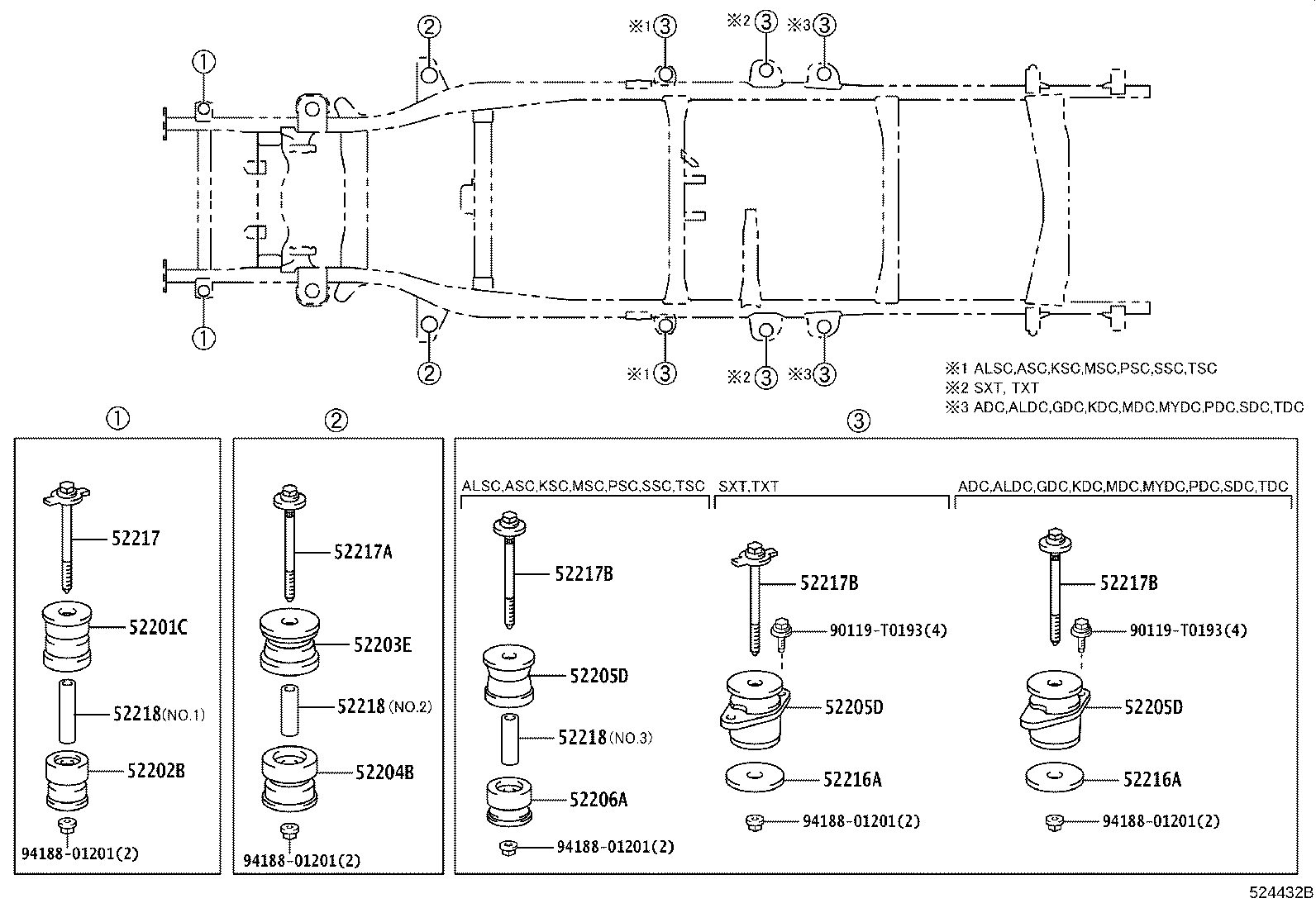

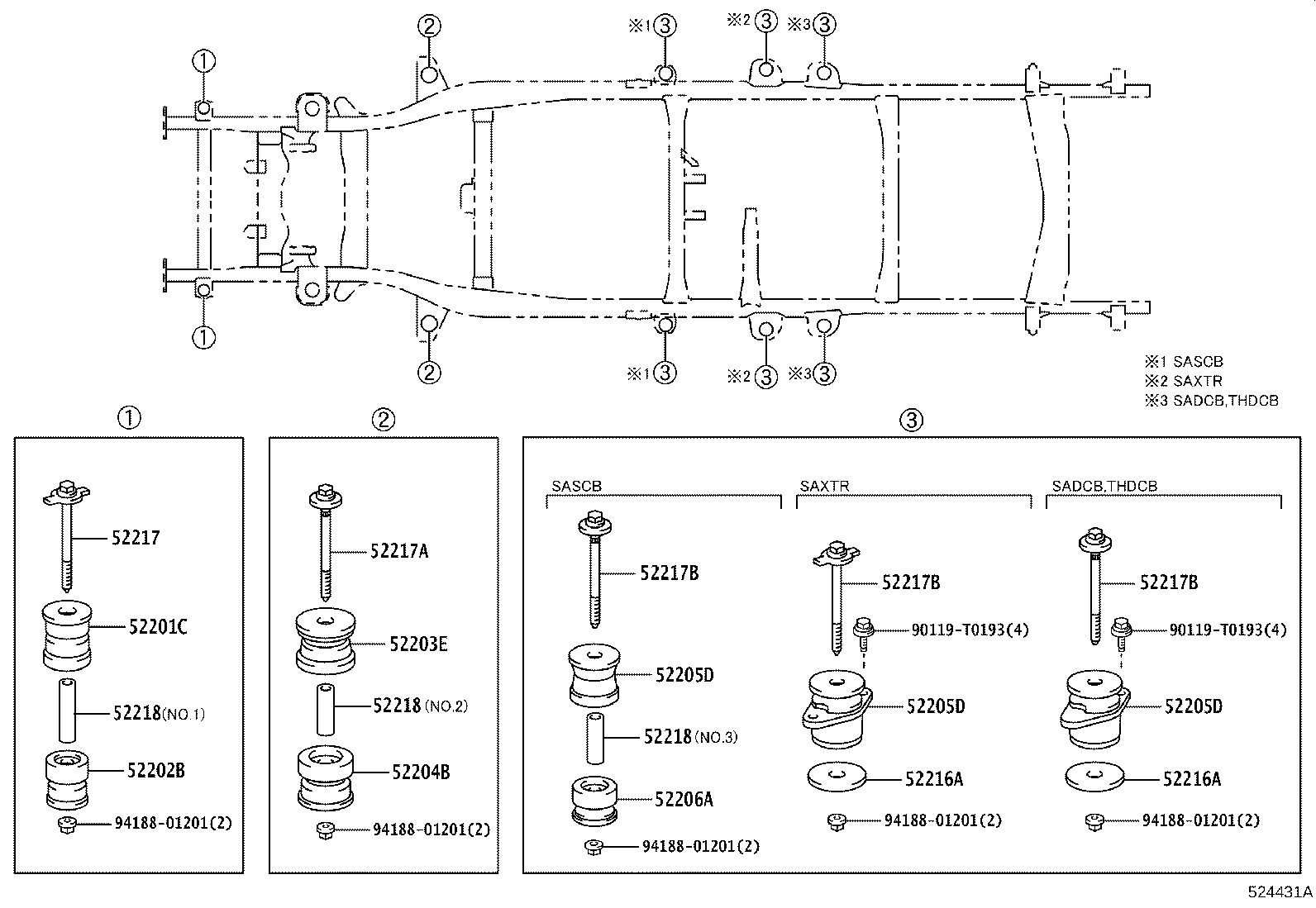

Toyota 52203-0K150 CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-0K150
Part overview:
OEM reference 52203-0K150 for CUSHION SUB-ASSY, CAB MOUNTING, NO.2.
This page currently lists 32 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 52203E |
| Manufacturer Part Number | 52203-0K150 |
| Part Description | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 |
| Condition | New |
| Quantity Per Vehicle | 2 |
| SKU | 52203-0K150 |
| Catalog | 6723A0 |
| PNC | 52203E |
| PNC Group | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| HILUX (DOUBLE CAB) | 2024.08 - 2024.11 |
GUN136..6F..ARL;GUN126..H..DCRL..IV3
|
6733E0 |
| HILUX (SCB/XTR) | 2024.08 - |
GUN125,126,13#..XTR
|
6723E0 |
| HILUX (DOUBLE CAB) | 2024.08 - |
GUN126..CBU;GUN136..6FC;GUN136..6F..H;GUN126..S..IV3;GUN126..H..MHV..IV3;GGN125,GU
N125,135,LAN125,TGN126,136
|
6733E0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.12 |
GUN125,126..GHA,KEN
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.10 |
GUN125,126,13#..XTR..SA
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.10 |
GGN125,GUN125,126,13#,LAN125,TGN126,136..AGTP,SAP
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.09 |
GUN126..IND,MMR
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.08 |
GUN125,126..CAMP,MAP
|
6733D0 |
| HILUX (SCB/XTR) | 2023.08 - 2024.07 |
GUN125,126,13#..XTR..THP
|
6723D0 |
| HILUX (DOUBLE CAB) | 2023.08 - 2024.07 |
GUN126..MHV..(ARL,GCC,LA);TGN126..THP..(GCC,GEN,LA);GGN125,GUN125,126,13#,TGN136..
THP..(DCRL,HTWC)
|
6733D0 |
| HILUX (DOUBLE CAB) | 2023.08 - |
GUN126..PKN;GUN126..MHV..GEN
|
6733D0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.03 |
GUN125,126..GHA,KEN
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2024.01 |
GUN125,126,13#..XTR..SA
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2024.01 |
GGN125,GUN125,126,13#,LAN125,TGN126,136..SA
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.10 |
GGN125,GUN125,126,13#,TGN126,136..AGTP
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.09 |
GUN126..IND,MMR
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.08 |
GUN125,126..MA
|
6733C0 |
| HILUX (SCB/XTR) | 2022.08 - 2023.07 |
GUN125,126,13#..XTR..THP
|
6723C0 |
| HILUX (DOUBLE CAB) | 2022.08 - 2023.07 |
GGN125,GUN125,126,13#,TGN126,136..THP
|
6733C0 |
| HILUX (DOUBLE CAB) | 2022.08 - |
GUN126..PKN
|
6733C0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.03 |
GGN125,GUN125,126,13#,LAN125,TGN126,136..GHA,KEN,MMR,SA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2023.01 |
GUN125,126,13#..XTR..SA
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2023.01 |
GUN126..PKN
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.10 |
GGN125,GUN125,126,13#,TGN126,128,13#..AGTP
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.09 |
GUN126..IND
|
6733B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.08 |
GUN125,126..MA
|
6733B0 |
| HILUX (SCB/XTR) | 2021.08 - 2022.07 |
GUN125,126,13#..XTR..THP
|
6723B0 |
| HILUX (DOUBLE CAB) | 2021.08 - 2022.07 |
GGN125,GUN125,126,13#,TGN126,136..THP
|
6733B0 |
| HILUX | 2020.06 - 2023.01 |
GGN125,GUN125,126,13#,LAN125,TGN126,136..KD,MD,MMD,SD,SX,TD,TX
|
6723A0 |
| HILUX | 2020.06 - 2022.01 |
GUN126..PD
|
6723A0 |
| HILUX | 2020.06 - 2021.11 |
GUN125,126..GHA
|
6723A0 |
| HILUX | 2020.06 - 2021.10 |
GGN125,GUN125,126,13#,TGN126,128,13#..AD
|
6723A0 |
Related Parts
| Part Number | Reference |
|---|---|
| 52201-0K100 | CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER |
| 52202-0K100 | CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER |
| 52203-0K120 | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 |
| 52204-0K120 | CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER |
| 52205-0K110 | CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER |
| 52205-0K150 | CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER |
| 52205-0K161 | CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER |
| 52206-0K080 | CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER |
| 52206-0K101 | CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER |
| 52216-0K010 | STOPPER, CAB MOUNTING CUSHION |
| 52217-0K010 | BOLT, BODY MOUNTING |
| 52217-0K020 | BOLT, BODY MOUNTING |
Toyota part number 52203-0K150 corresponds to CUSHION SUB-ASSY, CAB MOUNTING, NO.2. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
