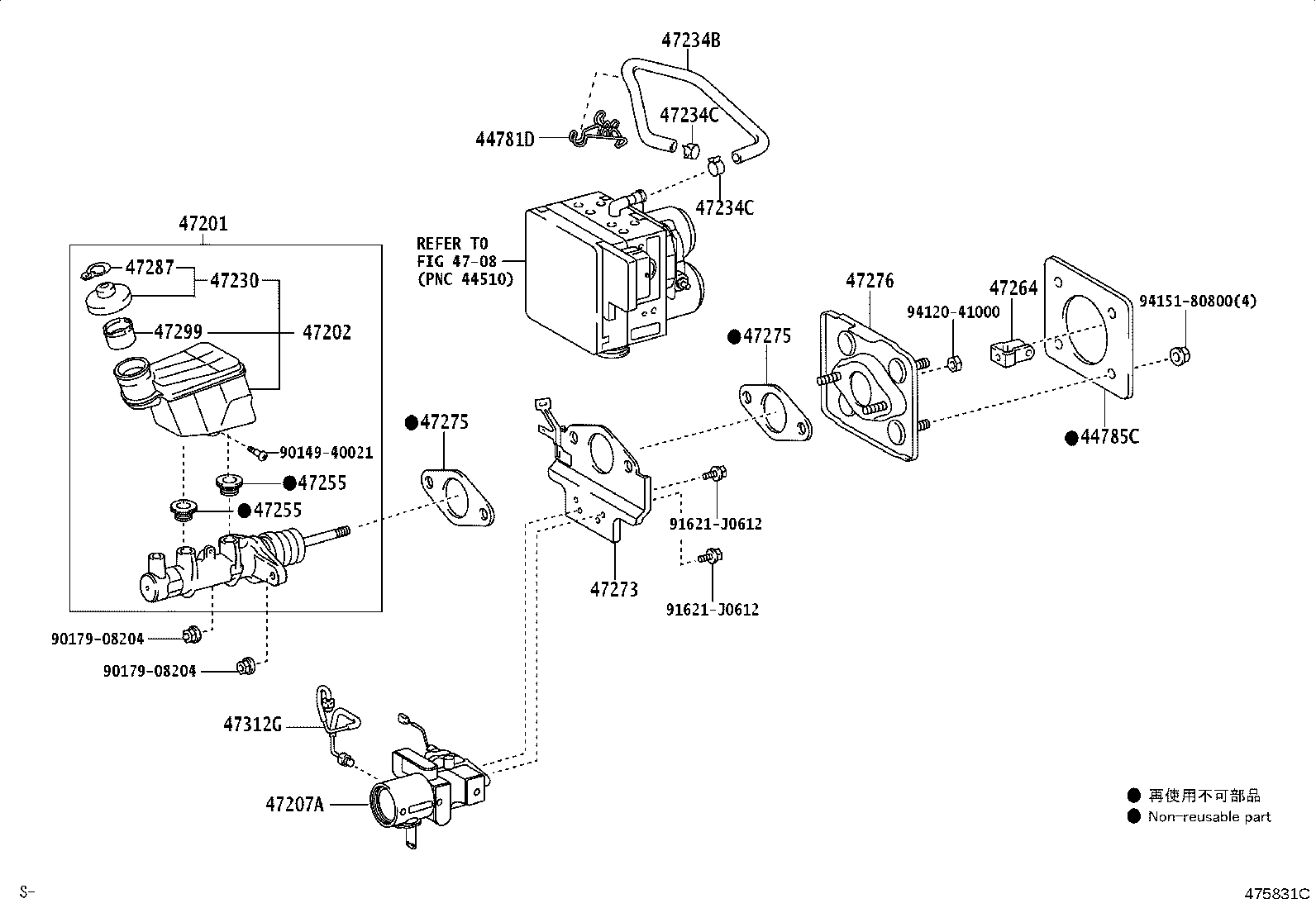

Toyota 47220-30200 RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-30200
Part overview:
OEM reference 47220-30200 for RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47202 |
| Manufacturer Part Number | 47220-30200 |
| Part Description | RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 47220-30200 |
| Catalog | 3324A0 |
| PNC | 47202 |
| PNC Group | RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LEXUS GS SERIES | 2007.09 - |
URS190
|
3324A0 |
| LEXUS GS450H | 2007.09 - |
GWS191
|
334410 |
| LEXUS GS450H | 2006.02 - 2007.09 |
GWS191
|
334410 |
| LEXUS GS SERIES | 2005.01 - 2007.09 |
UZS190
|
3324A0 |
Related Parts
| Part Number | Reference |
|---|---|
| 44255-30090 | TUBE, BRAKE STROKE SIMULATOR |
| 44255-30120 | TUBE, BRAKE STROKE SIMULATOR |
| 44781-30030 | BRACKET, RESERVOIR HOSE |
| 44785-47010 | GASKET, BRAKE BOOSTER |
| 47028-30030 | CYLINDER SUB-ASSY, BRAKE MASTER W/PLATE |
| 47201-30770 | CYLINDER SUB-ASSY, BRAKE MASTER |
| 47207-30040 | CYLINDER SUB-ASSY, BRAKE STROKE SIMULATOR |
| 47220-30180 | RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER |
| 47230-20140 | CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER |
| 47234-30020 | TUBE, RESERVOIR, NO.1 |
| 47255-16010 | GROMMET, MASTER CYLINDER RESERVOIR |
| 47264-42010 | CLEVIS, MASTER CYLINDER PUSH ROD |
Toyota part number 47220-30200 corresponds to RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
