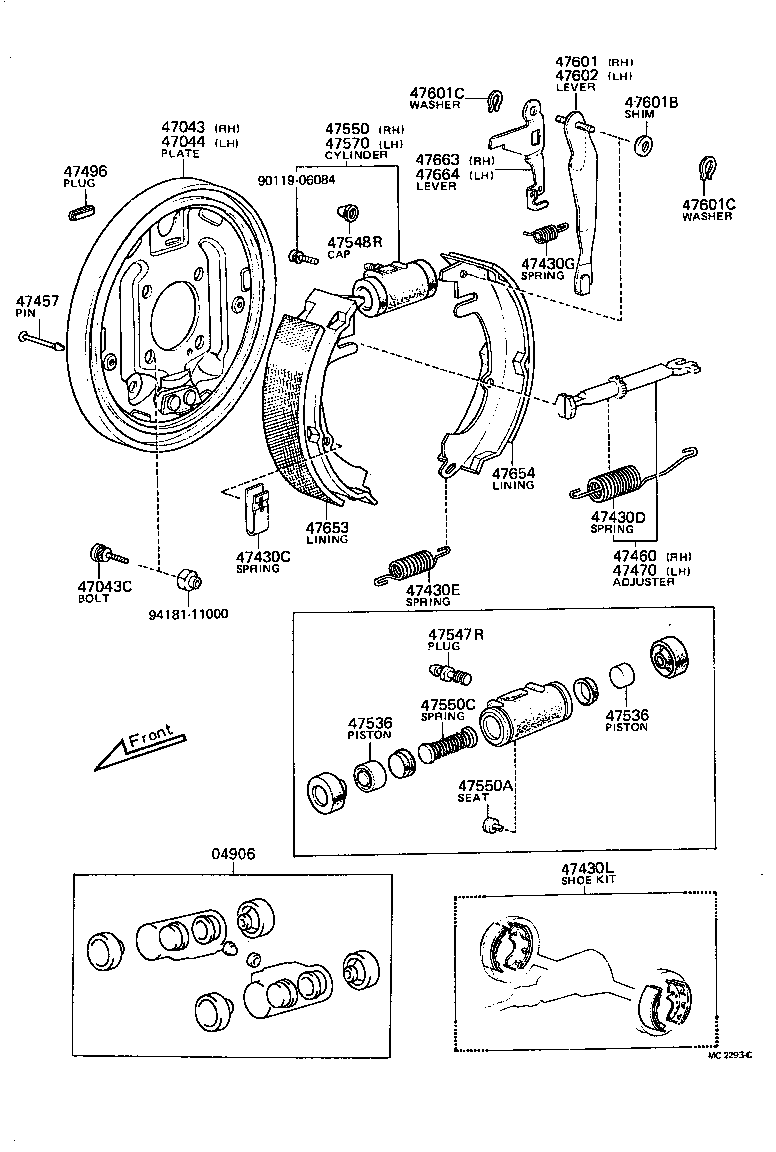

Toyota 47044-13010 PLATE SUB-ASSY, BRAKE BACKING, REAR LH
47044-13010
Part overview:
OEM reference 47044-13010 for PLATE SUB-ASSY, BRAKE BACKING, REAR LH.
This page currently lists 4 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 47044 |
| Manufacturer Part Number | 47044-13010 |
| Part Description | PLATE SUB-ASSY, BRAKE BACKING, REAR LH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 47044-13010 |
| Catalog | 161430 |
| PNC | 47044 |
| PNC Group | PLATE SUB-ASSY, BRAKE BACKING, REAR LH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| COROLLA | 1979.08 - 1983.07 |
AE71,TE72..WG
|
191410 |
| COROLLA | 1979.03 - 1979.08 |
TE31,38,51..DLX,SPL
|
161430 |
| COROLLA | 1977.07 - 1979.03 |
TE3#..DLX,SPL,STD
|
161430 |
| COROLLA | 1974.08 - 1977.07 |
TE38
|
161430 |
Related Parts
| Part Number | Reference |
|---|---|
| 04495-12060 | SHOE KIT, REAR BRAKE |
| 04495-12070 | SHOE KIT, REAR BRAKE |
| 04906-12040 | CUP KIT, REAR WHEEL CYLINDER |
| 31478-30010 | CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) |
| 42184-22011 | BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 42184-22020 | BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) |
| 47043-12010 | PLATE SUB-ASSY, BRAKE BACKING, REAR RH |
| 47043-13010 | PLATE SUB-ASSY, BRAKE BACKING, REAR RH |
| 47043-14011 | PLATE SUB-ASSY, BRAKE BACKING, REAR RH |
| 47043-20050 | PLATE SUB-ASSY, BRAKE BACKING, REAR RH |
| 47044-12010 | PLATE SUB-ASSY, BRAKE BACKING, REAR LH |
| 47044-14011 | PLATE SUB-ASSY, BRAKE BACKING, REAR LH |
Toyota part number 47044-13010 corresponds to PLATE SUB-ASSY, BRAKE BACKING, REAR LH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
