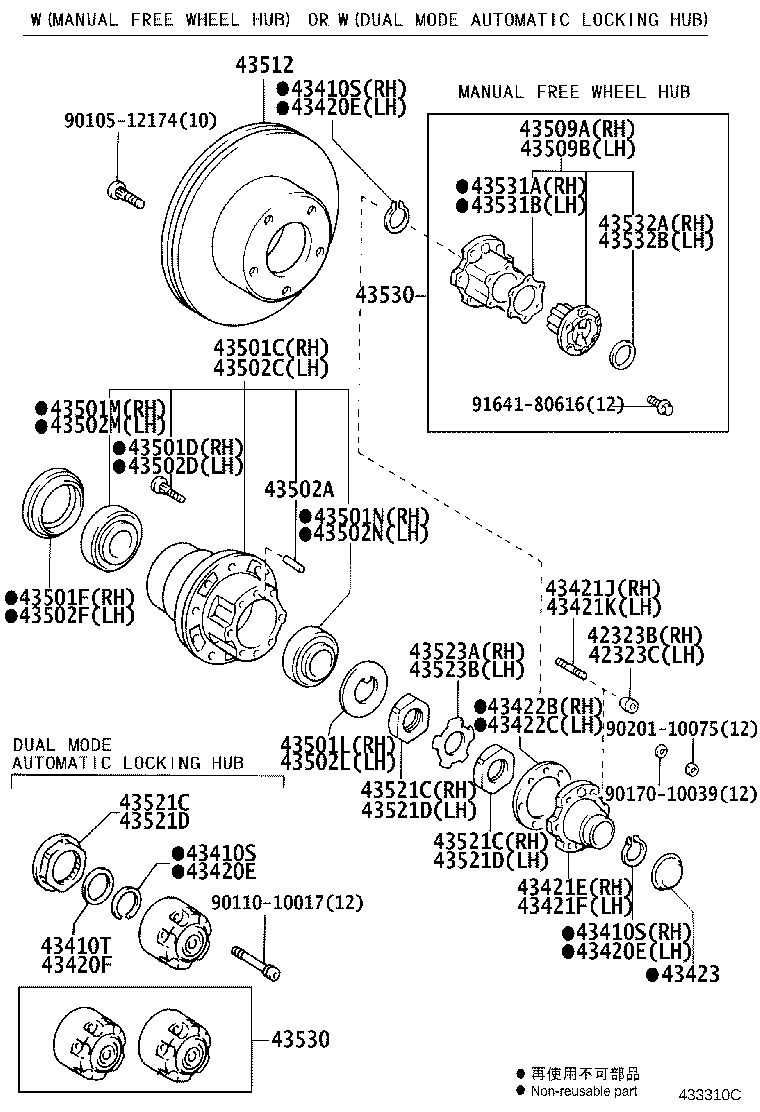

Toyota 43502-69087 HUB SUB-ASSY, FRONT AXLE, RH
43502-69087
Part overview:
OEM reference 43502-69087 for HUB SUB-ASSY, FRONT AXLE, RH.
This page currently lists 7 fitment groups.
Use the catalog link and vehicle fitment table below to confirm application details.
Toyota & Lexus Parts Specialist
Based in China | Wholesale / B2B
NeoZeroAuto supplies Toyota and Lexus replacement parts with fitment-reference support.
- OEM-quality replacement parts
- Wholesale supply for distributors
- Worldwide shipping support
Send the part number and quantity to receive a quotation.
Contact Us for Quote
Request a Quote
Chat on WhatsApp
Email: [email protected]
Specifications
| Brand | NeoZeroAuto |
| Part Name Code | 43501C |
| Manufacturer Part Number | 43502-69087 |
| Part Description | HUB SUB-ASSY, FRONT AXLE, RH |
| Condition | New |
| Quantity Per Vehicle | 1 |
| SKU | 43502-69087 |
| Catalog | 781370 |
| PNC | 43501C |
| PNC Group | HUB SUB-ASSY, FRONT AXLE, RH |
Vehicle Fitment
| Model Name | Fr-To | Model Description | Catalog |
|---|---|---|---|
| LAND CRUISER | 2023.09 - |
GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..GEN
|
781370 |
| LAND CRUISER | 2016.08 - 2023.09 |
GRJ79..LHD..GEN;GRJ71,76,78,HZJ7#..GEN
|
781370 |
| LAND CRUISER | 2016.08 - 2020.11 |
HZJ79..RHD
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK&FREE WHEEL HUB-WITH(D-AL
H)
|
781370 |
| LAND CRUISER | 2016.08 - 2017.01 |
GRJ7#..GCC
|
781370 |
| LAND CRUISER | 2016.08 - 2016.12 |
HZJ76,78,79..GCC
|
781370 |
| LAND CRUISER | 2012.08 - 2016.08 |
HZJ7#;GRJ7#..LHD
HZJ79..RHD..DCB
SOUTH AFRICA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK&REAR W
SOUTH AFRICA SPEC&REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK&FREE W
HEEL BRAKE-DISC FS14 18V
HEEL HUB-WITH(MECHANICAL)&REAR WHEEL BRAKE-DISC FS14 18V
|
781370 |
| LAND CRUISER | 2012.08 - 2014.08 |
GRJ79..RHD
GRJ79..RHD..PIC
HZJ79..RHD..PIC
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK
REAR DIFFERENTIAL-FINAL GEAR RATIO = 4.100, 4P, DIFF LOCK&FREE WHEEL HUB-WITH(D-AL
H)
|
781370 |
Related Parts
| Part Number | Reference |
|---|---|
| 42323-60030 | WASHER, CONE (FOR FRONT AXLE SHAFT RH) |
| 42323-60030 | WASHER, CONE (FOR FRONT AXLE SHAFT LH) |
| 43421-60030 | FLANGE, FRONT AXLE OUTER SHAFT, RH |
| 43421-60030 | FLANGE, FRONT AXLE OUTER SHAFT, LH |
| 43421-60060 | FLANGE, FRONT AXLE OUTER SHAFT, RH |
| 43421-60060 | FLANGE, FRONT AXLE OUTER SHAFT, LH |
| 43422-60070 | GASKET, FRONT AXLE OUTER SHAFT FLANGE, RH |
| 43422-60070 | GASKET, FRONT AXLE OUTER SHAFT FLANGE, LH |
| 43423-35010 | CAP, FRONT AXLE OUTER SHAFT FLANGE |
| 43502-69085 | HUB SUB-ASSY, FRONT AXLE, RH |
| 43502-69085 | HUB SUB-ASSY, FRONT AXLE, LH |
| 43502-69086 | HUB SUB-ASSY, FRONT AXLE, RH |
Toyota part number 43502-69087 corresponds to HUB SUB-ASSY, FRONT AXLE, RH. Use the fitment table, catalog reference, and PNC group information above to confirm compatibility.
For higher accuracy, verify by VIN, production date, market, and detailed vehicle configuration before ordering or quoting.
